Ashly NXP Series 4-Channel 150W Networkable Multi-Mode Power Amplifier with Protea DSP Software Suite

SKU: ASNXP1504 MFR: NXP1504
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this power amplifier's low distortion output.
  • Achieve optimal sound with impedance matching, ensuring peak performance for your speakers.
  • This multi-mode amplifier delivers 150W per channel, perfect for installations and live sound.
  • Rely on the signal-to-noise ratio for pristine audio, free from unwanted background noise.
  • Utilize the Protea DSP software suite for precise audio shaping and customized soundscapes.
  • Benefit from reliable protection features, safeguarding your amplifier and connected speakers.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ashly NXP1504 Specifications

  • Channels

    4

  • Max output power

    2 Ohms: 150W
    4 Ohms: 150W
    8 Ohms: 150W
    Low Impedance Output Mode, All Channels Driven at Rated Load

  • Low Impedance Output Mode, Bridged O/P

    4 Ohms: 300W
    8 Ohms: 300W
    All Channels Driven at Rated Load

  • Constant Voltage Output Mode

    25V (per channel): 150W
    70V (per channel): 150W
    100V (per channel): 150W
    All Channels Driven at Rated Load

  • Total AC Mains Power Draw

    Sleep Mode: <1W
    Standby Mode: 15W
    Idle (no signal): 33W
    1/8 Max Power at 2 Ohms: 133W
    Typical input, all channels driven, 120VAC

  • Current Draw

    Sleep Mode: 94mA
    Standby Mode: 0.2A
    Idle (no input signal): 0..35A
    1/8 Max Power at 2 Ohms: 1.16A
    Typical Input, Total for all Channels, 120VAC, Divide by 2 for 240VAC

  • Thermal Dissipation

    Sleep mode: 2.14BTU/hr
    Standby mode: 51BTU/hr
    Idle (no input signal): 112BTU/hr
    1/8 Max Power at 2 Ohms: 325BTU/hr
    Typical Input, Total for all Channels

  • Voltage Gain

    Selectable at 26dB, 32dB, 38dB, or 1.4V

  • Damping Factor

    >250 (8 Ohms load <1kHz)

  • Input High Pass Filter

    80Hz 2nd order

  • Distortion (SMPTE, typical)

    <0.5%

  • Distortion (THD-N, typical)

    <0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)

  • Channel Separation

    -75dB (dB from full output, 1kHz)

  • Signal-to-Noise 20Hz-20kHz, Gain at 26dB

    Unweighted: >99dB

  • Frequency Response

    20Hz-20kHz, +/-0.05dB

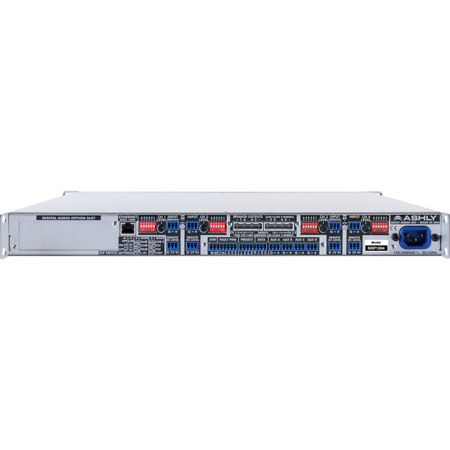

  • Balanced Input Connector

    Euroblock 3.5mm

  • Input Impedance

    10k Ohms

  • Maximum Input Level

    +21dBu

  • Speaker Output Connector

    Euroblock 7.62mm

  • Control Network

    RJ-45 connector, 100MB Ethernet

  • AUX Output Connector

    Balanced Euroblock 3.5mm

  • AUX Output Maximum Level

    +21dBu

  • Remote Standby Contact Closure

    Euroblock 3.5mm, close contact pin to ground (G) for standby mode

  • Preset Recall Contact Closure

    Euroblock 3.5mm, close contact to ground (G) for preset 1-4 recall

  • Data Connection

    Euroblock 3.5mm - Gnd, +18V, Data Out, Data In

  • Fault Condition Logic Outputs

    Euroblock 3.5mm - fault indicated by loss of 1Hz "heartbeat" pulse signal

  • Remote DC Level Control

    Euroblock 3.5mm - Gnd, CV, V+ per input

  • Attenuators (per channel)

    Rear panel, software, offset link group, remote control. Fully off = Mute

  • Amplifier Protection

    Shorted output power limiting, over-temperature, DC-output, power-supply fault, mains-fuses & inrush-current limiting

  • Cooling

    continuously variable temperature controlled fan

  • Environmental

    32 to 120 deg. F (0 to 49 deg. C) non-condensing

  • Nominal Voltage Input

    100 - 240VAC

  • Operating Range

    70 - 270VAC

  • Minimum power-up

    70VAC

  • Power Supply Type

    SMPS with active PFC (Power Factor Correction)

  • AC Mains Line Cord Connector

    Detachable Nema 5-15 for USA (May vary for export)

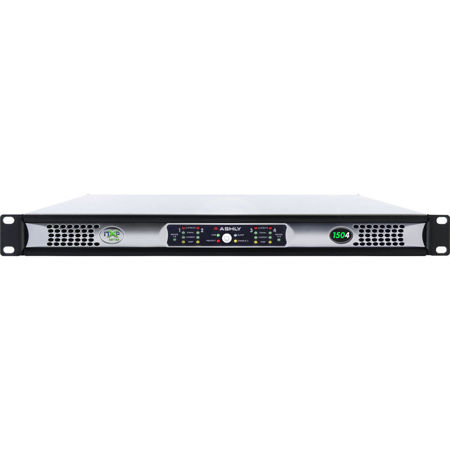

  • Front Panel LED Indicators

    POWER (white): Switch: On, Off, Standby (flashing)
    PROTECT (red): On (fault condition or shut down), Of
    SLEEP (blue): On, amplifier is asleep from audio inactivity
    DISABLE (yellow): On, power switch & attenuators are disabled
    COM (green): On, for Ethernet data or Device ID

  • Front Panel LED Indicators: Per Channel

    CLIP/MUTE (red): Clip at 1dB below rated output / Mute
    SIGNAL (green): -18dB below rated output
    CURRENT (green): Brightness is proportional to output current
    TEMP (yellow): On dim at 90% max operating temperature, On full bright + protect at 100%
    BRIDGE (green): Per Channel Pair, On, Off

  • Dimensions (WxHxD)

    19 x 17.5 x 14.54" (48.26 x 44.45 x 36.93cm)

  • Weight

    13.1 lbs (5.94kg)

About Ashly NXP1504

Under the umbrella of advanced audio equipment, the NXP Series 4-Channel 150W Networkable Multi-Mode Power Amplifier with Protea DSP Software Suite stands out as a powerful, high-quality, and efficient solution for demanding live sound and fixed installation sound systems. This durable amplifier is ideal for large-scale applications in stadiums, arenas, performance venues, worship spaces, and convention centers.

The NXP Series Amplifier boasts a selectable 80Hz 2nd-order Hi-pass filter, limiter, and input gain per channel, ensuring optimal sound quality and control. Its remote DC level control per channel and extensive protection circuitry further enhance its performance and reliability.

This advanced amplifier is equipped with an Ethernet port for software control and monitoring of amplifier functions, complete with a front panel COM activity LED. It also features a serial data port compatible with Ashly WR-5 and RD-8C programmable remote controls, offering additional flexibility and control.

The NXP Series Amplifier is designed with energy efficiency in mind, featuring an Instant Standby Mode that reduces idle power consumption by 40%. This mode can be triggered by contact closure, software control, or an event scheduler.

The amplifier also offers comprehensive software-controlled DSP, including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering. For added convenience, select DSP functions such as gain, matrix, A/B source select, PEQ filter level, and meters can be controlled via an iPad.

The NXP Series Amplifier is built with Class-D Switching Amplifier Technology and features a universal switch-mode power supply with Power Factor Correction (PFC) that operates from 70VAC to 270VAC. Its multi-mode operation and selectable outputs allow you to choose the desired output mode on each channel, providing flexibility for low impedance or constant voltage settings.

This amplifier is also equipped with Ashly EMS (Energy Management System), an automatic sleep-mode that draws less than 1 Watt, contributing to its energy efficiency. Additionally, it offers real-time clock with event scheduler for automatic execution of selected functions and tasks, and Ashly Remote Control via an iPad app for secure wireless control over the network.

With its 32-bit SHARC DSP Processing at 48kHz or 96kHz Sample Rates, the NXP Series Amplifier offers comprehensive software control of digital signal processing, matrix and auto-mixing, and a built-in signal generator for test tone and noise-masking. It's also FIR Filter-Ready, compatible with a speaker manufacturer's .fir or .csv file for precision tuning.

In conclusion, the NXP Series 4-Channel 150W Networkable Multi-Mode Power Amplifier with Protea DSP Software Suite is a robust, versatile, and efficient solution for professional audio amplification needs.

Ashly NXP1504 Features

  • Powerful 4-Channel 150W networkable amplifier ideal for large venues and performance spaces
  • Advanced Protea DSP Software Suite for comprehensive control of audio dynamics, gain, equalization, and more
  • Energy-efficient design with an Instant Standby Mode reducing idle power consumption by 40%
  • Versatile multi-mode operation with selectable outputs for low impedance or constant voltage settings
  • Real-time clock with event scheduler for automatic execution of selected functions and tasks
  • FIR Filter-Ready and compatible with speaker manufacturer's .fir or .csv file for precision tuning

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience superior audio clarity with this power amplifier's low distortion output.
  • Achieve optimal sound with impedance matching, ensuring peak performance for your speakers.
  • This multi-mode amplifier delivers 150W per channel, perfect for installations and live sound.
  • Rely on the signal-to-noise ratio for pristine audio, free from unwanted background noise.
  • Utilize the Protea DSP software suite for precise audio shaping and customized soundscapes.
  • Benefit from reliable protection features, safeguarding your amplifier and connected speakers.

What's in the box:

  • Ashly NXP Series 4-Channel 150W Networkable Multi-Mode Power Amplifier with Protea DSP Software Suite
  • Ashly 5 Year Limited Warranty
