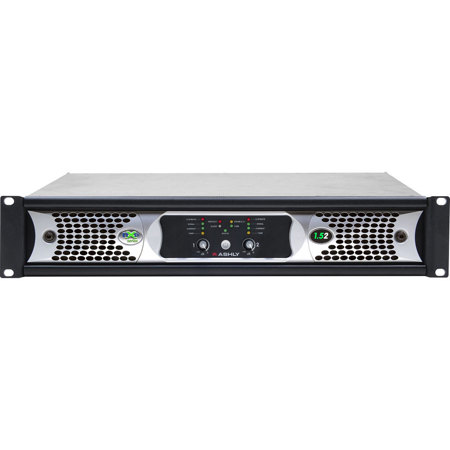

Ashly NXP1.52 2-Channel Networkable Multi-Mode Power Amplifier with Protea DSP and OPDante Option Card

SKU: ASNXP152D MFR: NXP1.52D
Earn VIP Reward Points

Key Features

  • Experience superior audio fidelity with this professional power amplifier.
  • Harness 1500W power for impactful sound with this installed amplifier solution.
  • Easily integrate this networkable amplifier into existing audio systems via Ethernet.
  • Customize your sound with Protea DSP, offering precise audio signal processing.
  • Ensure reliable performance with comprehensive amplifier protection features.
  • Optimize sound with parametric EQ, perfect for studio and live sound environments.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ashly NXP1.52 Specifications

Channels

Channels

Jump to...
  • No of channel

    2

  • Output

    For Max Output Power: Measured in Watts, Per Channel, Low Impedance Output, All Channels Driven:

    2 Ohms: 1500 W
    4 Ohms: 1500W
    8 Ohms: 1250 W

    For Low Impedance Output: Measured in Watts, Bridge Mode, All Channels Driven

    4 Ohms: 3000 W
    8 Ohms: 3000 W

Line Current Draw

Jump to...
  • Power Draw

    Sleep Mode: less than 1 W
    Standby Mode: 40W
    Idle (No Signal): 55W

  • Current Draw

    For 120 VAC
    Sleep Mode: 0.1
    Standby Mode: 0.70
    Idle (No Signal): 1.00

    Typical: 8.0

Thermal Dissipation

Jump to...
  • Dissipation

    Thermal Dissipation: Sleep Mode: <3.4 BTU/hr
    Standby Mode: 136 BTU/hr
    Idle (no signal): 187 BTU/hr
    Typical (1 / 8 Max Power): 850 BTU/hr

General

Jump to...
  • Voltage Gain

    Selectable at 26dB, 32dB, 38dB, or 1.4V

  • Damping Factor

    >250 (8 Ohms load <1kHz)

  • Input High Pass Filter

    80Hz 2nd order

  • Distortion (SMPTE, typical)

    <0.5%

  • Distortion (THD-N, typical)

    <0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)

  • Channel Separation

    -75dB (dB from full output, 1kHz)

  • Signal-to-Noise (20Hz-20kHz)

    >111dB

  • Frequency Response

    20Hz-20kHz, +/-0.05dB

  • Balanced Input Connector

    Euroblock 3.5mm, 1/4" TRS and XLR Combo jack

  • Input Impedance

    10k Ohms

  • Maximum Input Level

    +21dBu

  • Speaker Output Connector

    Neutral speakON

  • Control Network

    Compatible with standard 100MB Ethernet

  • AUX Output Connector

    Balanced Euroblock 3.5mm

  • AUX Output Maximum Level

    +21dBu

  • Remote Standby Contact Closure

    Euroblock 3.5mm, close contact to GND for standby mode

  • Preset Recall Contact Closure

    Euroblock 3.5mm, close contact to GND for preset 1-4 recall

  • Data Connection

    Euroblock 3.5mm - Gnd, +18V, In, Out

  • Fault Condition Logic Outputs

    Fault indicated by loss of 1Hz "heartbeat" pulse signal

  • Remote DC Level Control

    Euroblock 3.5mm - Gnd, CV, V+ per input

  • Attenuators (per channel)

    Front panel, software, offset link group and remote. Fully off = Mute

  • Amplifier Protection

    Inrush current limitation, temperature monitoring, output over-power protection, mains fuses

  • Cooling

    Continuously variable temperature controlled axial fan(s)

  • Environmental

    32-113 deg F, (0-45 deg, C) (noncondensing)

LED Indicators

Jump to...
  • Front Panel

    POWER (white): Switch: On, Off, Standby (flashing)
    PROTECT (red): On (fault condition or shut down), Off
    SLEEP (blue): On, amplifier is asleep from audio inactivity
    DISABLE (yellow): On, power switch & attenuators are disabled
    COM (green): On, for Ethernet data or Device ID

  • Each Channel

    Per Channel CLIP/MUTE (red): Clip at 1dB below rated output / Mute
    SIGNAL (green): -18dB below rated output
    CURRENT (green): Brightness is proportional to output current
    TEMP (yellow): On dim at 90% max operating temperature, On full bright + protect at 100%
    BRIDGE (green): On, Off

Power Requirement

Jump to...
  • Nominal

    110 - 120VAC
    220 - 240VAC (Automatic Sensing SMPS)

  • Operating Range

    70-135VAC at 50Hz
    140-270VAC at 60Hz

  • Minimum power-up

    85VAC at 50Hz
    170VAC at 60Hz

  • Cable Connector

    20A powerCON

DSP: Input Source Selection

Jump to...
  • Options

    Analog, Auto (Net, AES3, Analog)

DSP: Brick Wall Limiter

Jump to...
  • Threshold

    -20dBu to +20dBu

  • Ratio

    infinity

  • Attack

    0.2ms/dB to 50 ms/dB

  • Release

    5ms/dB to 1000ms/dB

DSP: Compressor

Jump to...
  • Threshold

    -20dBu to +20dBu

  • Ratio

    1.2:1 to infinity

  • Attack

    0.2 to 50ms

  • Release

    5ms/dB to 1000ms/dB

  • Detector

    Peak/Average

  • Attenuation Bus

    2 available

  • Metering

    In, Out, Attenuation, Graphical

DSP: Autoleveler Controls

Jump to...
  • Target Level

    -40dBu to +20dBu

  • Action

    Gentle, normal, aggressive, user-defined

  • Maximum Gain

    0dB to +22dB

  • Metering

    Input, Gain, Attenuation

  • Ratio

    1.2:1 to 10:1

  • Threshold Below Target

    -30dB to 0dB

  • Gain Increase/Decrease Rate

    5ms/dB to 1000ms/dB

  • Hold Time

    0-6 sec

DSP: Ambient Noise Compensation (Output)

Jump to...
  • Max Gain

    -20dB to +20dB

  • Min/Base Gain

    -40dB to -1dB

  • Gain Change Rate

    0.2s/dB to 20s/dB

  • Link Group

    16 available

  • ANC Input Channel

    1-2 or 1-4

  • Noise Threshold

    -40dBu to +20dBu

  • Program/Ambient Gain Ratio

    0.3:1 to 3:1

  • Metering

    Input level, Attenuation, Average noise

DSP: Ducking

Jump to...
  • Trigger Threshold

    -80dBu to +20 dBu

  • Ducking Release

    5ms/dB to 1000ms/dB

  • Ducking Depth

    0dB to -30dB, infinity

  • Enable Ducking at Matrix Mixer

    Yes

  • Metering

    Input

DSP: Gate

Jump to...
  • Threshold

    -80dBu to +20dBu

  • Range

    off, 100dB to 0dB

  • Attack

    0.2ms/dB to 50 ms/dB

  • Release

    5ms/dB to 1000ms/dB

  • Metering

    Key Signal, Gate LED, Graphical

DSP: Advanced Gate Controls

Jump to...
  • Key Engage Enable

    Yes

  • Key Frequency

    20Hz to 20kHz

  • Key Bandwidth

    0.016 to 3.995 Octave

DSP: Gain

Jump to...
  • Gain (with/without VCA)

    -50dB to +12dB, off, polarity invert

  • Digital VCA Groups

    4 available

  • Remote RD8C Gain

    Enable per channel, 0dB to infinity

  • WR-5 (neWR-5) Remote Gain

    0 to -50dB, Mute

DSP: EQ (31-Band)

Jump to...
  • File Type

    .csv, .fir

  • Filter Type

    Constant Q or Proportional

  • Bandwidth

    0.499oct to 0.25oct

DSP: EQ (Parametric 2,4,6, or 10 Band)

Jump to...
  • Frequency

    20-20kHz

  • Level

    -30dB to +15dB

  • Q Value

    0.016 to 3.995 Octave

DSP: EQ (Hi/Low Shelf 6/12 dB/oct)

Jump to...
  • Frequency

    20Hz-20kHz

  • Level

    -15dB to +15dB

DSP: EQ (All Pass)

Jump to...
  • Frequency

    20Hz-20kHz

DSP: EQ (Variable Q HP/LP)

Jump to...
  • Frequency

    20Hz-20kHz

  • Q Value

    3.047 to 0.267

DSP: EQ (Notch/Bandpass)

Jump to...
  • Frequency

    20Hz-20kHz

  • Q Value

    92.436 to 0.267

DSP: Feedback Suppressor (Input Only)

Jump to...
  • Filters

    12

  • In/Out per filter

    Yes

  • Lock per filter and global lock

    Yes

  • Filter Modes

    Float, Restricted, Manual

  • Filter Type

    Notch, Parametric

  • Filter Frequency Range

    20Hz to 20kHz

  • Notch Filter

    Infinity

  • Parametric Filter

    +15dB to -30dB

  • Filter Bandwidth

    0.016 to 3.995 Octave

  • Detector Sensitivity

    5 levels

  • Float Time

    5 min to 24 hours

DSP: Crossover (2 /3/4 Way Crossover)

Jump to...
  • Bessel & Butterworth Filters

    12/18/24/48 dB/oct

  • Linkwitz-Riley Filter

    12/24/48 dB/oct

  • Frequency

    Off, 20Hz-20KHz

DSP: Delay (@ 48kHz Sampling Rate)

Jump to...
  • Speaker Delay

    0-21ms

  • Delay

    0-682ms

DSP: Delay (@ 96kHz Sampling Rate)

Jump to...
  • Speaker Delay

    0-10.6ms

  • Delay

    0-341ms

DSP: Audio Metering Tool

Jump to...
  • Range

    -60dBu to +20dBu

  • Increments

    1dB

  • Peak Hold Indicator

    Yes

DSP: Signal Generator Tool

Jump to...
  • Signal Level

    Off, -50dBu to +20dBu

  • Sine Wave Frequency

    20Hz-12kHz

DSP: Matrix Mixer

Jump to...
  • Gain (0.5dB increments)

    Off, -50dB to +12dB

  • Mute

    Per channel

  • Auto-Mixer Enabled

    Per channel

  • Global Auto-mixer Response

    0.01sec to 2sec

  • Enable Ducking at Mixer

    Yes

  • Ducking LED

    Per channel if enabled

  • Metering

    Level, auto-mixer level

DSP: Processors

Jump to...
  • Input A/D, Output D/A

    24 bit

  • DSP Processors

    32-bit floating point

  • Sample Rates

    48kHz, 96kHz

  • Propagation Delay @ 48kHz

    1.42ms

  • Propagation Delay @ 96kHz

    0.71ms

Physical

Jump to...
  • Dimensions (W x H x D)

    19 x 3.5 x 16.84" (482.6 x 88.9 x 427.73mm)

  • Weight

    22.7 lb (10.3kg)

About Ashly NXP1.52

Discover the power and versatility of the NXP1.52 2-Channel Networkable Multi-Mode Power Amplifier with Protea DSP and OPDante Option Card. This advanced amplifier is designed to meet the rigorous demands of live sound environments and fixed audio installations, making it an ideal choice for performance venues, stadiums, arenas, convention centers, schools, storefronts, and worship spaces.

The NXP1.52 is part of the NX series, which includes the base model series (NX), the networkable series (NXE), and the networkable series with DSP (NXP). This model stands out for its Ethernet Control using Protea NE software, allowing for seamless integration into your audio network. It also offers serial data control by Ashly programmable remotes or third-party controllers, providing you with flexibility and control.

This high-quality amplifier features 32-bit SHARC DSP Processing at 48kHz or 96kHz Sample Rates, offering comprehensive software control of digital signal processing, matrix and auto-mixing. It also includes a built-in signal generator for test tone and noise-masking, swept output load impedance monitoring, and Ashly Remote iPad control for selecting DSP functions such as gain, mute, matrix, A/B source select, PEQ filter level, and meters.

The NXP1.52 is FIR Filter-Ready, meaning it can load a speaker manufacturer's .fir or .csv file to achieve precision tuning. It also boasts Class-D Switching Amplifier Technology, featuring a switch-mode power supply that automatically detects 110 - 120VAC or 220 - 240VAC operation. This makes the NXP1.52 one of the lightest and most efficient amplifiers in its class.

The amplifier offers Multi-Mode Operation with Selectable Outputs on each channel, allowing you to choose your desired output mode. Set the DIP-switch configuration for Low Impedance (2, 4, and 8 Ohm), or Constant Voltage (70V or 100V) for maximum flexibility. The NXP1.52 also features Ashly EMS (Energy Management System), which provides an automatic sleep-mode drawing less than 1 Watt, enhancing its energy efficiency.

Experience the power of the NXP1.52, a 2-channel multi-mode amplifier capable of driving 2 Ohm loads at full power, with a maximum rated output power of 1,500W per channel at Low Z and 70V modes, and 1,250W in 100V mode. It also offers an automatic but defeatable sleep mode, selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V.

The NXP1.52 is equipped with Neutral XLR/TRS combo jack and Euroblock input connectors, and Neutral speakON output connectors. It also features a front panel power switch and level controls that can be disabled, and LEDs that indicate various statuses such as Protect, Sleep, Disabled, Com, and Bridge mode, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel.

With the NXP1.52, you get more than just a powerful amplifier. You get a durable, efficient, and advanced piece of equipment that's ready to take your audio experience to the next level.

Ashly NXP1.52 Features

  • Selectable 80Hz Hi-pass filter, limiter, and input gain per channel, via rear panel
  • Remote DC level control per channel
  • Extensive protection circuitry, continuously variable cooling fans
  • Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
  • Instant Standby Mode, 30% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
  • Preset recall via contact closure, software control, remote control, or event scheduler
  • Programmable power-on delay
  • Aux preamp line outputs for driving other amplifiers
  • Fault condition logic outputs, per channel
  • Comprehensive software controlled DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering
  • Additional iPad control of select DSP functions including gain, matrix, A/B source select, PEQ filter level, and meters
  • Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
  • Signal generator function for test and noise masking
  • Remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes
  • Neutral Combo XLR - 1/4" TRS jack plus Euroblock input connectors
  • Neutral speakON twist locking loudspeaker connect-tors
  • Neutral powerCON detachable AC mains connector
  • Safety/Compliance: TUV, CE, FCC, RoHS

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Key Features

  • Experience superior audio fidelity with this professional power amplifier.
  • Harness 1500W power for impactful sound with this installed amplifier solution.
  • Easily integrate this networkable amplifier into existing audio systems via Ethernet.
  • Customize your sound with Protea DSP, offering precise audio signal processing.
  • Ensure reliable performance with comprehensive amplifier protection features.
  • Optimize sound with parametric EQ, perfect for studio and live sound environments.

What's in the box:

  • NXP1.52 2-Channel Networkable Multi-Mode Power Amplifier with Protea DSP
  • Ashly 5 Year Limited Warranty
