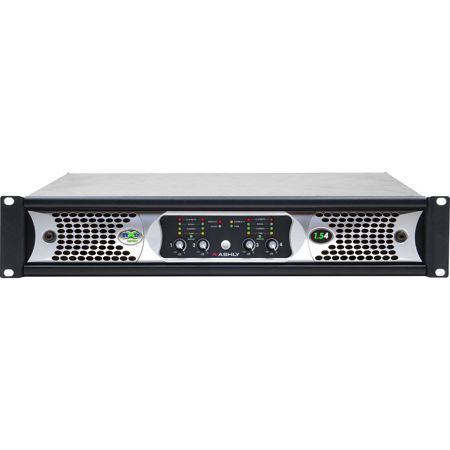

Ashly NXP1.54 4-Channel Networkable Multi-Mode Power Amplifier with Protea DSP and CNM-2 CobraNet Option Card

NXP Multi-Mode Power Amplifiers with Selectable Outputs & Protea DSP
NX Multi-Mode Power Amplifiers are designed to meet the most demanding live sound environments and fixed audio installations anywhere-performance venues, stadiums, arenas, convention centers as well as schools, store fronts, and worship spaces.

Available as three separate amplifier series, NX offers 2 or 4-channel models as NX (base model series), NXE (network-able), or NXP (networkable + DSP).

All NXP Models Includes

Ethernet Control using Protea NE software
Also, serial data control by Ashly programmable remotes or third party controllers, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, optional Dante, CobraNet, or AES3 digital audio capability (factory-installed).

Real-Time Clock with Event Scheduler
Assign automatic execution of selected functions and tasks. The event scheduler is programmed using PneS software and stored in the amplifier.

Ashly Remote Control via iPad app
Use our Ashly Remote free app available for custom design of secure wireless control over a network.

32-bit SHARC DSP Processing at 48kHz or 96kHz Sample Rates
Comprehensive software control of digital signal process-ing, matrix and auto-mixing, built-in signal generator for test tone and noise-masking, swept output load impedance monitoring. Use Ashly Remote iPad control to select DSP functions including gain, mute, matrix, A/B source select, PEQ filter level, and meters.

FIR Filter-Ready
Our PneS software will load a speaker manufacturer's .fir or .csv file to achieve precision tuning.

Class-D Switching Amplifier Technology
NXE features a switch-mode power supply which automatically detects 110 - 120VAC or 220 - 240VAC operation and makes NXE one of the lightest in its class.

Multi-Mode Operation
Selectable Outputs on each channel allow you to choose the desired output mode. Set the DIP-switch configuration for Low Impedance (2, 4, and 8 Ohm), or Constant Voltage (70V or 100V) and you're set to go.

Energy Efficiency
NXE has power-saving Ashly EMS (Energy Management System) which provides an automatic sleep-mode drawing less than 1 Watt (defeatable).

Multiple Internal Power Supplies
NXE provides increased channel separation and reliability.

nXp1.54: Architect & Engineering Specs
The unit shall be a 4 channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power shall be 1,500W per channel at Low Z and 70V modes, and 1,250W in 100V mode. There shall be an automatic but defeatable sleep mode consuming <1W, and instant standby mode controlled by contact closure or software. A switch mode power supply shall auto-detect 110 - 120VAC or 220 - 240VAC mains, and a Neutral powerCON shall be used for the AC cord.

Each channel shall have selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V. Each channel shall have remote DC level control. Input connectors shall be Neutral XLR/TRS combo jack and Euroblock, while output connectors shall be Neutral speakON. The unit shall have a front panel power switch and level controls that can be disabled. LEDs shall indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The unit shall have Ethernet control with a real-time clock for event scheduling. The unit shall have serial data remote control, aux preamp outputs, preset control, fault condition logic outputs, optional network audio and AES3 digital audio capability.

The unit shall have 32-bit DSP processing at 48kHz or 96kHz sampling rate. DSP functions shall include swept load impedance, gain, dynamics including au-toleveler and ambient noise compensation, equalization including graphic, parametric, feedback suppressor, and FIR filters, a matrix mixer including automixing, crossover, delay, and a signal generator. The amplifier shall have temperature dependent variable speed forced-air cooling. The unit shall weigh <28.7 lbs (13kg), measure 19"W x 3.5"H x 16.8"D (483mm x 89mm x 428mm), and mount in a standard 19" rack. There shall be a five year warranty for units purchased in the US. No other unit shall be acceptable unless all specifications represented herein are met or exceeded and submitted in writing by an independent testing agent.

Protea Digital signal Processing for nXP Amplifiers
Protea is compatible with Microsoft Windows 10, 8, 7 (Vista/XP) 32 & 64 bit systems. Audio professionals find our Protea DSP to be very intuitive and easy to navigate - and you will too.

Protea DSP is designed for the nXp Amplifier, Pema, ne Series Amplifiers and Processors, the ne24.24M Matrix Processor, and Protea System Processors.
