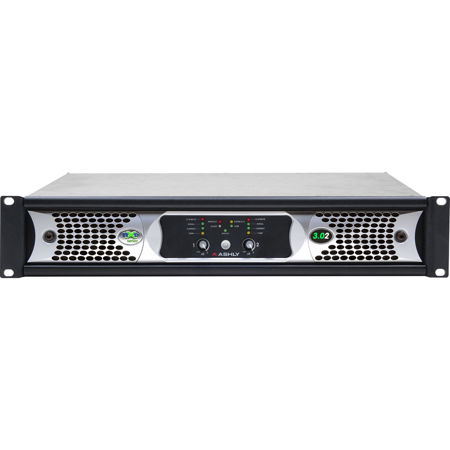

Ashly NXP3.02 2-Channel Networkable Multi-Mode Power Amplifier with Protea DSP and OPDante Option Card
SKU: ASNXP302D MFR: NXP3.02D
$4,599.00
$5,749.00
Save: $1150 (20%)OR
Key Features
- Experience pristine audio with this Ashly power amplifier's high signal-to-noise ratio.
- Harness 2000W at 4 Ohms for powerful sound reinforcement in any professional audio setup.
- Easily integrate this networkable amplifier using standard 100MB Ethernet for control.
- Customize your sound with Protea DSP, offering extensive EQ and crossover options.
- Ensure reliable performance with comprehensive amplifier protection and temperature control.
- Enjoy flexible connectivity with Euroblock, TRS, and XLR combo jack balanced inputs.
Special Order?Estimated to Ship: 08/14/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$499.99
3 Year
$649.99
5 Year
$949.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Ashly NXP3.02
After extensive research and development, Ashly presents the NXP3.02 2-Channel Networkable Multi-Mode Power Amplifier with Protea DSP and OPDante Option Card. This powerful and high-quality amplifier is designed to cater to the most demanding live sound environments and fixed audio installations, making it an ideal choice for performance venues, stadiums, arenas, convention centers, schools, storefronts, and worship spaces.
The NXP3.02 amplifier is part of Ashly's NX series, which also includes the NX (base model series) and NXE (networkable) models. This advanced amplifier stands out with its networkable and DSP features, offering superior sound quality and versatility.
The amplifier comes with Ethernet Control using Protea NE software, enabling easy control and management. It also supports serial data control by Ashly programmable remotes or third-party controllers, providing additional flexibility. The amplifier also features aux preamp outputs, instant standby mode, preset recall, and fault condition logic outputs.
The NXP3.02 amplifier is equipped with optional Dante, CobraNet, or AES3 digital audio capability (factory-installed), offering a wide range of connectivity options. It also comes with a Real-Time Clock with Event Scheduler, allowing automatic execution of selected functions and tasks.
The amplifier boasts 32-bit SHARC DSP Processing at 48kHz or 96kHz Sample Rates, offering comprehensive software control of digital signal processing, matrix and auto-mixing, and a built-in signal generator for test tone and noise-masking. It also supports swept output load impedance monitoring.
The NXP3.02 amplifier is FIR Filter-Ready, meaning it can load a speaker manufacturer's .fir or .csv file to achieve precision tuning. It uses Class-D Switching Amplifier Technology and features a switch-mode power supply, which automatically detects 110 - 120VAC or 220 - 240VAC operation.
The amplifier supports Multi-Mode Operation with Selectable Outputs on each channel, allowing you to choose the desired output mode. It also features Ashly's EMS (Energy Management System), which provides an automatic sleep-mode drawing less than 1 Watt (defeatable).
The NXP3.02 amplifier is designed to drive 2 Ohm loads at full power, with a maximum rated output power of 3,000W per channel at Low Z, 2,450W per channel in 70V mode, and 1,250W in 100V mode. It also features 32-bit DSP processing at 48kHz or 96kHz sampling rate, offering a wide range of DSP functions.
The NXP3.02 amplifier is designed with temperature-dependent variable speed forced-air cooling, ensuring reliable and durable performance. It also supports Protea Digital signal Processing, which is compatible with Microsoft Windows 10, 8, 7 (Vista/XP) 32 & 64 bit systems. This makes the amplifier intuitive and easy to navigate, providing a seamless user experience.
Ashly NXP3.02 Features
- Selectable 80Hz Hi-pass filter, limiter, and input gain per channel, via rear panel
- Remote DC level control per channel
- Extensive protection circuitry, continuously variable cooling fans
- Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
- Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
- Instant Standby Mode, 30% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
- Preset recall via contact closure, software control, remote control, or event scheduler
- Programmable power-on delay
- Aux preamp line outputs for driving other amplifiers
- Fault condition logic outputs, per channel
- Comprehensive software controlled DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering
- Additional iPad control of select DSP functions including gain, matrix, A/B source select, PEQ filter level, and meters
- Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
- Signal generator function for test and noise masking
- Remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes
- Neutral Combo XLR - 1/4" TRS jack plus Euroblock input connectors
- Neutral speakON twist locking loudspeaker connect-tors
- Neutral powerCON detachable AC mains connector
- Safety/Compliance: TUV, CE, FCC, RoHS
Warranty Information
This product has a limited warranty of 60 months for parts and 60 months for labor.
