4
For Max Output Power: Measured in Watts, Per Channel, Low Impedance Output, All Channels Driven:
2 Ohms: 3000 W
4 Ohms: 2000W
8 Ohms: 1250 W
For Low Impedance Output: Measured in Watts, Bridge Mode, All Channels Driven
4 Ohms: 6000 W
8 Ohms: 4000 W
Sleep Mode: less than 1 W
Standby Mode: 70W
Idle (No Signal): 100W
For 120 VAC
Sleep Mode: 0.1
Standby Mode: 1.30
Idle (No Signal): 1.85
Typical: 29.5
Thermal Dissipation: Sleep Mode: <3.4 BTU/hr
Standby Mode: 238 BTU/hr
Idle (no signal): 340 BTU/hr
Typical (1 / 8 Max Power): 2720 BTU/hr
Selectable at 26dB, 32dB, 38dB, or 1.4V
>250 (8 Ohms load <1kHz)
80Hz 2nd order
<0.5%
<0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)
-75dB (dB from full output, 1kHz)
>114dB
20Hz-20kHz, +/-0.05dB
Euroblock 3.5mm, 1/4" TRS and XLR Combo jack
10k Ohms
+21dBu
Neutral speakON
Compatible with standard 100MB Ethernet
Balanced Euroblock 3.5mm
+21dBu
Euroblock 3.5mm, close contact to GND for standby mode
Euroblock 3.5mm, close contact to GND for preset 1-4 recall
Euroblock 3.5mm - Gnd, +18V, In, Out
Fault indicated by loss of 1Hz "heartbeat" pulse signal
Euroblock 3.5mm - Gnd, CV, V+ per input
Front panel, software, offset link group and remote. Fully off = Mute
Inrush current limitation, temperature monitoring, output over-power protection, mains fuses
Continuously variable temperature controlled axial fan(s)
32-113 deg F, (0-45 deg, C) (noncondensing)
POWER (white): Switch: On, Off, Standby (flashing)
PROTECT (red): On (fault condition or shut down), Of
SLEEP (blue): On, amplifier is asleep from audio inactivity
DISABLE (yellow): On, power switch & attenuators are disabled
COM (green): On, for Ethernet data or Device ID
Per Channel CLIP/MUTE (red): Clip at 1dB below rated output / Mute
SIGNAL (green): -18dB below rated output
CURRENT (green): Brightness is proportional to output current
TEMP (yellow): On dim at 90% max operating temperature, On full bright + protect at 100%
BRIDGE (green): On, Off
110 - 120VAC
220 - 240VAC (Automatic Sensing SMPS)
70-135VAC at 50Hz
140-270VAC at 60Hz
85VAC at 50Hz
170VAC at 60Hz
32A powerCON
Analog, Auto (Net, AES3, Analog)
-20dBu to +20dBu
infinity
0.2ms/dB to 50 ms/dB
5ms/dB to 1000ms/dB
-20dBu to +20dBu
1.2:1 to infinity
0.2 to 50ms
5ms/dB to 1000ms/dB
Peak/Average
2 available
In, Out, Attenuation, Graphical
-40dBu to +20dBu
Gentle, normal, aggressive, user-defined
0dB to +22dB
Input, Gain, Attenuation
1.2:1 to 10:1
-30dB to 0dB
5ms/dB to 1000ms/dB
0-6 sec
-20dB to +20dB
-40dB to -1dB
0.2s/dB to 20s/dB
16 available
1-2 or 1-4
-40dBu to +20dBu
0.3:1 to 3:1
Input level, Attenuation, Average noise
-80dBu to +20 dBu
5ms/dB to 1000ms/dB
0dB to -30dB, infinity
Yes
Input
-80dBu to +20dBu
off, 100dB to 0dB
0.2ms/dB to 50 ms/dB
5ms/dB to 1000ms/dB
Key Signal, Gate LED, Graphical
Yes
20Hz to 20kHz
0.016 to 3.995 Octave
-50dB to +12dB, off, polarity invert
4 available
Enable per channel, 0dB to infinity
0 to -50dB, Mute
.csv, .fir
Constant Q or Proportional
0.499oct to 0.25oct
20-20kHz
-30dB to +15dB
0.016 to 3.995 Octave
20Hz-20kHz
-15dB to +15dB
20Hz-20kHz
20Hz-20kHz
3.047 to 0.267
20Hz-20kHz
92.436 to 0.267
12
Yes
Yes
Float, Restricted, Manual
Notch, Parametric
20Hz to 20kHz
Infinity
+15dB to -30dB
0.016 to 3.995 Octave
5 levels
5 min to 24 hours
12/18/24/48 dB/oct
12/24/48 dB/oct
Off, 20Hz-20KHz
0-21ms
0-682ms
0-10.6ms
0-341ms
-60dBu to +20dBu
1dB
Yes
Off, -50dBu to +20dBu
20Hz-12kHz
Off, -50dB to +12dB
Per channel
Per channel
0.01sec to 2sec
Yes
Per channel if enabled
Level, auto-mixer level
24 bit
32-bit floating point
48kHz, 96kHz
1.42ms
0.71ms
19 x 3.5 x 16.84" (482.6 x 88.9 x 427.73mm)
28.7 lb (13kg)

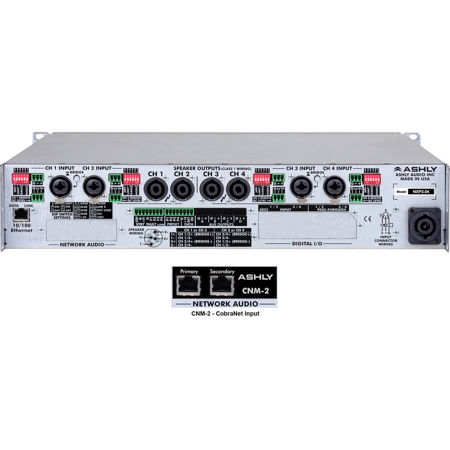

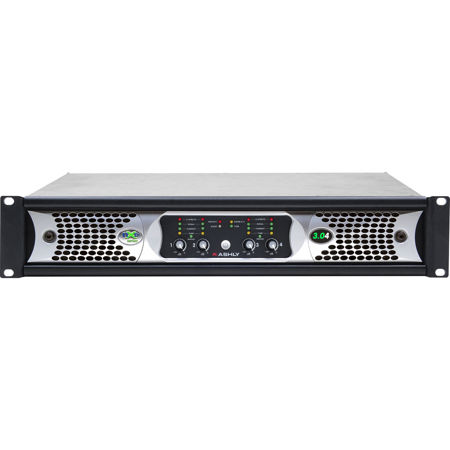

Let the NXP3.04 4-Channel Networkable Multi-Mode Power Amplifier with Protea DSP and CNM-2 CobraNet revolutionize your audio experience. This powerful and advanced amplifier is designed to meet the rigorous demands of live sound environments and fixed audio installations, making it an ideal choice for performance venues, stadiums, arenas, convention centers, schools, storefronts, and worship spaces.
This high-quality amplifier is part of the NX series, offering you the choice of 2 or 4-channel models in NX (base model series), NXE (networkable), or NXP (networkable + DSP). The NXP models, including the NXP3.04, come with Ethernet Control using Protea NE software, allowing for seamless integration into your network.
The NXP3.04 amplifier is equipped with a dual format audio input, accepting both analog and digital audio signals for maximum flexibility. It also includes serial data control by Ashly programmable remotes or third-party controllers, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, and optional Dante, CobraNet, or AES3 digital audio capability.
Experience sophisticated control with the 32-bit SHARC DSP Processing at 48kHz or 96kHz Sample Rates. This feature offers comprehensive software control of digital signal processing, matrix and auto-mixing, and a built-in signal generator for test tone and noise-masking. The amplifier also supports FIR Filter-Ready, allowing you to load a speaker manufacturer's .fir or .csv file for precision tuning.
The NXP3.04 amplifier features Class-D Switching Amplifier Technology with a switch-mode power supply that automatically detects 110 - 120VAC or 220 - 240VAC operation. This makes the NXE one of the lightest in its class. The amplifier also offers Multi-Mode Operation with Selectable Outputs on each channel, allowing you to choose the desired output mode.
The NXP3.04 amplifier is energy-efficient, featuring Ashly EMS (Energy Management System) that provides an automatic sleep-mode drawing less than 1 Watt. It also boasts multiple internal power supplies for increased channel separation and reliability.
This durable amplifier is capable of driving 2 Ohm loads at full power, with a maximum rated output power of 3,000W per channel at Low Z, 2,450W per channel in 70V mode, and 1,250W in 100V mode. It also features an automatic but defeatable sleep mode and selectable output mode of Low Z, 70V, or 100V.
The NXP3.04 amplifier is designed with a front panel power switch and level controls that can be disabled. It also includes LEDs that indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel.
Experience the power and sophistication of the NXP3.04 4-Channel Networkable Multi-Mode Power Amplifier with Protea DSP and CNM-2 CobraNet. It's more than just an amplifier; it's a game-changer in the world of audio technology.
