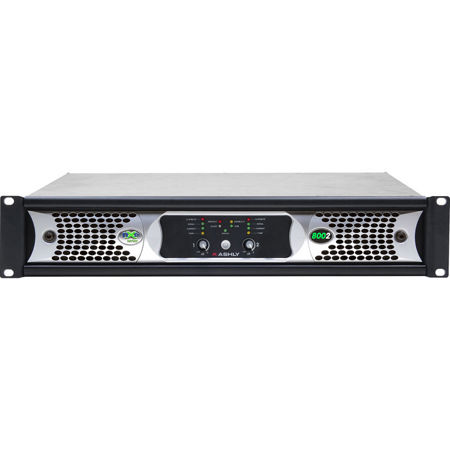

Ashly NXP8002 2-Channel Networkable Multi-Mode Power Amplifier with Protea DSP and CNM-2 CobraNet Option Card
SKU: ASNXP8002C MFR: NXP8002C
$3,899.00
$4,849.00
Save: $950 (20%)OR
Key Features
- Experience superior audio clarity with this Ashly power amplifier's Protea DSP.
- Networkable via CobraNet, this amplifier integrates seamlessly into existing systems.
- This 2-channel amplifier delivers robust, reliable power for professional installations.
- Optimize sound with the multi-mode amplifier, perfect for live venues and studios.
- Enjoy peace of mind with the 5-year warranty covering this professional audio amplifier.
- Fine-tune your sound with the advanced EQ and crossover settings on this power amplifier.
Special Order?Estimated to Ship: 09/03/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$299.99
3 Year
$449.99
5 Year
$949.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Ashly NXP8002
A powerhouse of audio performance, the NXP8002 2-Channel Networkable Multi-Mode Power Amplifier with Protea DSP and CNM-2 CobraNet Option Card is engineered to deliver superior sound quality in the most demanding live sound environments and fixed audio installations. This includes performance venues, stadiums, arenas, convention centers, schools, storefronts, and worship spaces.
The NXP8002 is part of the NX series of amplifiers, which includes the base model NX, the networkable NXE, and the NXP, which combines networkability with DSP. All NXP models feature Ethernet Control using Protea NE software, allowing for seamless integration with Ashly programmable remotes or third-party controllers.
This amplifier boasts a real-time clock with an event scheduler, enabling automatic execution of selected functions and tasks. The event scheduler is programmed using PneS software and stored in the amplifier, ensuring a smooth and efficient operation.
The NXP8002 also offers the convenience of remote control via the Ashly Remote free app, which allows for custom design of secure wireless control over a network. This amplifier utilizes 32-bit SHARC DSP Processing at 48kHz or 96kHz sample rates, providing comprehensive software control of digital signal processing, matrix and auto-mixing, and a built-in signal generator for test tone and noise-masking.
The NXP8002 is FIR Filter-Ready, meaning it can load a speaker manufacturer's .fir or .csv file to achieve precision tuning. It employs Class-D Switching Amplifier Technology and features a switch-mode power supply, which automatically detects 110 - 120VAC or 220 - 240VAC operation.
The NXP8002 offers multi-mode operation with selectable outputs on each channel, allowing you to choose the desired output mode. Set the DIP-switch configuration for Low Impedance (2, 4, and 8 Ohm), or Constant Voltage (70V or 100V) and you're ready to go.
This amplifier is energy efficient, featuring Ashly EMS (Energy Management System) which provides an automatic sleep-mode drawing less than 1 Watt. It also boasts multiple internal power supplies for increased channel separation and reliability.
The NXP8002 is a 2 channel multi-mode amplifier capable of driving 2 Ohm loads at full power, with a maximum rated output power of 800W per channel at Low Z, 70V, and 100V mode. It features an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V.
The NXP8002 is equipped with Neutral XLR/TRS combo jack and Euroblock input connectors, and Neutral speakON output connectors. It also features a front panel power switch and level controls that can be disabled.
This amplifier is designed with Protea Digital signal Processing, compatible with Microsoft Windows 10, 8, 7 (Vista/XP) 32 & 64 bit systems. Audio professionals will find the Protea DSP intuitive and easy to navigate, making the NXP8002 a top choice for superior audio performance.
Ashly NXP8002 Features
- Selectable 80Hz Hi-pass filter, limiter, and input gain per channel, via rear panel
- Remote DC level control per channel
- Extensive protection circuitry, continuously variable cooling fans
- Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
- Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
- Instant Standby Mode, 30% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
- Preset recall via contact closure, software control, remote control, or event scheduler
- Programmable power-on delay
- Aux preamp line outputs for driving other amplifiers
- Fault condition logic outputs, per channel
- Comprehensive software controlled DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering
- Additional iPad control of select DSP functions including gain, matrix, A/B source select, PEQ filter level, and meters
- Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
- Signal generator function for test and noise masking
- Remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes
- Neutral Combo XLR - 1/4" TRS jack plus Euroblock input connectors
- Neutral speakON twist locking loudspeaker connect-tors
- Neutral powerCON detachable AC mains connector
- Safety/Compliance: TUV, CE, FCC, RoHS
Warranty Information
This product has a limited warranty of 60 months for parts and 60 months for labor.
