ASUS PB328Q Specifications

Display

Display

Jump to...
  • Panel Size

    Wide Screen 32" (81.28cm) 16:9

  • Panel Backlight/Type

    VA

  • True Resolution

    2560x1440

  • Display Viewing Area (HxV)

    708.48 x 398.52mm

  • Display Surface

    Non-glare

  • Pixel Pitch

    0.277mm

  • Brightness

    300 cd/m2 (Max)

  • ASUS Smart Contrast Ratio

    100000000:1

  • Viewing Angle (CR>=10)

    178 deg. (H)/178 deg. (V)

  • Response Time

    4ms (Gray to Gray)

  • Display Colors

    1073.7M (10bit)

  • Flicker free

    Yes

  • Look-up Table

    12-bit

  • Gamma adjustment

    Yes (Support Gamma 1.8/2.0/2.2/2.4 )

  • Low Blue Light

    Yes

  • VividPixel

    Yes

  • Stereo Speakers

    3W x 2 Stereo RMS

Convenient Hotkey

Jump to...
  • Convenient Hotkey

    Blue Light Filter
    Brightness Adjustment
    Input Selection
    QuickFit
    5-way OSD Navigation Joystick

I/O Ports

Jump to...
  • Signal Input

    HDMI, D-Sub, DisplayPort, Dual-link DVI-D

  • USB Ports

    3.0x4

Signal Frequency

Jump to...
  • Analog Signal Frequency

    30 to 83 KHz (H)
    49 to 76 Hz (V)

  • Digital Signal Frequency

    Display port 29 to 130 KHz (H)
    49 to 76 Hz (V)

Power Consumption

Jump to...
  • Power On

    < 32.36 W

  • Power Saving Mode

    <0.5W

  • Power Off Mode

    0W

  • Voltage

    100-240V, 50/60 Hz

Mechanical Design

Jump to...
  • Tilt

    +25 to -5 deg.

  • Swivel

    +60 to -60 deg.

  • Pivot

    0 to +90 deg.

  • Height Adjustment

    0 to 150mm (0 to 5.91")

  • VESA Wall Mounting

    100x100mm

  • Super Narrow Bezel Design

    Yes

  • Quick Release Stand Design

    Yes

General

Jump to...
  • Security

    Kensington lock

  • Compliance and Standards

    Energy Star, BSMI, CB, CCC, CE, CU, ErP, FCC, ISO-9241-307, J-MOSS, KCC, PSE, RoHS, TCO6.0, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 8, Windows 7), RCM, KC , eStandby

  • Dimensions (WxHxD)

    735 x 625 x 242mm (28.94 x 24.61 x 9.53") (with Stand)
    734.4 x 431 x 66.85mm (28.91 x 16.97 x 2.63") (without Stand, for VESA Wall Mount)

  • Weight

    11.8kg (26.01 lbs) Approx.

  • UPC Code

    886227987504

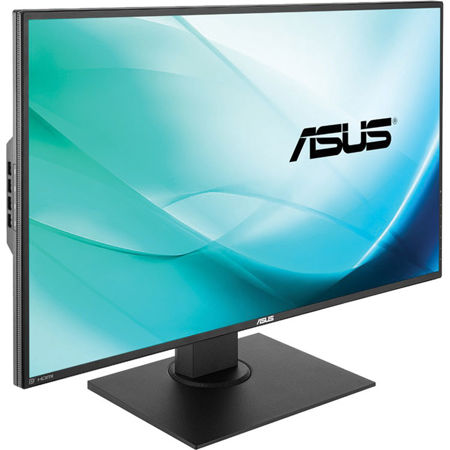

About ASUS PB328Q

True, Consistent Color

True to Life Picture Detail & Colors
PB328Q offers a wide color gamut of 100% sRGB to deliver impressive and lifelike picture quality.

10-bit color for smoother gradations
The PB328Q offers 10-bit display color for over one billion onscreen colors and support 12 bit internal lookup table (LUT), which gives smoother gradations and a more natural transition between hues.

Wide Viewing angle
178 deg. wide-viewing-angle to minimize the color shift and promise for a better viewing experience also features 100,000,000 ASUS Smart Contrast Ratio for enhanced image contrast.

See Better and Wider
The PB328Q WQHD monitor equaling four times the resolution of stand 720p sets. It allows users to view greater image detail and do more with an onscreen footprint larger than that of standard displays.

Made for Work and Play
With its WQHD display, you enjoy 77% more desktop space than a full HD screen to spread out your windows and palettes.

6-axis independent color adjustment
Customized hue and saturation control with 6 color adjustment allows you to adjust six colors (red, green, blue, cyan, magenta and yellow) independently without effecting other colors.

Hassle-free setting
The user-friendly and exclusive intuitive 5-way navigation joystick allows users to do the OSD setting with simple mind - go right, left, up or down on your OSD menu setting has never been so easy. PB328Q also features customizable OSD shortcuts through two designated hotkeys for quick address to the 8 most frequently used OSD function.

Picture-in-Picture and Picture-by-Picture
ASUS exclusive innovations Picture-in-Picture (PIP) and Picture-by-Picture (PBP) allows users to view images from different signals in almost anyway they want. PIP and PBP let users view images from different signals and let them switch between the main and PIP source, including audio, easily.

QuickFit Virtual Scale Function
ASUS included its exclusive QuickFit Virtual Scale Function with the PB328Q , allowing users to preview photos and documents on screen in their actual sizes prior to printing. It can activated via a hotkey on monitor and used as a guide to accurately view and edit photos. Additionally, the PB328Q also comes with a choice of seven different background colors for users to choose from.

Supporting Formats
• Document: A3, A4, B4, B5, letter
• Photo: 8"x10", 5"x7", 4"x6", 3"x5", 2"x2"
• Grid: Alignment, Centimeters, Inches

Ergonomic Design
As with most ASUS displays, the PB328Q is VESA-wall mount compliant and comes with a versatile stand with full tilt, swivel, pivot and height adjustment. A user-friendly Quick Release Stand for hassle-free setting.

Protect your eyes with ASUS Eye Care technology

Ultra-low Blue Light Monitor
The TUV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light and you can easily access its four different filter settings via a hotkey. PB328Q has undergone stringent performance tests and has been certified by TUV Rheinland laboratories, a global provider of technical, safety and certification services, to be flicker-free and to emit low blue light levels.

Flicker-free Technology
It's time to say goodbye to those tired, strained eyes. PB328Q features TUV Rheinland-certified ASUS Flicker-Free technology to reduce flicker for a comfortable viewing experience. This technology helps minimize instances of eyestrain and other damaging ailments, especially when you spend long, countless hours in front of a display watching favorite videos.

ASUS PB328Q Features

  • 178 deg. /178 deg. ultra wide-viewing-angle eliminates color shift for excellent visual performance
  • Provides 100% sRGB color space with WQHD resolution (2560x1440)
  • Eye care features including Flicker free, Low Blue Light, anti-glare & ergonomic adjustment stand
  • User-friendly design, super narrow bezel, 6-axis color adjustment, 5-way OSD navigation joystick, Quick release stand, QuickFit and SplendidPlus functions

What's in the box:

  • ASUS PB328Q 32" WQHD Eye Care LED Professional Monitor
  • Dual-Link DVI Cable
  • VGA Cable
  • Audio Cable
  • Power Cord
  • DisplayPort Cable
  • USB 3.0 Cable
  • HDMI Cable
  • ASUS 3 Year Limited Warranty
