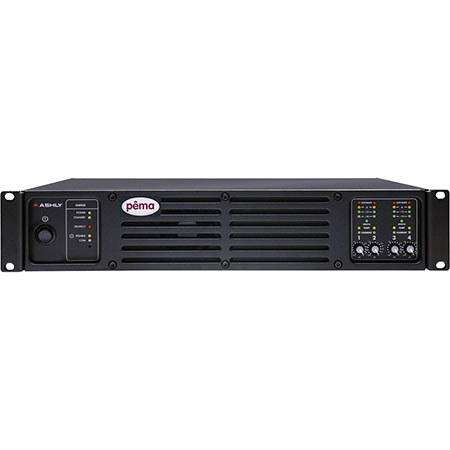

Ashly Pema 4-Channel Network Power Amplifier with 8 x 8 DSP Matrix Mixer
See all Ashly items

Ashly Pema 4-Channel Network Power Amplifier with 8x8 DSP Matrix Mixer, 125W at 4 Ohms, 25V, 20Hz-20kHz Frequency Response

SKU: ASPEMA4125
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ashly Pema 4-Channel Network Power Amplifier with 8 x 8 DSP Matrix Mixer Specifications

  • Power Output

    Low Z models, Stereo Mode, all channels driven:
    8 Ohms 20Hz-20kHz 1% THD: 75W
    4 Ohms 20Hz-20kHz 1% THD: 125W
    Low Z models, Bridge Mode, all channels driven:
    8 Ohms 20Hz-20kHz 1% THD: 250W
    70V, 100V distributed output models:
    20Hz-20kHz 1% THD, per channel: 125W

  • Current Draw

    120V, all channels driven:
    Line Current, Standby mode: 190mA
    Line Current, Idle (no signal): 540mA
    Line Current, Typical (1/8 power pink noise): 1.70A
    Line Current, Maximum (1/3 power sine wave): 3.72A

  • Online Thermal Dissipation

    BTU/hr, Standby mode: 46.7
    BTU/hr, Idle (no signal): 123
    BTU/hr, Typ (1/8 power pink noise): 232
    BTU/hr, Max (1/3 power sine wave): 251

  • Signal to Noise

    20Hz-20kHz, Unweighted: >102dB

  • Input Sensitivity (Low Z models)

    3.2dBu

  • Voltage Gain

    26dB (Low Z models)
    32dB (70V models)
    35dB (100V models)

  • Damping Factor

    >250 (8 Ohms load <1kHz)

  • Input High Pass Filter

    80Hz 2nd order

  • Distortion (SMPTE, typical)

    <0.5%

  • Distortion (THD-N, typical)

    <0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)

  • Channel Separation

    -80dB (dB from full output, 1kHz)

  • Frequency Response

    20Hz-20kHz, +/-1dB

  • Mic/Line Input Impedance

    4.8kOhms

  • Mic/Line Maximum Input Level

    +21dBu

  • Mic/Line Preamp Gain

    0, +20dB, +40dB, +60dB

  • Mic/Line Phantom Power

    +15V, switchable ch. 1-4, 5-8

  • Summed Mono

    3.16kOhms (Input Impedance)
    +11dBu (Maximum Input Level)

  • Channel 1 TEL-PBX

    3.9kOhms (Input Impedance)
    +21dBu (Maximum Input Level)

  • Preamp Output Maximum Level

    +8dBu

  • AUX Output Maximum Level

    +20dBu

  • Environmental Temperature

    40-120 deg. F / 4-49 deg. C (noncondensing)

  • Controls

    Ethernet 10/100, Channel 1 TEL-PBX Switch, Remote Standby, 4X Preset Recall, 8X Remote LeveL, Remote Data

  • Connectors (each channel)

    Input: Euroblock
    Output: Euroblock

  • AC Mains

    120V AC or 240V AC, +/-10%, 50-60Hz

  • Power Cable Connector

    15A Edison, 3-Prong IEC

  • Airflow

    IN through sides, OUT through front

  • Dimensions (W x H x D)

    19 x 3.5 x 16.84" / 48.26 x 8.89 x 42.77cm

  • Weight

    23.59lbs / 10.7kg

About Ashly Pema 4-Channel Network Power Amplifier with 8 x 8 DSP Matrix Mixer

The Ashly Pema 4-Channel Network Power Amplifier with 8 x 8 DSP Matrix Mixer is a powerful and flexible All-in-One solution for routing and amplifying audio in multi-zone installations, houses-of-worship, retail spaces, restaurants, bars and much more. The pema series offers extensive DSP control, making it virtual integrated PA solution "in a box". Simply connect the audio input sources and speakers and easily mix and route audio signal, control compression, gate, EQ, ducker parameters and much more.

There are 8 inputs and 8 outputs via Euroblock I/O and 8 built-in mic preamplifiers with phantom power. Both stereo and summed mono outputs are supplied and a dedicated telephone / PBX input is also standard. Pristine audio throughput is ensured with 24-bit A/D-D/A audio resolution and 96kHz or 48kHz sample rates supported. A wide array of control includes automatic feedback suppression, ambient noise control, adjustable HP and LP filters and more.

Ashly Pema 4-Channel Network Power Amplifier with 8 x 8 DSP Matrix Mixer Features

  • CobraNet and Dante network audio fully supported
  • FIR Filter capable
  • 8-in x 8-out sophisticated matrix mixing
  • 8 built-in mic pre's
  • Gain sharing automatic microphone mixing (Automixer)
  • Automatic feedback suppression
  • Ambient noise compensation
  • Dedicated telephone/PBX input
  • Dual RCA and balanced euroblock inputs
  • Post DSP AUX line level outputs
  • Stereo summed to mono
  • Event scheduling (RTC) and Adjustable HP/LP filters
  • Built-in pink/white noise & sine wave generator
  • Full suite of Ashly Protea DSP and Hot-plug DSP placement
  • 96kHz or 48kHz sample rate and 32-Bit SHARC DSP
  • 24-Bit A/D-D/A audio resolution
  • 15V phantom power for mic inputs
  • Full control using Ashly software over 10/100 baseT Ethernet
  • Easy and intuitive user interface
  • Automatic DHCP network IP configuration
  • Euroblock connectors for preset recall, DC remote level control and serial data control
  • Stand-By mode activation via contact closure
  • External control via Ashly standard wall remotes, Ashly Ethernet wall remotes or Ashly Remote iPad App
  • Level control via variable DC control voltage and Multi-level Security

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • CobraNet and Dante network audio fully supported
  • FIR Filter capable
  • 8-in x 8-out sophisticated matrix mixing
  • 8 built-in mic pre's
  • Automatic feedback suppression
  • Ambient noise compensation

What's in the box:

  • Ashly Pema 4-Channel Network Power Amplifier with 8 x 8 DSP Matrix Mixer
  • Ashly 5 Year Limited Warranty
