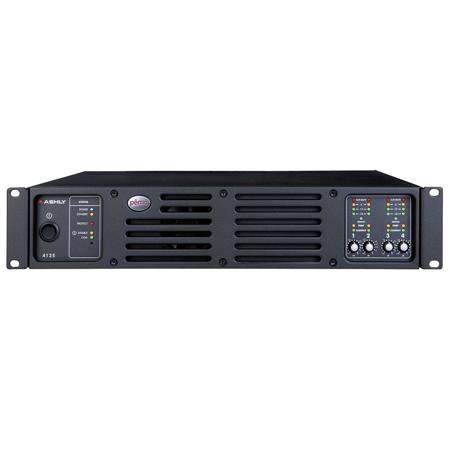

Ashly PEMA Series Four-Channel 125W 70V Protea-Equipped Media Amplifier

SKU: ASPEMA412570 MFR: PEMA4125.70
Earn VIP Reward Points

Key Features

  • Experience exceptional audio clarity with this Ashly power amplifier's clean sound quality.
  • This 4-channel power amplifier delivers reliable performance for professional audio applications.
  • Enjoy input/output flexibility with Euroblock connectors for seamless audio system integration.
  • The durable build of this Ashly amplifier ensures long-lasting performance in any environment.
  • Perfect for installations, this media amplifier offers high power output at 125W per channel.
  • Optimize your sound with Protea-equipped DSP, offering precise audio control and customization.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ashly PEMA 4125.70 Specifications

Amplifier

Amplifier

Jump to...
  • Channels

    4

  • Constant Voltage

    70V (per channel): 125W; 20Hz-20kHz, 1% THD, All Channels Driven

  • Line Current Draw: Standby Mode

    190mA

  • Line Current Draw: Idle (no signal)

    590mA

  • Line Current Draw: Typical

    1.70A (1/8 power pink noise)

  • Line Current Draw: Maximum

    3.27A (1/3 power pink noise)

  • Thermal Dissipation: Standby Mode

    46.7 BTU/hr

  • Thermal Dissipation: Idle (no signal)

    123 BTU/hr

  • Thermal Dissipation: Typical

    232 BTU/hr (1/8 power pink noise)

  • Thermal Dissipation: Maximum

    251 BTU/hr(1/3 power pink noise)

  • Signal to Noise

    >102dB (20Hz-20kHz, Unweighted)

  • Input Sensitivity

    7.2dBu

  • Voltage Gain

    32dB

  • Damping Factor

    >250 (8 Ohm load, <1kHz)

  • Distortion

    <0.5% (SMPTE, typical)
    <0.5% (THD-N, typical, 8 Ohm, 10dB below rated power, 20Hz-20kHz)

  • Channel Separation

    -80dB (dB from full output, 1kHz)

  • Frequency Response

    20Hz-20kHz, +/-1dB

  • Mic/Line Input Impedance

    4.8k Ohms

  • Mic/Line Maximum Input Level

    +21dBu

  • Mic/Line Preamp Gain

    0, +20dB, +40dB, +60dB

  • Mic/Line Phantom Power

    +15V, switchable Channel 1-4, 5-8

  • Summed Mono

    3.16k Ohm (Input Impedance)
    +11dBu (Maximum Input Level)

  • Channel 1 TEL-PBX

    3.9k Ohm (Input Impedance)
    +21dBu (Maximum Input Level)

  • Preamp Output Maximum Level

    +8dBu

  • AUX Output Maximum Level

    +20dBu

  • Rear Panel Controls

    Ethernet 10/100, Channel 1 TEL-PBX Switch, Remote Standby, Preset Recall (4), Remote Level (8), Remote Data

  • Connectors (each channel)

    Input: Euroblock
    Output: Euroblock

  • LED Indicators: Unit Status

    Power: Switch: On, Off (Blue)
    Standby: Standby, flashing (Yellow)
    Protect: On, Off (Red)
    Disable: On, Off (Yellow)
    COM: On, for Ethernet data or Device ID (Green)

  • LED Indicators: Each Channel

    Signal level: Clip/Mute (Red); -6dB (Yellow) and -18dB, -12dB (Green)
    Bridge: Per Channel Pair (Green)
    Temp: Per Channel (Yellow)
    Current: Per Channel: Proportional to output (Green)

  • Audio Connections

    1 Euro connector balanced input, selectable for Mic, Line or TEL-PBX
    7 Euro connector balanced inputs, software selectable for Mic or Line
    8 pairs of unbalanced, summed mono RCA connectors optimized for consumer line level (-10dBV nominal) devices
    8 Euro connector Preamp/Aux outputs
    4 Euro connector speaker outputs
    CobraNet and Dante Digital I/O options

  • AC Mains

    120VAC or 240VAC, +/-10% 50-60Hz

  • Power Cable Connector

    15A Edison, 3-Prong IEC

  • Airflow

    IN through sides, OUT through front

  • Environmental

    40 to 120 deg. F (4 to 49 deg. C) noncondensing

  • Input Source Select

    Analog, Auto (Net, AES3, Analog)

  • Brick Wall Limiter: Threshold

    -20dBu to +20dBu

  • Brick Wall Limiter: Ratio

    Infinite

  • Brick Wall Limiter: Attack

    0.2ms/dB to 50 ms/dB

  • Brick Wall Limiter: Release

    5ms/dB to 1000ms/dB

  • Compressor: Threshold

    -20dBu to +20dBu

  • Compressor: Ratio

    1.2:1 to infinite

  • Compressor: Attack

    0.2 to 50ms

  • Compressor: Release

    5ms/dB to 1000ms/dB

  • Compressor: Detector

    Peak/Average

  • Compressor: Attenuation Bus

    2 available

  • Compressor: Metering

    In, Out, Attenuation, Graphical

  • AutoLeveler Controls: Target Level

    -40dBu to +20dBu

  • AutoLeveler Controls: Action

    Gentle, normal, aggressive, user defined

  • AutoLeveler Controls: Maximum Gain

    0dB to +22dB

  • AutoLeveler Controls: Metering

    Input, Gain, Attenuation

  • AutoLeveler Controls: Ratio

    1.2:1 to 10:1

  • AutoLeveler: Threshold Below Target

    -30dB to 0dB

  • AutoLeveler Controls: Gain

    5ms/dB to 1000ms/dB (Increase/Decrease Rate)

  • AutoLeveler Controls: Hold Time

    0-6 sec

  • Ambient Noise: Max Gain

    -20dB to +20dB

  • Ambient Noise: Min/Base Gain

    -40dB to +20dB

  • Ambient Noise: Gain Change Rate

    0.2s/dB to 20s/dB

  • Ambient Noise: Link Group

    16 available

  • Ambient Noise: ANC Input Channel

    1-4 or 1-8

  • Ambient Noise: Noise Threshold

    -40dBu to +20dBu

  • Ambient Noise:Program/Ambient Gain Ratio

    0.3:1 to 3:1

  • Ambient Noise: Metering

    Input level, Attenuation, Average noise

  • Ducking: Trigger Threshold

    -80dBu to +20 dBu

  • Ducking: Ducking Release

    5ms/dB to 1000ms/dB

  • Ducking: Ducking Depth

    0dB to -30dB, infinity

  • Ducking: Enable Ducking at Matrix Mixer

    Yes

  • Ducking: Metering

    Input

  • Gate: Threshold

    -80dBu to +20dBu

  • Gate: Range

    Off, 100dB to 0dB

  • Gate: Attack

    0.2ms/dB to 50 ms/dB

  • Gate: Release

    5ms/dB to 1000ms/dB

  • Gate: Metering

    Key Signal, Gate LED, Graphical

  • Key Engage Enable

    Yes

  • Key Frequency

    20Hz to 20kHz

  • Key Bandwidth

    0.016 to 3.995 Octave

  • Gain (with/without VCA)

    -50dB to +12dB, off, polarity invert

  • Gain Digital VCA Groups

    4 available

  • Remote RD8C Gain

    Enable per channel, 0dB to infinity

  • WR-5 (neWR-5) Remote Gain

    0 to -50dB, Mute

  • EQ: File Type

    .csv, .fir (Output only, 48kHz only, 2-384 Taps)

  • EQ: 31-Band Filter Type

    Constant Q or proportional

  • EQ: Bandwidth

    0.499oct to 0.25oct

  • EQ: Parametric 2,4,6, or 10 Band

    Frequency: 20-20kHz
    Level: -30dB to +15dB
    Q Value: 0.016 to 3.995 Octave

  • EQ: Hi/Low Shelf 6/12 dB/oct

    Frequency: 20Hz-20kHz
    Level: -15dB to +15dB

  • EQ: All Pass

    Frequency: 20Hz-20kHz

  • EQ: Variable Q HP/LP

    Frequency: 20Hz-20kHz
    Q Value: 3.047 to 0.267

  • EQ: Notch/Bandpass

    Frequency: 20Hz-20kHz
    Q Value: 92.436 to 0.267

  • Feedback Suppressor: Filters

    12

  • Feedback Suppressor: In/Out per filter

    Yes

  • Feedback Suppressor:Filter & global lock

    Yes

  • Feedback Suppressor: Filter Modes

    Float, Restricted, Manual

  • Feedback Suppressor: Filter Type

    Notch, Parametric

  • Feedback Suppressor: Filter Frequency

    Range 20Hz to 20kHz

  • Feedback Suppressor: Notch Filter

    Infinity

  • Feedback Suppressor: Parametric Filter

    +15dB to -30dB

  • Feedback Suppressor: Filter Bandwidth

    0.016 to 3.995 Octave

  • Feedback Suppressor:Detector Sensitivity

    5 levels

  • Feedback Suppressor: Float Time

    5 minutes to 24 hours

  • Crossover: 2/3/4 Way & HP/LP Filters

    Bessel & Butterworth Filters: 12/18/24/48 dB/oct
    Linkwitz-Riley Filter: 12/24/48 dB/oct
    Frequency: Off, 20Hz-20KHz

  • Speaker Delay at 48kHz Sampling Rate

    0-21ms (Input Time, Distance & Temperature)

  • Delay at 48kHz Sampling Rate

    0-682ms (Input Time, Distance & Temperature)

  • Speaker Delay at 96kHz Sampling Rate

    0-10.6ms (Input Time, Distance & Temperature)

  • Delay at 96kHz Sampling Rate

    0-341ms (Input Time, Distance & Temperature)

  • Audio Metering Tool: Range

    -60dBu to +20dBu

  • Audio Metering Tool: Increments

    1dB

  • Audio Metering Tool: Peak Hold Indicator

    Yes

  • Signal Level

    Off, -50dBu to +20dBu

  • Sine Wave Frequency

    20Hz-12kHz

  • Matrix Mixer: Gain (0.5dB increments)

    Off, -50 to +12dB

  • Matrix Mixer: Mute

    Per channel

  • Auto-mixer Enabled

    Per channel

  • Global Auto-mixer Response

    0.01sec to 2sec

  • Enable Ducking at Mixer

    Yes

  • Ducking LED

    Per channel, if enabled

  • Metering

    Level, auto-mixer level

  • Input A/D, Output D/A

    24 bit

  • DSP Processors

    32-bit floating point

  • Sample Rates

    48kHz, 96kHz

  • Propagation Delay at 48kHz

    1.42ms

  • Propagation Delay at 96kHz

    0.71ms

General

Jump to...
  • Dimensions (WxHxD)

    19 x 3.5 x 16.84" (48.26 x 8.89 x 42.77cm)

  • Weight

    23.5 lbs (10.66kg)

About Ashly PEMA 4125.70

Let the PEMA Series Four-Channel 125W 70V Protea-Equipped Media Amplifier redefine your audio experience. This powerful and high-quality amplifier is designed to deliver superior sound quality, making it an ideal choice for large venues or high-powered sound systems.

This advanced amplifier is equipped with a built-in DSP, providing seamless network control and efficient signal processing. With a high power output of 125 watts per channel at 8 ohms, this durable amplifier ensures robust performance for all your audio needs.

The PEMA Series Amplifier sets a new standard in the industry, combining open-architecture DSP functionality with high-performance amplifier capabilities in a compact two-rack space unit. This efficient design not only reduces overall system cost but also simplifies installation and programming.

Experience full 96kHz performance on 32-bit SHARC processors for utterly transparent audio. The amplifier supports CobraNet and Dante network audio, with Dante Transmit now available. It also features FIR Filter capability, 8-in x 4-out sophisticated matrix mixing, and 8 built-in mic pre's.

The PEMA Series Amplifier also includes a suite of advanced features such as automatic feedback suppression, ambient noise compensation, dedicated telephone/PBX input, and adjustable HP/LP filters. It also comes with a built-in pink/white noise & sine wave generator, full suite of Ashly Protea DSP, and hot-plug DSP placement.

Control is made easy with Ashly software over 10/100 baseT Ethernet, providing an intuitive user interface. The amplifier also features automatic DHCP network IP configuration and Euroblock connectors for preset recall, DC remote level control, and serial data control.

The PEMA Series Four-Channel 125W 70V Protea-Equipped Media Amplifier is not just a device, but a comprehensive solution for your audio needs. With less cabling, less rack space, and less installation time, it delivers an elegant solution using proven DSP and amplifier technology.

Experience the power of advanced audio technology with the PEMA Series Four-Channel 125W 70V Protea-Equipped Media Amplifier.

Ashly PEMA 4125.70 Features

  • CobraNet and Dante network audio fully supported, Dante Transmit now available.
  • FIR Filter capable
  • 8-in x 8-out sophisticated matrix mixing
  • 8 built-in mic pre's
  • Gain sharing automatic microphone mixing (Automixer)
  • Automatic feedback suppression
  • Ambient noise compensation
  • Dedicated telephone/PBX input
  • Dual RCA and balanced euroblock inputs
  • Post DSP AUX line level outputs
  • Stereo summed to mono
  • Event scheduling (RTC)
  • Adjustable HP/LP filters
  • Built-in pink/white noise & sine wave generator
  • Full suite of Ashly Protea DSP
  • Hot-plug DSP placement
  • 96kHz or 48kHz sample rate
  • 32-Bit SHARC DSP
  • 24-Bit A/D-D/A audio resolution
  • 15V phantom power for mic inputs
  • Full control using Ashly software over 10/100 baseT Ethernet
  • Easy and intuitive user interface
  • Automatic DHCP network IP configuration
  • Euroblock connectors for preset recall, DC remote level control and serial data control
  • External control via Ashly standard wall remotes, Ashly Ethernet wall remotes or Ashly Remote iPad App
  • Level control via variable DC control voltage
  • Stand-By mode activation via contact closure
  • Multi-level Security
  • Safety/Compliance: TUV, CE, FCC, RoHS

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience exceptional audio clarity with this Ashly power amplifier's clean sound quality.
  • This 4-channel power amplifier delivers reliable performance for professional audio applications.
  • Enjoy input/output flexibility with Euroblock connectors for seamless audio system integration.
  • The durable build of this Ashly amplifier ensures long-lasting performance in any environment.
  • Perfect for installations, this media amplifier offers high power output at 125W per channel.
  • Optimize your sound with Protea-equipped DSP, offering precise audio control and customization.

What's in the box:

  • Ashly PEMA Series Four-Channel 125W 70V Protea-Equipped Media Amplifier
  • Ashly 5 Year Limited Warranty
