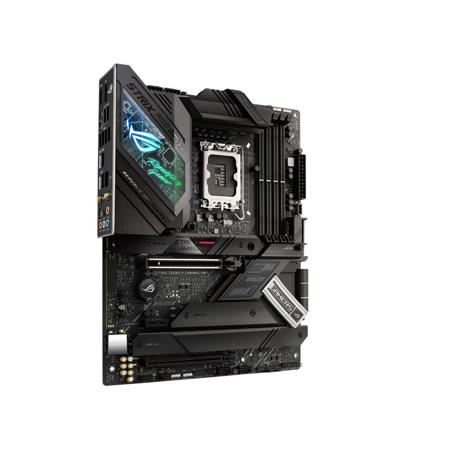

ASUS ROG Strix Z690-F Gaming Wi-Fi DDR5 LGA1700 ATX Motherboard

ROG Strix Z690-F Gaming WiFi offers premium-grade power delivery and cooling to unleash the full force of 12th Gen Intel Core processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe 5.0 video cards. Plus, ASUS-exclusive intelligent controls help optimize PC settings, while onboard WiFi 6E can bring lightning-fast data transfers to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly.

All-round Performance
ROG Strix Z690-F Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.

Power Design
Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.

Power Stages
16+1 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering power and efficiency that the latest Intel processors can take full advantage of.

Alloy Chokes and Durable Capacitors
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

8+8 PIN PROCOOL II POWER CONNECTOR
ASUS ProCool II connectors are built to tight specifications to ensure full contact with power supply cable wiring. A metal sheath improves heat dissipation, and low electrical impedance helps prevent hotspots and bolsters reliability.

Digi+ Power Control
The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultrasmooth and clean power delivery to the CPU.

Six-Layer PCB
Multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

Cooling

Cooling Innovation: VRM

Integrated I/O Cover & VRM Heatsinks
Two thick VRM heatsinks connected by a heat pipe and bonded to a pre-mounted metal I/O shield provide ample surface area and mass to handle the power needs of high-performance 12th Gen Intel processors.

Thermal Pads
Specially engineered thermal pads efficiently transfer heat from the inductor and phase array to the heatsink.

M.2

Four M.2 Heatsinks
Multiple M.2 heatsinks help maintain onboard M.2 NVME SSDs at optimal temperatures for consistent performance and reliability.

M.2 Backplate
An integrated M.2 backplate helps ensure that high-performance drives deliver peak performance, even when airflow is restricted.

Cooler by Design
ROG Strix Z690 motherboards feature comprehensive cooling options that are configurable via the Fan Xpert 4 tool in Armoury Crate or within the UEFI BIOS.

CPU fan headers
A dedicated pair of PWM/DC fan headers for CPU coolers

AIO pump fan header
A dedicated PWM/DC header for self-contained water-cooling setups

M.2 heatsink
Keeps a mounted M.2 SSD at the optimum operating temperature for consistent performance and reliability.

M.2 backplate
Provides additional heat dissipation to deal with the thermal load of high-performance M.2 NVME SSDs

4-pin PWM/DC fan headers
Headers that supports auto-detection of PWM or DC fans

Intelligent Control

Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.

• 500M Deep-learning Database
• Audio Input/output
• High Fidelity
• Minimal Performance Impact

AI Overclocking
ROG AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings.

Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners.

AI Overclocking At A Glance

Designed by experts
At the heart of AI Overclocking is a proprietary algorithm developed by ROG R&D engineers who worked with world-renowned overclockers to create a tool for users of all levels.

Predictive edge
An algorithm analyzes your CPU and cooling system, then it leverages that data to intelligently predict optimal settings. Custom-tailored frequencies and voltages are automatically applied to perfect the clock-speed optimization process.

Real-time adjustments
Workload, system temperature, fan speed and power draw are automatically monitored by the software, and the information is used to make real-time adjustments to ensure ongoing optimal performance.

AI Overclocking Guide
The AI Overclocking Guide provides detailed information and instructions about how to tune your system manually. It can be accessed by hitting the F11 hotkey.

Core group loading
For the high-core-count processors in the Z690 series, AI Overclocking software lists data according to core group. This gives you adaptive control based on the status of core groups, and it provides target frequencies and voltages needed for manual tuning.

AI overclocking in AI Suite
Onboard intelligence lets you automate overclocking with full, flexible control via 5-Way Optimization within AI Suite (in Windows).

AI Cooling
ASUS AI Cooling technology automatically manages and controls motherboard-connected fans to ensure optimal settings based on current system load and temperature.

Self-Adaptive Fan Tuning

CPU temperature detection
AI Cooling detects CPU temperatures and uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system and keep fan noise down.

Automated optimization
Under stable system loads, the software then automatically lowers fan speed to the optimal setting, decreasing fan noise without compromising performance.

Ongoing monitoring
AI Cooling continues to monitor the system and adjust fan speed based on current load.

Automatic Cooling
AI Cooling can easily be activated via the Fan Xpert 4 dashboard in ASUS AI Suite 3. Once activated, it will override all manual controls.

Manual Cooling
For those who prefer manual control, AI Cooling provides reference points on a graph that details fan speed in relation to temperature, providing a guide for fan settings.

AI Networking
The proprietary ROG GameFirst VI utility is designed to help all users - beginners, experts, and everyone in between - optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technologies to ensure faster and smarter network optimization.

How It Works

Identification
GameFirst VI analyzes usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps.

Boost
GameFirst VI intelligently switches application priority and adjusts bandwidth, depending on the situation. When gaming, it accelerates and prioritizes game packets to give you supersmooth online gameplay - even when you're streaming high-quality video or transferring large files.

Visualization
An intuitive graph provides an overview of real-time network status. Simply click on the tab to view the current bandwidth usage of each application, geolocation status of each network connection, or an analysis of the WiFi channels.

What It Does

Adaptive Intelligence
GameFirst VI notes what you're currently doing and adjusts bandwidth accordingly to ensure smooth online experiences, even when multitasking.

Gaming First Mode
Gaming First mode leverages a massive application database and an analysis of your frequently used apps to prioritize gaming network traffic. This reduces jitter and decreases ping to give you lag-free online gaming.

Network Insight
WIFI Quick Assist analyzes network information and generates a graph to give you a clear picture of current network status. In addition, when paired with an ROG router, you can scan your WiFi network to find the best channel and use Game Boost to prioritize gaming devices and packets.

Leading Connectivity
ROG Strix Z690-A Gaming WiFi D4 delivers wickedly fast connectivity for supersmooth online experiences and ultrafast data transfers. Add alongside those perks, we've managed to cram in an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

Storage & Memory

DDR5 Overclocking Strength - ASUS Enhanced Memory Profile
Comprehensive memory tuning options are the cornerstone of ROG motherboards.
