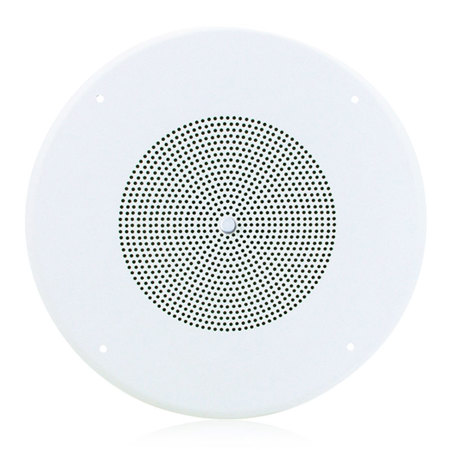

Atlas Sound SD72WV 8" Dual Cone In-Ceiling Speaker with Volume Control, White, Single

Before you make your decision, consider the SD72WV 8" Dual Cone In-Ceiling Speaker, a high-quality, durable, and efficient audio solution from the reputable brand, Atlas Sound. This versatile speaker is the successor to Atlas's acclaimed C-Series, carrying forward its superior sonic qualities.

The SD72WV is a robust 25-watt speaker, featuring an 8" (205mm) diameter and a hefty 10oz. (260g) ceramic magnet. It boasts a curvilinear, treated paper cone, designed to minimize harmonic distortion and deliver clear, crisp sound. The speaker is powered by a full 1" diameter copper voice coil, coupled with a black anodized aluminum former for enhanced power dissipation.

Operating within a frequency response range of 45Hz-19kHz (nominal), the SD72WV ensures a broad spectrum of sound, with a sensitivity of 97dB and a dispersion angle of 105 degrees. This ensures a wide coverage area for optimal sound distribution.

The speaker comes with a factory-installed 25/70.7V line matching transformer, offering tap selections ranging from .25 to 5 watts, providing flexibility for various audio requirements. The SD72WV also includes a factory-installed CRS baffle with concealed speaker mounting studs and screw mount hardware, making installation a breeze.

The baffle, compatible with most AtlasIED 8" tile bridges, mounting rings, and enclosures, matches the dimensions of the AtlasIED Model 62-8. It features a white powder coat epoxy finish for a sleek, modern aesthetic.

The baffle-mounted volume control, with a 5-watt audio rating, is factory wired to the voice coil, offering easy and convenient sound adjustments. Units are shipped assembled, ready for installation, making the SD72WV 8" Dual Cone In-Ceiling Speaker a reliable and efficient choice for your audio needs.
