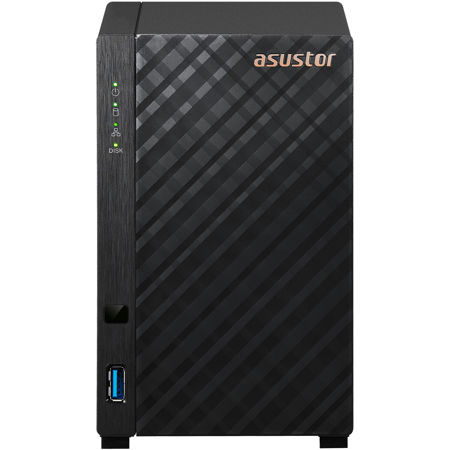

ASUSTOR Drivestor 2 AS1102T Specifications

Hardware

Hardware

Jump to...
  • CPU

    Model: Realtek RTD1296
    Architecture: ARM64 64-bit
    Frequency: Quad-Core 1.4GHz

  • Memory

    1GB DDR4

  • Memory Expandable up to

    Not expandable

  • Flash Memory

    8GB eMMC

  • HDD

    2x SATA3 6Gb/s; 3.5" HDD

  • Maximum Internal Raw Capacity

    36 TB (18 TB HDD X 2, Capacity may vary by RAID types)

  • Maximum Drive Bays with Expansion Unit

    14

  • Maximum Raw Capacity

    With Expansion Units: 180 TB (18 TB HDD X 10, Capacity may vary by RAID types)

  • Expansion Port

    USB 3.2 Gen 1 x2

  • Network Port

    2.5 Gigabit Ethernet (2.5G/1G/100M) x 1

  • HDMI Output Port

    No

  • System Fan

    70mm x 1

  • Power Supply Unit / Adapter

    65W x1

  • Input Power Voltage

    100V to 240V AC

  • Certification

    FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC

  • Power Consumption

    11.6W (Operation) 5.97W (Disk Hibernation)

  • Noise Level

    18.6dB (HDD idle)

  • Operation Temperature

    32 Degree F-104 Degree F (0 Degree C-40 Degree C)

  • Humidity

    5% to 95% RH

  • Dimensions (H x W x D)

    6.5 x 4.01 x 8.9" (165 x 102 x 218mm)

  • Weight

    2.5 lbs (1.14kg)

Software

Jump to...
  • Supported OS

    Windows XP, Vista, 7, 8, 10, Server 2003, Server 2008, Server 2012, Server 2016, Server 2019
    macOS
    UNIX, Linux, and BSD

  • Supported Browsers

    Firefox
    Chrome
    Safari
    Microsoft Edge

  • Network Protocols

    CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog

  • Connection and transmission

    TCP/IP (IPv4 & IPv6)
    Link Aggregation: 0
    Jumbo Frame (MTU)
    VLAN
    EZ Connect
    Wireless Network
    DDNS and EZ-Router
    Supports Wake-on-LAN (WOL)
    Supports Wake-on-WAN (WOW)

  • File System

    Internal Disk: EXT4
    External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT

  • File Explorer

    Web-based File Management
    ISO File Mounting
    Share Links
    Task Monitor
    Browse Files on Local PC
    Thumbnail Previews
    Data Access via External Optical Drive
    Supports video playback

  • Network Recycle Bin

    Share folder-based
    Maintains original directory structure and file permission
    On-click restore
    Supports scheduled emptying

    Filtering rules
    File size
    File extension

    Deletion Settings
    File size
    File date

  • RAID

    Volume Type: Single, JBOD, RAID 0, RAID 1
    Support for Online RAID Level Migration

  • iSCSI/IP-SAN

    Maximum Targets: 256
    Maximum LUNs: 265
    Maximum Snapshot Versions of a Single LUN: 256
    Target Masking
    LUN Mapping
    ISO File Mounting
    Supports MPIO
    Persistent (SCSI-3) Reservations

  • Disk Management

    Scheduled Bad Block Scans
    Scheduled S.M.A.R.T Scans

  • Access Control

    Maximum Number of Users: 4096
    Maximum Number of Groups: 512
    Maximum Number of Shared Folders: 512
    Maximum Number of Concurrent Connections: 512
    Supports Windows Active Directory
    Supports Windows Active Directory / LDAP

  • ACL

    Provides both Windows ACL and Linux ACL permission configuration methods
    Can enable Windows ACL for specific shared folders
    Comprehensive support for Windows' 13 types of advanced permission settings
    Can view Windows ACL permission settings from within ADM
    Supports local users and groups
    Exclusive permission reset function allows users to quickly restore default permissions

  • System Administration

    Log Type: System Log, Connection Log, File Access Log
    Real-time Online User Monitor
    Real-time System Monitor
    User Quota
    Virtual Drive (ISO Mounting, Maximum 16)
    UPS Support

  • Security

    AES 256-Bit Encryption
    Firewall: Prevent Unauthorized Access
    Alert Notifications: E-mail, SMS
    Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
    Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/6/61/62/63/64/65/66/70/71 Series

  • Network Defender

    Auto black list
    Trusted list
    Black/White list
    Supports IP/IP range/geolocation

  • Backup Solutions

    Rsync (Remote Sync) Backup
    Cloud Backup
    FTP Backup
    External Backup
    EZ Sync

  • Snapshots

    iSCSI Snapshots
    Support up to 256 snapshots

  • ASUSTOR Hightlight

    System Migration
    EZ Connect
    Dr.ASUSTOR
    2-way Backup
    Task Monitor

  • Eco-Friendly Design

    Auto-Standby for Both Internal and External Disks
    Auto Fan Control
    LED Night Mode
    Power Schedule: On, Off, Restart

  • Energy Control

    Configurable Disk Hibernation Wait Time

Official ASUSTOR Apps

Jump to...
  • Antivirus (ClamAV)

    Scheduled Scans
    Automatic Virus Definition Updates
    Quarantine Infected Files

  • Download Center

    Supports BT(Torrent & Magnet Link), HTTP and FTP Downloads
    Torrent Search
    Choose Files Before a BT Task Starts
    Customizable Download Schedule
    Bandwidth Control
    RSS Subscription and Automatic Downloading (Broadcatching)
    ASUSTOR Download Assistant for Windows & Mac
    AiDownload for Android with Push Notification
    Smart Download Function

  • Cloud Backup Center

    Support Amazon S3, Backblaze B2, Microsoft Azure Blob Storage, Alibaba Cloud, Baidu Cloud, IBM Cloud and Rackspace Cloud Files
    Immediate or scheduled backup
    Perform multiple backup tasks and back up multiple accounts

  • DataSync Center

    Support OneDrive, OneDrive Business, Google Drive, Dropbox, and Baidu Wangpan
    Supports file filter and bandwidth limitation

    Supported backup methods:
    Sync
    Directly upload files to Cloud from NAS
    Directly download files from Cloud to NAS

  • FTP Explorer

    Directory Structure View with Drag & Drop Transfers
    Task Monitor
    Stopping of Transmission Task & Resumption of Connection
    Encrypted Connections: Explicit over TLS, Implicit over TLS
    FTP Site Manager
    Bandwidth Control
    Maximum Simultaneous Transfer Control

  • HiDrive

    Each ADM Account is Able to Individually Log in to One HiDrive Account

    Supported Backup Methods:
    Directly Upload Files to HiDrive from NAS
    Directly Download Files from HiDrive to NAS

    Supported Protocols:
    Rsync
    FTP
    FTPS
    SFTP
    Rsync + SSH

  • Yandex

    Each ADM Account is Able to Individually Log in to One Yandex Account

    Supported Backup Methods:
    Sync
    Directly Upload Files to Yandex from NAS
    Directly Download Files from Yandex to NAS

  • LooksGood

    Built-in three main video library categories; movies, TV shows, home movies and smart video sorting management
    Efficient global search function allows for searches by keywords followed by the execution of more detailed searches for the purpose of finding categories of movies, TV shows, home movies and parameters such as actors, director, year, genre, writer and title

  • LooksGood (Contd.)

    Attractive poster wall and thumbnail display
    Automatic production of video poster thumbnails
    Centralized management and ability to configure order of favorites and playlist history

  • LooksGood (Contd..)

    System administrator is able to configure video library and editing permissions according to user preferences
    Can configure access permissions to share with friends and family
    Multimedia conversion feature
    Self-defined smart folder for video conversions
    Supports digital TV recordings via digital TV dongles
    Supports playback of videos in Apple TV via AiVideos tvOS version.

  • Photo Gallery 3

    Quickly find and view photos from a specific date in Photo Gallery 3fs timeline.
    Photo Gallery 3 sorts your photos in a smarter way. Smart albums found in Photo Gallery 3 include places, videos, recently added and favorites.
    Supports two methods to share photos, share links to other NAS users or to friends and family. All shared albums have optional encryption to protect sensitive information.

  • Photo Gallery 3 (Contd.)

    Easily understand photo metadata as well as edit photo descriptions to make photo identification easier.
    Easily find photos by keyword search.

  • Surveillance Center

    Up to 12 channels in 720p on single live view display
    On-screen camera controls including camera PTZ, manual recordings, take snapshots, configure camera settings and open Maps
    Up to 4 channels of synchronous and non-synchronous playback with audio
    Intelligent video analytics including motion detection and foreign object detection
    Supported Browsers: Microsoft Edge, Firefox, Chrome

  • Surveillance Center (Contd.)

    Event notification supports SMS, E-mail, and mobile push notification
    Automated event action rules
    Role-based access control
    AiSecure mobile app for iOS and Android with Push notification
    ONVIF Profile S, T supported
    Two different camera license packages are offered: single channel and 4 channels.

  • Surveillance Center (Contd..)

    Maximum IP Cam (4 Free Licenses; Additional Licenses to be Purchased)
    Minimum PC Client Requirements
    CPU: i5/i7 or above
    RAM: DDR3 4G or above
    Operating system Windows 7 and onward
    Windows browsers: Microsoft Edge, Chrome, FireFox
    Display resolution: 1280x800 pixels or higher for best user experience
    Network interface: Gigabit x1
    Independent graphics card is highly recommend

  • SoundsGood

    Import Personal/Public Music Collection
    Personal/Public Music Collection Permission Control
    Playlist Editor
    ID3 Tag Editor
    Local Speaker Support: HDMI, USB, Audio Jack
    Supported Audio Formats for Browser: MP3, WAV, Ogg
    Supported Audio Formats for Transcoding Through Browser: AIFF, Flac
    Supported Audio Formats for Local Speaker: MP3, WAV, Ogg, AIFF, Flac
    ASUS DAC Support

  • Takeasy

    Download from YouTube, Vimeo, Twitch and More
    Selectable Video Type and Quality
    Automatic Downloads with YouTube or Twitch Subscriptions
    Preview Downloads in Progress
    Online Playback

  • UPnP Media Server

    Supports PS3 and other Digital Media Player Capable Devices
    Supports On-The-Fly Transcoding for Most RAW Images and Audio(OGG, FLAC)
    Supported Image Formats: BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F)

  • VPN Client

    Supported VPN Protocols: PPTP, OpenVPN,
    Transmission Package Monitor
    PPTP Authentication: PAP, CHAP, MS CHAP, MS CHAP2
    PPTP Encryption: No MPPE, MPPE (40, 128 bit), Maximum MPPE (128 bit)
    OpenVPN Port Control
    OpenVPN Link Compression

  • VPN Server

    Supported VPN Protocols: PPTP, OpenVPN, and L2TP/IPsec
    View Current Connections & Ability to Disconnect Suspicious Connections
    Comprehensive Connection Log

  • RADIUS Server

    Centralized management of wireless network certification
    Using WPA-Enterprise or WPA2-Enterprise encryption
    Must be combined with a wireless router that supports RADIUS authentication

  • SNMP Server

    Supports SNMP v1, v2c, v3 and trap
    ASUSTOR NAS MIB provided

  • Syslog server

    Supports standard syslog protocol
    Graphical log monitoring by time and device
    Supports TCP and UDP
    Auto log archiving
    User-defined email notification

  • UPC Code

    4710474831319

About ASUSTOR Drivestor 2 AS1102T

All New Hardware - Same Great Case
• 2.5-Gigabit Ethernet - More than twice the performance of Gigabit
• Realtek RTD1296 Quad-Core CPU at 1.4Ghz
• DDR4 RAM - 40% more efficient
• High performance, 4K decoding
• Supports Wake on LAN and Wake on WAN

Holistic Backup Solution
• Phone backup
• PC backup
• NAS data preservation
• Cloud to NAS backup
• NAS to NAS backup
• USB backup

Brand-New ADM 4.0
ADM 4.0 is here and brings a whole host of intuitive design changes to ADM OS. The upgraded UI brings a new aesthetically-pleasing dark mode that helps to save and preserve OLED displays. ADM 4.0 introduces a new login page that contains a variety of customizable elements, a more convenient and easier-to-use quick search feature and new custom themes. Under the hood, ADM 4.0 brings improvements to performance, compatibility and security as the new version of OpenSSL plugs vulnerabilities found in previous versions, increasing security while efficiency improvements bring better performance.

Rose Gold Coloring
The all-new Rose Gold Logo is elegant and distinct, enabling easy distinction between ASUSTOR NAS models.

Realtek Quad-Core CPU and DDR4 RAM
The Drivestor 2 and Drivestor 4 are equipped with a Realtek RTD1296 1.4GHz Quad-Core 64-bit CPU. Transcode, stream and play multimedia in 4K, transfer files and easily multitask with the Drivestor series. The Drivestor handles multitasking with ease by utilizing its 1 GB of DDR4 memory ensuring that virtually any task on an ASUSTOR NAS is executed smoothly.

Efficient and Powerful
The Drivestor 2 and 4 are ASUSTOR's highest value devices ever. Transcode 10-bit 4K H.265 media with hardware decoding easily that enables unbelievably smooth video playback in LooksGood.

Media Mode
The Drivestor 2 and 4 come with 1 GB of memory. Media Mode is a new feature that efficiently reserves 512 MB of RAM for multimedia tasks as a variety of tasks require large amounts of RAM. With dedicated RAM for multimedia, video playback remains smooth and is not interrupted by other tasks.

2.5-Gigabit Ethernet - Double Speed
The Drivestor 2, despite being extremely affordable contains 2.5-Gigabit Ethernet and more than doubles the performance of comparable Gigabit-class devices.

Toolless installation
The sliding cover design found on the Drivestor makes opening your NAS easy. The inner hard drive rails and outer cover all use thumb screws making hard drive installation simple and easy without tools.

Free exFAT
exFAT is now supported free of charge in ADM 4.0 due to a policy change by Microsoft.

Ultra-quiet Operation
ASUSTOR Drivestor NAS devices produce only 19 decibels of noise when on standby, which is almost equivalent to a pin hitting the ground. Powered on, the Drivestor only emits sound levels comparable to a library at 38 decibels, allowing the device to seamlessly and comfortably integrate into almost any environment.

24/7 Reliability and Durability
All ASUSTOR NAS devices are designed for and are suitable for 24/7 use. ASUSTOR NAS devices have also undergone rigorous tests, such as drop tests and burn tests to test durability in extreme conditions. Heatsinks are added to sensitive components to dissipate heat, helping to maintain ASUSTOR's reputation for providing quality and longevity.

Protected From the Inside and Out
Protect your data from loss, damage and attacks with the Drivestor 2 and 4. A Drivestor is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus and ADM's various backup tools help protect ransomware even better.

Network Attack Protection
• Firewall
• ADM Defender

Secure Data Transmission
• VPN connection
• SSL certificate connection
• Automatic logout

Internal Data
• AES-256 folder encryption
• Antivirus software - ClamAV

Access Control
• File/folder/app isolation
• 2-Step Verification
• Wake-on-LAN (WOL)
• Wake-on-WAN (WAN)

Comprehensive Backup Solutions
ASUSTOR's comprehensive backup solution provides more than twelve backup options, including, but not limited to Amazon S3, Dropbox, Google Drive, and OneDrive. ASUSTOR Backup Plan for Windows as well as Time Machine for macOS provides easy backups for desktops and laptops.

Web Center
Easily set up a website with Web Center. Install Apache or Nginx or almost any other web server implementation and add multiple website portals for an easy-to-use web server experience.

Protected From Ransomware
The Drivestor comes with the most up-to-date version of ADM to help protect against ransomware attacks. Snapshot Center provides the ability to efficiently create snapshots to protect and easily restore lost data. Other security features found on the Drivestor are the ability to create one or more replacement administrator accounts, a firewall by ADM Defender that features blacklists and whitelists, the ability to change default ports, disable SSH, and Terminal to prevent remote attacks.

Photo Gallery 3 + AiFoto 3.0
The all new Photo Gallery 3 and AiFoto 3 have been revamped and brings a variety of new features to make photo organization easier than ever. New features for Photo Gallery 3 include, but not are limited to custom folder selection, timelines, smart albums, and new photo modes. Easily blow up photos to up to twice their size, play songs on slideshows, performance enhancements and customized share links make for an even better photo viewing and sharing experience.

ASUSTOR EZ Sync
• All new UI. Simpler and easier to operate. View NAS information quickly
• More complete settings - offering detailed folder lists. Easily select folders and files not in a folder
• Notifications for abnormal status
• Support 2-step verification increase account safety
• Improve NAS connecting and file sync system stability for better user experience

Cloud Backup Center
Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage and Alibaba Cloud. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

DataSync Center
DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox and OneDrive and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Create the Ultimate Home Multimedia Center
Enjoy electrifying digital entertainment on demand with ASUSTOR NAS. Through ASUSTOR's App Central, you can install additional multimedia server Apps such as UPnP Media Server and OwnTone giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices.

Mobile Apps
ASUSTOR's exclusive EZ Connect technology allows you to connect to your NAS from anywhere with your Mobile device in order to access and share your files. ASUSTOR mobile apps provide pass code lock functions in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.

Comprehensive Surveillance System
An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 12 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.

App Central
Unleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.

ASUSTOR Drivestor 2 AS1102T Features

  • Realtek RTD1296 Quad-Core 1.4 GHz CPU
  • Uses 1 GB DDR4 f' 40% more efficient
  • Superfast 2.5-Gigabit Ethernet
  • Enjoy, download, upload and stream content with 4K transcoding
  • Supports Wake on LAN and Wake on WAN
  • New Rose Gold logo
  • Tool-free installation

Key Features

  • Realtek RTD1296 Quad-Core 1.4 GHz CPU
  • Uses 1 GB DDR4 f' 40% more efficient
  • Superfast 2.5-Gigabit Ethernet
  • Enjoy, download, upload and stream content with 4K transcoding
  • Supports Wake on LAN and Wake on WAN
  • New Rose Gold logo

What's in the box:

  • Asustor Drivestor 2 AS1102T 2-Bay Diskless NAS
  • AC Power Cord
  • AC Power Adapter
  • RJ-45 LAN Cable (Cat 5e)
  • Thumb Screws (8x for 3.5" HDD)
  • Quick Installation Guide
  • Asustor 3 Year Limited Warranty
