Ashly TM Series 60W 3-Input Public Address Mixer/Amplifier
See all Ashly items

Ashly TM Series 60W 3-Input Public Address Mixer/Amplifier with Transformer Isolated Constant Voltage and 4 Ohms Output

SKU: ASTM360
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular

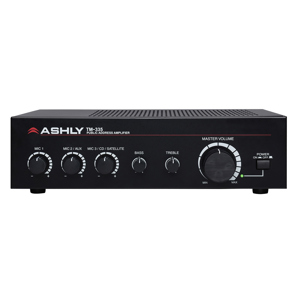

Ashly TM-335 TM Series 3-Channel 35W Compact Mixer/Amplifier
$349.00
$299.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ashly TM Series 60W 3-Input Public Address Mixer/Amplifier Specifications

  • Safety/Compliance

    cCSAus, CE, FCC, RoHS

  • Channels

    3

  • Signal to Noise (26dB Gain)

    80dB

  • Output Power: 1% THD

    60W at 4 Ohms (Max)
    30W at 8 Ohms (Max)

  • Constant Voltage Power: 1% THD

    60W at 25V
    60W at 70V

  • Line Current Draw: at 120VAC 60Hz

    (Divide values by 2 for 230VAC)
    Standby Mode: 0.15A
    Idle 0.24A
    Typical (1/8 power pink noise): 0.38A
    Max (1/3 power sine wave): 0.66A

  • Thermal Dissipation: BTU/hr

    Standby Mode: 26
    Idle: 43
    Typical (1/8 power pink noise): 53
    Max (1/3 power sine wave): 75

  • Operating Temperature

    40 to 120 deg. F / 4 to 49 deg. C), noncondensing

  • Total Harmonic Distortion

    60W (at 1kHz): < 1%

  • Frequency Response: 1W at 1kHz

    Input 1, 2, 3: +1/-3dB, 80Hz-15kHz

  • Tone Control

    Bass (100Hz): +10dB
    Treble (10kHz): +10dB

  • Input Sensitivity

    Input 1: -10dBV to -50dBV
    Input 2, 3: 0dBV to -20dBV

  • Signal-to-Noise Ratio

    60W at 1kHz, A-weighted:
    Input: 1, 2, 3 >80dB

  • Residual Noise

    Input 1-3 Volume Min, Tone Set at Center:
    Master Volume (Min): -72dB
    Master Volume (Max): -57dB

  • Zone 2 Output

    Rated Power (8 Ohms): 1W (3% THD)
    Balanced (600 Ohms): 2.4V

  • Mix Configuration Switches

    SW1: Zone 2 Assign Input 1
    SW2: Zone 2 Assign Input 2
    SW3: Zone 2 Assign Input 3
    SW4: VOX Trigger Input 1
    SW5: VOX Trigger Input 2
    SW6: Mute Link Input 2 & 3
    SW7: Low Cut, 400Hz 6dB/Oct.
    SW8: Ch1 Phantom Power, +18V

  • Contact Closure: Manual Mute

    Pins 1 & G = Input 1 Mute Trigger

  • Contact Closure: Master System Standby

    Pins G + 2 Power Standby

  • Power Requirements

    120VAC, 60Hz, 24W

  • Dimensions (W x H x D)

    11.81 x 2.01 x 9.06" / 300 x 51 x 230mm

  • Weight

    3.04kg/ 6.7lbs

About Ashly TM Series 60W 3-Input Public Address Mixer/Amplifier

The Ashly TM Series 60W 3-Input Public Address Mixer/Amplifier offers input and output flexibility coupled with energy efficiency. It uses a Class-D amplifier topology for added energy efficiency. A front panel 3.5mm TRS mini-jack makes it easy to plug-in a back-up music source, such as an mp3 player. Rear panel DIP switches allow you to select the mix going to each zone. There are 2 separate zone outputs: a 1W output for driving a remote speaker. It automatically switches into a stand-by mode if no audio input is received for 25 minutes, thus reducing the current draw. The transformer-isolated output offers a choice of lo-z (4 Ohms), 25V or 70V.

Ashly TM Series 60W 3-Input Public Address Mixer/Amplifier Features

  • One balanced mic/line input with phantom power, 2 balanced line level inputs with stereo RCA sum-to-mono inputs
  • Mute priority of inputs
  • Manual mute contact closure
  • Mini-jack input on front panel overrides channel 2-input on back
  • DIP switches for zone 2 assign vox trigger, mute priority, low-cut filter, phantom power
  • 600 Ohm pre-out for external amplifier
  • Zone 2-output, 1W / 8 Ohms, Balanced 600 Ohm
  • Power saving standby mode: audio inactivity or contact closure

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Mute priority of inputs
  • Manual mute contact closure
  • 600 Ohm pre-out for external amplifier
  • Zone 2-output, 1W / 8 Ohms, Balanced 600 Ohm
  • Power saving standby mode

What's in the box:

  • Ashly TM Series 60W 3-Input Public Address Mixer/Amplifier
  • Ashly 5 Year Limited Warranty
