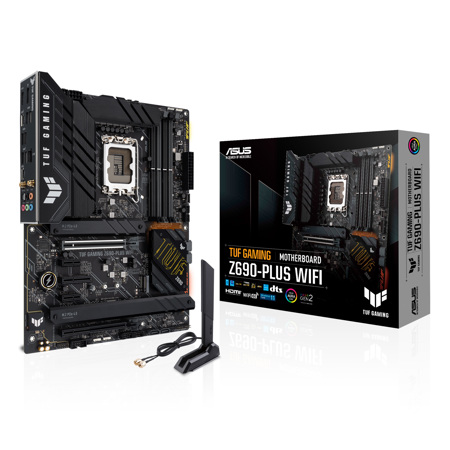

ASUS TUF Gaming Z690 Plus Wi-Fi 6E LGA 1700 ATX Gaming Motherboard

SKU: ASTZ690PW

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ASUS Z690 Plus Specifications

  • CPU

    Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

  • Chipset

    Intel Z690 Chipset

  • Memory

    4x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP)
    OptiMem II

  • Graphics

    1x DisplayPort
    1x HDMI port

  • Expansion Slots

    Intel 12th Gen Processors
    1x PCIe 5.0x16 slot
    Intel Z690 Chipset
    1x PCIe 3.0x16 slot (supports 4x mode)
    1x PCIe 3.0x4 slot
    2x PCIe 3.0x1 slots

  • Storage

    Total supports 4x M.2 slots & 4x SATA 6Gb/s ports

    Intel 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280/22110
    Intel 12th Gen processors support PCIe 4.0x4 mode

    Intel Z690 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 & SATA modes)
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0x4 mode)
    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)

  • Ethernet

    1x Intel 2.5Gb Ethernet
    TUF LANGuard

  • Wireless & Bluetooth

    Wi-Fi 6E
    2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band
    Bluetooth v5.2 hardware ready

  • USB

    Rear USB (Total 8 ports)
    1x USB 3.2 Gen 2x2 port (1x USB Type-C)
    2x USB 3.2 Gen 2 ports (2x Type-A)
    5x USB 3.2 Gen 1 ports (4x Type-A + 1x USB Type-C)

    Front USB (Total 7 ports)
    1x USB 3.2 Gen 2 connector (supports USB Type-C)
    1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2x USB 2.0 headers support additional 4 USB 2.0 ports

  • Audio

    Realtek 7.1 Surround Sound High Definition Audio CODEC
    Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Supports up to 24-Bit/192 kHz playback

    Audio Features
    Audio Shielding
    Rear optical S/PDIF out port
    Premium audio capacitors
    Dedicated audio PCB layers
    Audio Cover

  • Back Panel I/O Ports

    1x USB 3.2 Gen 2x2 port (1x USB Type-C)
    2x USB 3.2 Gen 2 ports (2x Type-A)
    5x USB 3.2 Gen 1 ports (4x Type-A + 1x USB Type-C)
    1x DisplayPort
    1x HDMI port
    1x Wi-Fi Module
    1x Intel 2.5Gb Ethernet port
    5x Audio jacks
    1x Optical S/PDIF out port

  • Internal I/O Connectors

    Fan and Cooling related
    1x 4-pin CPU Fan header
    1x 4-pin CPU OPT Fan header
    1x 4-pin AIO Pump header
    4x 4-pin Chassis Fan headers

    Power related
    1x 24-pin Main Power connector
    1x 8-pin +12V Power connector
    1x 4-pin +12V Power connector

    Storage related
    4x M.2 slots (Key M)
    4x SATA 6Gb/s ports

  • Internal I/O Connectors (Contd.)

    USB
    1x USB 3.2 Gen 2 connector (supports USB Type-C)
    1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2x USB 2.0 headers support additional 4 USB 2.0 ports

    Miscellaneous
    3x Addressable Gen 2 headers
    1x AURA RGB header
    1x Clear CMOS header
    1x COM Port header
    1x Front Panel Audio header (AAFP)
    1x 20-3 pin System Panel header with Chassis intrude function
    1x Thunderbolt header

  • Special Features

    ASUS TUF Protection
    DIGI+ VRM (-Digital power design with DrMOS)
    Enhanced DRAM Overcurrent Protection
    ESD Guards
    TUF LANGuard
    Overvoltage Protection
    Safeslot
    Stainless-Steel Back I/O

    ASUS Q-Design
    M.2 Q-Latch
    Q-DIMM
    Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    Q-Slot

  • Special Features (Contd.)

    ASUS Thermal Solution
    M.2 heatsink
    VRM heatsink design

    ASUS EZ DIY
    CPU Socket lever protector
    ProCool
    Pre-mounted I/O shield
    SafeDIMM

    AURA Sync
    AURA RGB header
    Addressable Gen 2 headers

  • Software Features

    ASUS Exclusive Software
    Armoury Crate
    AURA Creator
    AURA Sync
    Fan Xpert 4
    Two-Way AI Noise Cancelation
    AI Suite 3
    Performance And Power Saving Utility
    TurboV EVO
    EPU
    DIGI+ VRM
    TUF GAMING CPU-Z
    DTS Audio Processing
    MyAsus
    Norton Anti-virus software (Free Trial version)
    WinRAR

    UEFI BIOS
    ASUS EZ DIY
    ASUS CrashFree BIOS 3
    ASUS EZ Flash 3
    ASUS UEFI BIOS EZ Mode

  • BIOS

    192 (128+64) Mb Flash ROM, UEFI AMI BIOS

  • Manageability

    WOL by PME, PXE

  • Operating System

    Windows 11 64-bit, Windows 10 64-bit

  • Form Factor

    ATX Form Factor

  • Dimensions

    12 x 9.6" (30.5 x 24.4cm)

  • UPC Code

    195553646239

About ASUS Z690 Plus

Intel LGA 1700 Socket
Ready for 12th Gen Intel Core processors

Enhanced power solution
14+1 DrMOS rated for 80 amps, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery

Next-gen connectivity
PCIe 5.0, USB 3.2 Gen2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support

Made for online gaming
WiFi 6E, Intel 2.5 Gb Ethernet and TUF LANGuard

Two-Way AI Noise Cancelation
Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Comprehensive cooling
Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate

Outshine RGB Aura Effect
Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support

Durable. Stable. Reliable.
ASUS TUF GAMING Z690-PLUS WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING Z690-PLUS WIFI sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.

Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storage, TUF GAMING Z690 motherboards are the perfect foundation for your next high-core-count battle rig.

Power Design

Driver and MOSFET - DrMOS
The onboard VRMs feature 14+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 12th Gen Intel Core processors demand.The power stages are each rated to handle 80 amperes to provide stable performance for current and future Intel processors.

Multilayer PCB

Six-Layer PCB Design
Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds.

Power Connector

ProCool Connectors - Enhanced EATX 8-Pin and 4-Pin Connectors
• Provide extreme durability
• Prevent hotspots and connector failure

Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

System Stability - TUF Components

TUF Chokes
Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.

TUF Capacitors
Proprietary capacitors provide up to 52% wider temperature tolerance and 2.5X-longer lifespan.

Controller - Digi+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

Easy PC DIY
TUF GAMING motherboards are designed to be easy to set up and configure just the way you want - even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software provides Fan Xpert 4 and hardware information and offers full full control of Two-Way AI Noise Cancellation, RGB lighting and peripheral settings. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig, without unnecessary complexity.

TUF Gaming Alliance - Build with Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.

TUF Protection

SafeSlot & SafeDIMM
PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.

ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge - greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.

TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

DRAM Overvoltage Protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless Steel Back I/O Panel
TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that's three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.

Immersive Gaming
TUF GAMING Z690 motherboards provide a high-performance gaming package with a long list of features to improve your experiences, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

Networking

Intel WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.

Intel 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost with speeds that are up to 2.5x faster than standard Ethernet connections. This translates to incredibly fast file transfers, low-lag online gaming, and high-res video streaming.

Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.

Gaming Audio - Realtek 7.1 Surround Sound

TUF Gaming audio chip protection
Enhanced electrical shielding preserves the integrity of audio signals to ensure the best quality.

High-definition audio
Premium audio capacitors provide warm, natural and immersive sound.

Audio shielding
Our specialized audio path design separates analog and digital signal domains to significantly reduce multi-lateral interference.

Better Audio Effects

DTS Audio Processing
DTS Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.

Aura Sync RGB Lighting

Outshine the Competition
A well-tuned system deserves a matching aesthetic. TUF Gaming Z690 series features edge lighting to enhance its rugged look, and now the PCH heatsink gets RGB lighting to take the style even further. ASUS Aura offers full RGB control with a variety of functional presets for built-in LEDs as well as third-party strips you can connect to onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Addressable Gen 2 RGB Header
The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices.

ASUS Z690 Plus Features

  • Ready for 12th Gen Intel Core processors
  • 14+1 DrMOS rated for 80 amps, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
  • WiFi 6E, Intel 2.5 Gb Ethernet and TUF LANGuard
  • Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
  • Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
  • Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support

Key Features

  • Ready for 12th Gen Intel Core processors
  • 14+1 DrMOS rated for 80 amps, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors
  • WiFi 6E, Intel 2.5 Gb Ethernet and TUF LANGuard
  • Reduces background noise from the microphone and audio output for crystal-clear communication
  • Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers
  • Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support

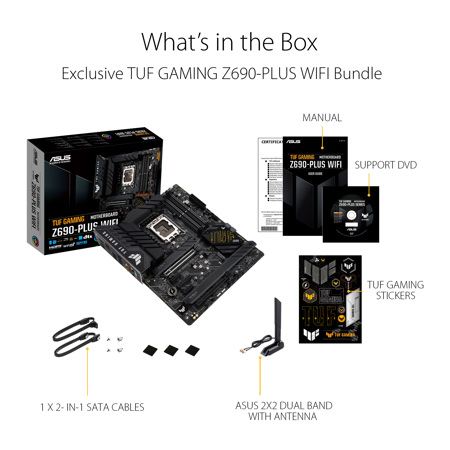

What's in the box:

  • ASUS TUF Gaming Z690 Plus Wi-Fi 6E LGA 1700 ATX Gaming Motherboard
  • 2x SATA 6Gb/s Cables
  • Wi-Fi Moving Antenna
  • 2x M.2 Rubber Packages
  • M.2 SSD Screw Package
  • TUF Gaming Sticker
  • Support DVD
  • User Manual
  • ASUS 3 Year Limited Warranty
