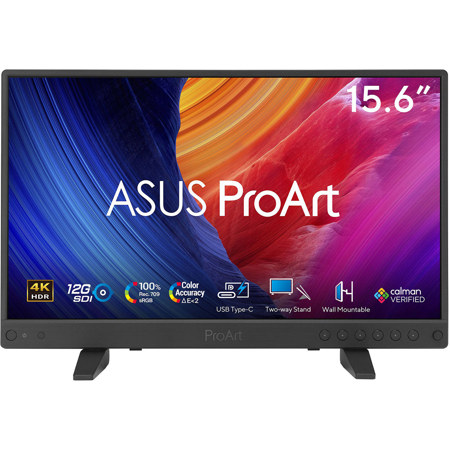

ASUS ProArt Display PA16USV 15.6" 16:9 4K Ultra HD IPS LED HDR Monitor

On-set SDI Portable Monitor
ProArt Display PA16USV is 15.6-inch 4K HDR monitor offers 282 high PPI IPS panel with 100% sRGB / Rec.709 coverage to deliver highly accurate colors that bring out the finest details in your creations. 12G-SDI input can receive video signals up to 4K@60Hz and support PiP/PbP function. Versatile design includes a mini stand and a kickstand, offering two convenient options to perfectly fit any scenario. Additionally, it features VESA wall-mount compatibility and dual tripod holes for ultimate flexibility in positioning.

Empowering Content Creators

Digital Imaging Technician (DIT)
Designed for on-set color grading and production workflow management. 12G-SDI input allows direct connection of SDI PCIe capture cards or boxes, delivering 4K uncompressed video for precise image performance. It ensures accurate color reproduction and detail, presenting them to directors and customers.

Director Monitoring
Directors need a high-quality SDI monitor for on-set review and decision-making. It should provide precise color reproduction, allowing directors to see what the camera captures and make informed decisions on lighting and framing.

Focus Puller / Camera Assistant
Focus pullers require a reliable SDI monitor with excellent resolution and color accuracy. It should provide clear images for precise focus adjustments during shooting, ensuring sharpness and clarity in dynamic scenes.

Impeccable 4K HDR Imagery On-set

Uncompressed 4K Video
15.6-inch with 4K UHD (3840 x 2160) panel delivers four times the pixel density and three times more onscreen space than similarly sized FHD displays, resulting in sharper visuals with greater levels of detail. ProArt Display PA16USV features 12G-SDI connection, allows receiving and transmitting uncompressed up to 4K@60Hz video footage directly from camera devices with ultra-low latency.

IPS Wide View Angle

Lifelike Views With Wide View Angle
Frameless IPS panel provides wide viewing angles, both horizontally and vertically, so you can enjoy its beautiful visuals from almost any direction.

A brighter, Lifelike Viewing Experience

High Dynamic Range
ProArt Display PA16USV features up to 400 nits of brightness, supports HDR-10 for brighter whites and darker blacks, resulting in a rich and lifelike viewing experience. In addition, ASUS ProArt Displays support multiple HDR-10 curves, including PQ Hard Clip, PQ Optimized and PQ Basic, which can cover all content creation needs.

PQ Hard Clip
This setting preserves the PQ curve until it displays maximum luminance. Anything brighter will be mapped to the maximum luminance of the display.

PQ Optimized
This PQ curve setting reproduces accurate gradations that correspond to the maximum brightness of the monitor to deliver optimized HDR performance.

PQ Basic
Present general HDR performance.

Enjoy true-to-life color
Experience unparalleled color accuracy with the PA16USV delivering 100% sRGB and 100% Rec.709 color gamut. Perfect for professionals who demand the high-level of color fidelity. 400 nits peak brightness to ensure the deeper blacks and brighter whites, enabling PA16USV to accurately display the most minute details in shadows and bright highlights for incredibly realistic visuals.

Unleash Creativity with AI
The rise of generative AI enables creators to spark inspiration more quickly, bringing infinite creative possibilities to professional creators. The wide color gamut, high resolution, and professional color accuracy of ProArt Displays provide the best visual experience, enjoy a smooth creative experience, and speed up the overall workflow.

Turn Imagination into Reality Fast (Photoshop)
Discover the power of generative AI with tools for Text to Image and Generative Fill. Simplify the creative process, effortlessly create, adjust, and enhance visuals.

Seamless Perfection, Quick Video Edits (Premiere Pro)
Generative AI tools streamline complex tasks and boost editing speed. Use features like Object Add/Remove and Generative Extend for quick, precise adjustments.

Bring Your World into 3D (Substance 3D Sampler & Stager)
Image-to-Texture transforms generative AI for 3D artists, allowing fast creation of photorealistic textures from image. It enhances creativity while integrating smoothly into workflows.

Streamlined, Efficient Workflows

12G-SDI Connectivity
SDI (Serial digital interface) is a professional video signal that's preferred in production environments, providing longer distance without video compression with reliability. BNC-type cable that has specialized connectors on each end to lock into the devices they connect to, so it cannot be easily dropped or pulled out. Compare with general 3G-SDI, 12G-SDI provides up to 4x bandwidth allows receiving and transmitting uncompressed up to 4K@60Hz video footage directly from camera devices with ultra-low latency.

Connect to Your Workflow
Rich connectivity offers a 12G-SDI, USB-C (DP Alt mode) port support one cable solution, HDMI(v2.0) for compatibility with current and future displays and peripherals. It also features USB 3.2 Gen 1 Type-C hub.

Diverse Viewing Options

Picture-by-Picture (PbP)
View up to three different settings simultaneously by placing multiple input sources onscreen side-by-side; and configure each individual window's color settings with sRGB, Adobe RGB, DCI-P3, Rec. 2020, User Mode 1 or User Mode 2.

Picture-in-Picture (PiP)
Easily place your second input source in a window in one corner of the display.

Caring for Your Eyes

ASUS Flicker-Free technology
It's time to say goodbye to those tired, strained eyes. ProArt Displays features TUV Rheinland-certified ASUS Flicker-Free technology to reduce flicker and minimize instances of eyestrain and other damaging ailments for a comfortable viewing experience.

Blue Light Filter
The TUV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light, and you can easily access via a hotkey. ProArt displays has undergone stringent performance tests and has been certified by TUV Rheinland laboratories, a global provider of technical, safety, and certification services, to be flicker-free and to emit low blue light levels.

Versatile Design
Two versatile stand options: mini stand and adjustable kickstand - Make it easy to deploy PA16USV in any scenario, allowing users to find the optimal working or viewing position when working on-location. Featuring built-in dual 1/4"-threaded sockets on both the top and bottom, this device offers seamless compatibility with standard tripods. The top socket allows easy mounting of cameras or lighting equipment, providing versatile setup options for any scenario.

Accurate Real-time On-set Preview
Quick Fit Plus is a clever feature that overlays a grid on the screen, allowing you to align and preview content with ease. The center marker and safety area offer real-time previews while shooting on set, helping you ensure the video image stays within the screen boundaries. The ruler provides an actual-size inch scale along the edges, and you can also customize the working size to suit your preferences.

Free 3 Months of Adobe Creative Cloud
By purchasing ASUS ProArt Display series, customers are entitled to receive a free three-month trial of Adobe Creative Cloud to experience the latest AI-powered applications - providing an enhanced visual experience with ProArt Display's professional color accuracy. This allows creators to inspire creativity and enjoy a smooth and exciting creative experience.
