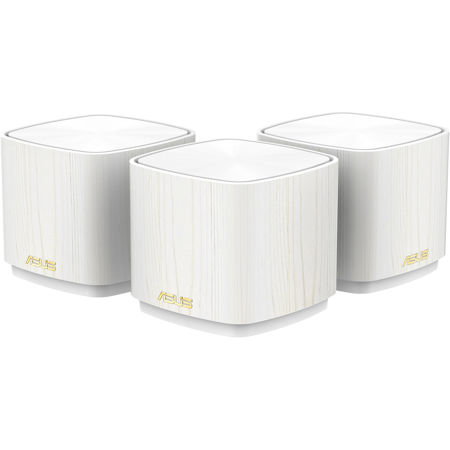

ASUS ZenWiFi AX Mini XD4 AX1800 Wireless Dual-Band Wi-Fi System, White, 3-Pack
See all Asus items

ASUS ZenWiFi AX Mini XD4 AX1800 Wireless Dual-Band Gigabit Mesh Wi-Fi System, White, 3-Pack

SKU: ASXD4L3PK
(2)

This item is no longer available.

Recommended Alternatives

Asus RT-AX1800S: Picture 1 regular
ASUS RT-AX1800S Dual Band Wi-Fi 6 Router
$99.99$89.99
Asus RT-BE58U: Picture 1 regular
ASUS RT-BE58U BE3600 Dual-Band Wi-Fi 7 Smart AiMesh Router, Black
$169.00$151.25
Asus RT-BE86U: Picture 1 regular
ASUS RT-BE86U BE6800 Dual-Band Wi-Fi 7 AiMesh Router, Black
$269.99$242.24
Asus RT-BE88U: Picture 1 regular
ASUS RT-BE88U BE7200 Dual-Band Wi-Fi 7 AiMesh Extendable Router, Black
$362.50$349.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2023-11-25T19:00:00

Rated 5 out of 5

Great Product for filling 'wifi not spot'

I recently purchased an XD4 node (single) for my Asus Zen Wifi mesh network (XT8). I had one room where signal was pretty weak, however it was relatively easy to send a Cat 6 cable into. This unit was therefore perfect for the job, and a relatively low cost solution as opposed to buying a full XT8 unit which would be been overkill for the job. Well done Asus on providing a great product.

Daylight_Invader

2022-12-21T19:00:00

Rated 5 out of 5

Router works amazing!

I couldn't be happier with how well this ASUS router is performing. It's the best router I've ever owned and would highly recommend to anyone looking into a new router. Please note: I must disclose that I'm receiving a warranty extension from ASUS for my feedback. I would give this review either way!!

UnderFigs8891

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ASUS ZenWiFi AX Mini XD4 Specifications

  • Color

    White

  • Network Standard

    IEEE 802.11a
    IEEE 802.11b
    IEEE 802.11g
    WiFi 4 (802.11n)
    WiFi 5 (802.11ac)
    WiFi 6 (802.11ax)
    IPv4
    IPv6

  • Product Segment

    AX1800 ultimate AX performance: 1201 Mbps+ 574 Mbps

  • AX Technology

    Yes

  • Data Rate

    802.11a: up to 54 Mbps
    802.11b: up to 11 Mbps
    802.11g: up to 54 Mbps
    WiFi 4 (802.11n): up to 300 Mbps
    WiFi 5 (802.11ac): up to 867 Mbps
    WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps
    WiFi 6 (802.11ax) (5GHz): up to 1201 Mbps

  • Antenna

    2x Internal dual-band antenna

  • Transmit/Receive

    MIMO Technology
    2.4GHz 2x2
    5GHz 2x2

  • Memory

    256 MB Flash, 256 MB RAM

  • Boosts Speed

    MIMO Technology

  • Operating Frequency

    2.4 G Hz / 5 GHz

  • Ports

    1x RJ45 for Gigabits BaseT for WAN/LAN, 1x RJ45 for Gigabits BaseT for LAN

  • Button

    WPS Button, Reset Button

  • LED Indicator

    1x Power

  • Power Supply

    AC Input: 110V-240V(50-60Hz)
    DC Output: 12 V with max. 1.5 A current

  • AiMesh

    AiMesh: Yes
    Primary AiMesh router: Yes
    AiMesh node: Yes

  • Router APP

    ASUS Router APP: Yes

  • Game

    Game Boost/acceleration: No
    WTFast: No

  • Alexa

    Support Alexa skill: Yes

  • IFTTT

    Support IFTTT: Yes

  • AiProtection

    AiProtection: AiProtection Classic
    Router Security Assessment: No
    Malicious site blocking: Yes
    Two-Way IPS: No
    Infected Device Prevention and Blocking: Yes

  • Parental Control

    Parental Control: Yes
    Parental Control Customized Internet schedule: Yes

  • Traffic Control

    Adaptive QoS: No
    Bandwidth Monitor: Yes
    Bandwidth limiter: Yes
    Traditional QoS: Yes
    Maximum Traditional QoS rule: 32
    Traffic Monitor: No
    Real-time traffic monitor: Yes
    Wired Traffic Monitor: Yes
    Wireless Traffic Monitor: Yes
    Traffic Analyzer: No
    Website history: No

  • Wireless

    IPv6: Yes
    MU-MIMO: Yes
    Wi-Fi Encryption: WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
    UTF-8 SSID: Yes
    Guest Network: Yes
    Maximum Guest Network rule: 9
    Guest Network Connection time limit: Yes
    WPS: Yes
    Wi-Fi MAC address filter: No
    Wireless scheduler: No
    Airtime fairness: No
    RADIUS Server: No
    Universal beamforming: No
    Explicit beamforming: No

  • WAN

    Internet connection Type: PPPoE, PPTP, L2TP, Automatic IP, Static IP
    Dual WAN: No
    WAN Aggregation: No
    3G/4G LTE dongle: No
    Android tethering: Yes
    Port forwarding: Yes
    Port triggering: Yes
    DMZ: Yes
    DDNS: Yes
    NAT Passthrough: Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
    Let's Encrypt: Yes

  • LAN

    DHCP Server: Yes
    IGMP snooping: Yes
    IPTV: Yes
    LAN Link Aggregation: No
    Manually assign IP address: Yes
    Maximum manually assign IP address rule: 64

  • VPN

    VPN Client L2PT: Yes
    VPN Client OVPN: Yes
    VPN Client PPTP: Yes
    VPN Server IPSec: Yes
    VPN Server OVPN: Yes
    VPN Server PPTP: Yes
    VPN Fusion: No

  • USB application

    HDD Hibernation: No
    Safely Remove disk: No
    AiCloud: No
    Download master: No
    AiDisk: No
    Media Server: No
    Time Machine: No
    Samba Server: No
    FTP Server: No
    Shared Folder privileges: No

  • Administration

    Operating system: ASUSWRT
    Free OS upgrade: Yes
    Firewall: Yes
    Maximum Firewall keyword filter: 64
    Maximum Firewall network service filter: 32
    Maximum Firewall URL filter: 64
    Wake on LAN (WOL): Yes
    SSH: Yes
    Configuration backup and restore: Yes
    Diagnosis tools: Yes
    Feedback system: Yes
    System log: Yes

  • Dimensions (L x W x H)

    With Antennas: 3.54 x 3.54 x 3.14" (90 x 90 x 80mm)

  • Weight

    10.40 oz (295g)

  • UPC Code

    192876711903

About ASUS ZenWiFi AX Mini XD4

FEATURED REVIEWS

Great Product for filling 'wifi not spot'

By Daylight_Invader

I recently purchased an XD4 node (single) for my Asus Zen Wifi mesh network (XT8). I had one room where signal was pretty weak, however it was relatively easy to send a Cat 6 cable into. This unit was therefore perfect for the job, and a relatively low cost solution as opposed to buying a full XT8 unit which would be been overkill for the job. Well done Asus on providing a great product.

Router works amazing!

By UnderFigs8891

I couldn't be happier with how well this ASUS router is performing. It's the best router I've ever owned and would highly recommend to anyone looking into a new router. Please note: I must disclose that I'm receiving a warranty extension from ASUS for my feedback. I would give this review either way!!

ASUS ZenWiFi
WiFi Coverage Everywhere. Always Secure.

Whole-home Coverage
The ZenWiFi AX Mini system consists of one ASUS AX1800 WiFi 6 router and two extending node, featuring unique technologies that give you superfast, reliable and secure WiFi connections - inside or outside your home!

WiFi 6 True 8K Streaming
ZenWiFi AX Mini puts your WiFi into top gear! With a total bandwidth of up to of 1800 Mbps, it's up to 1.4X faster than WiFi 5 routers

Flexible Network Naming
Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!

Easier-than-ever Setup
3-step setup with the ASUS Router app

• Turn on ZenWiFi AX Mini
• Create a WiFi network name and an admin account
• Wait for 3 minutes, and you're done!

What makes ZenWiFi AX Mini setup so easy?
• One-time setup, with auto synchronization for all the hubs in each package
• At a glance: You must start setup using the router, which is the unit with a removable clear plastic strip wrapped around it

Make the Internet a Safer Place for Everyone
AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.

• Commercial Grade Security
• Parental Controls

Smart Looks for Smart Homes
ZenWiFi AX Mini works perfectly with smart-home services - including Alexa skills and IFTTT - and is available in white to suit your decor.

AiMesh Technology
Easy setup. Flexible management. Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.

ASUS ZenWiFi AX Mini XD4 Features

  • Create a wireless network and share your Internet connection and files with other devices while checking emails
  • Uses ISM Band to connect your computers, wireless printers, game consoles, and other Wi-Fi devices for a smooth network experience
  • Gigabit Ethernet port for ultra-fast wired network speeds
  • Can be placed on the desktop surface for standalone installation
  • Alexa supported

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Create a wireless network and share your Internet connection
  • Uses ISM Band to connect your computers, wireless printers, game consoles, and other Wi-Fi devices
  • Gigabit Ethernet port for ultra-fast wired network speeds
  • Can be placed on the desktop surface for standalone installation
  • Alexa supported

What's in the box:

  • ASUS ZenWiFi AX Mini XD4 AX1800 Wireless Dual-Band Gigabit Mesh Wi-Fi Router (White)
  • RJ45 Ethernet Cable
  • 2x Node (XD4N)
  • 3x Power Adapter
  • Quick Start Guide
  • ASUS 2 Year Limited Warranty
