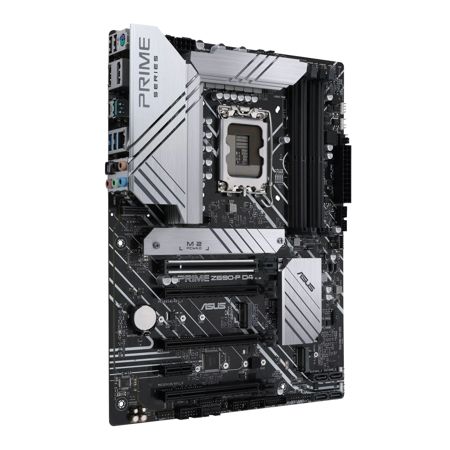

ASUS Prime Z690-P D4 DDR4 LGA 1700 ATX Motherboard

SKU: ASZ690PD4

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-10-12T20:00:00

Rated 5 out of 5

Great Motherboard and price.

It was as if they waited for me to pick this one up. Like destiny and all. The whole motherboard works like a streamline butterfly and I did play everything Asus in the staggard spectrum.

Greeneyedbat

2023-02-27T19:00:00

Rated 5 out of 5

The best motherboard

No problems at all when installing OS, Armoury Crate app help you to update all the drivers needed for the motherboard without problem. I will recomend this product to my family and friends.

Desktop-PC

2022-04-08T20:00:00

Rated 5 out of 5

Easy install, easy bios update and easy to use

I have purchased 5 ASUS motherboards and they are the best. I couldn't be happier with my latest purchase and now I'm running Windows 11

Randyjandy

2022-01-21T19:00:00

Rated 5 out of 5

Board has what I need at the present time

Board is performing great, exactly what I needed! I am receiving a Warranty extension from Asus for this review.

MoparMan

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ASUS Prime Z690-P D4 Specifications

  • CPU

    Intel Socket LGA1700 for 12th Gen Intel Core
    Pentium Gold and Celeron Processors
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

  • Chipset

    Z690

  • Memory

    4x DIMM, Max. 128GB
    DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC
    Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP)
    OptiMem II

  • Graphics

    1x DisplayPort
    1x HDMI Port

  • Expansion Slots

    Intel 12th Gen Processors
    1x PCIe 5.0/4.0/3.0 x16 slot
    Intel Z690 Chipset
    1x PCIe 4.0/3.0 x16 slot (supportsx4 mode)
    2x PCIe 3.0 x16 slots (supportx4 mode)
    1x PCIe 3.0 x1 slot

  • Storage

    Total supports 3x M.2 slots and 4x SATA 6Gb/s ports
    Intel 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280/22110
    Intel 12th Gen processors support PCIe 4.0 x4 mode
    Intel Z690 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
    4x SATA 6Gb/s ports

  • Ethernet

    1x Realtek 2.5Gb Ethernet

  • Wireless & Bluetooth

    V-M.2 slot only (Key E, CNVi & PCIe)

  • USB

    Rear USB (Total 6 ports)
    1x USB 3.2 Gen 2x2 port (1x USB Type-C)
    1x USB 3.2 Gen 2 port (1x Type-A)
    2x USB 3.2 Gen 1 ports (2x Type-A)
    2x USB 2.0 ports (2x Type-A)

    Front USB (Total 9 ports)
    1x USB 3.2 Gen 1 connector (supports USB Type-C)
    2x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
    2x USB 2.0 headers support additional 4 USB 2.0 ports

  • Audio

    Realtek 7.1 Surround Sound High Definition Audio CODEC
    Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Supports up to 24-Bit/192 kHz playback

    Audio Features
    Audio Shielding
    Rear optical S/PDIF out port
    Premium audio capacitors
    Dedicated audio PCB layers

  • Back Panel I/O Ports

    1x USB 3.2 Gen 2x2 port (1x USB Type-C)
    1x USB 3.2 Gen 2 port (1x Type-A)
    2x USB 3.2 Gen 1 ports (2x Type-A)
    2x USB 2.0 ports (2x Type-A)
    1x DisplayPort
    1x HDMI port
    1x V-M.2 slot (Key E)
    1x Realtek 2.5Gb Ethernet port
    5x Audio jacks
    1x Optical S/PDIF out port
    1x PS/2 Keyboard/Mouse combo port

  • Internal I/O Connectors

    Fan and Cooling related
    1x 4-pin CPU Fan header
    1x 4-pin CPU OPT Fan header
    1x 4-pin AIO Pump header
    3x 4-pin Chassis Fan headers

    Power related
    1x 24-pin Main Power connector
    1x 8-pin +12V Power connector
    1x 4-pin +12V Power connector

    Storage related
    3x M.2 slots (Key M)
    4x SATA 6Gb/s ports

  • Internal I/O Connectors (Contd..)

    USB
    1x USB 3.2 Gen 1 connector (supports USB Type-C)
    2x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
    2x USB 2.0 headers support additional 4 USB 2.0 ports

    Miscellaneous
    3x Addressable Gen 2 headers
    1x AURA RGB headers
    1x Clear CMOS header
    1x COM Port header
    1x Front Panel Audio header (AAFP)
    1x SPI TPM header (14-1pin)
    1x 20-5pin System Panel header
    1x Thunderbolt header

  • Special Features

    ASUS 5X Protection III
    DIGI+ VRM (Digital power design with DrMOS)
    LANGuard
    Overvoltage Protection
    SafeSlot
    Stainless-Steel Back I/O

    ASUS Q-Design
    Q-DIMM
    Q-Slot

    ASUS Thermal Solution
    Flexible M.2 heatsink
    VRM heatsink design

    ASUS EZ DIY
    ProCool

    AURA Sync
    AURA RGB header
    Addressable Gen 2 headers

  • Software Features

    ASUS Exclusive Software
    Armoury Crate
    AURA Sync
    Fan Xpert 4
    AI Suite 3

    Performance And Power Saving Utility
    TurboV EVO
    EPU
    DIGI+ VRM
    ASUS CPU-Z

    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    ASUS CrashFree BIOS 3
    ASUS EZ Flash 3
    ASUS UEFI BIOS EZ Mode

  • BIOS

    192 (128+64) Mb Flash ROM, UEFI AMI BIOS

  • Manageability

    WOL by PME, PXE

  • Operating System

    Windows 11 64-bit
    Windows 10 64-bit

  • Form Factor

    ATX

  • Dimensions

    12 x 9.2" (30.5 x 23.4cm)

  • UPC Code

    195553471558

About ASUS Prime Z690-P D4

FEATURED REVIEWS

Great Motherboard and price.

By Greeneyedbat

It was as if they waited for me to pick this one up. Like destiny and all. The whole motherboard works like a streamline butterfly and I did play everything Asus in the staggard spectrum.

The best motherboard

By Desktop-PC

No problems at all when installing OS, Armoury Crate app help you to update all the drivers needed for the motherboard without problem. I will recomend this product to my family and friends.

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

Flexibility
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

EPU

All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Fan Xpert 4

Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 4 software provides comprehensive control over fans and all-in-one (AiO) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AiO cooler can also be controlled via the UEFI BIOS.

Digi+ VRM Control

Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Adavanced Mode

Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search Function
Quickly and easily find the option or setting you need.

ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.

EZ Mode

Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time.

Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.

EZ XMP
Improve DRAM performance with one click.

Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting, for a subdued aesthetic touch.

Cooling
Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks

M.2 Heatsink
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.

VRM Heatsinks and High-quality Thermal Pads
Two massive VRM heatsinks and high-quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design
Prime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.

Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

AIO Pump Header
A dedicated PWM/DC header for self-contained water-cooling setups.

Smart Protection
A dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.

Performance
Prime Z690 series is built to handle the additional cores and increased bandwidth of 12th Generation Intel processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Power Design
Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. Prime Z690-P is geared to cater to the demands of these high-core-count CPUs.

ProCool Connectors
Proprietary connectors augment the motherboard's link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

14+1 DrMOS
A VRM with 14+1 DrMOS delivers the power and efficiency that the latest Intel processors demand.

Memory

OptiMem II
Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Benefits of OptiMem II:

• Improved memory stability and compatibility
• Allows lower memory latencies at equivalent voltages
• Improved memory frequency margin

DDR4 5333 (OC)
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

Storage

Three M.2 slots (up to 64 Gbps)
Prime Z690-P offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

Connectivity

PCIe 5.0 Slot
The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions off PCI Express.

USB 3.2 Gen 2x2 Type-C
Numerous USB ports support high-end rigs loaded with peripherals, including rear USB Type-C connector with fast USB 3.2 Gen 2x2 for transmission speeds of up to 20 Gbps.

Thunderbolt 4 Support
Prime Z690-P features Thunderbolt 4 support via an on-board header. With the latest Intel-certified ASUS ThunderboltEX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.

Realtek 2.5 Gb Ethernet
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

Customization
Prime Z690 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Audio

Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

Audio Shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference

Separate Layer for Left and Right Tracks
Ensures minimal crosstalk between audio paths.

Premium Audio Capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.

Personalization

Aura Sync

Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips and devices connected to the onboard RGB headers - and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.

ASUS Prime Z690-P D4 Features

  • IntelLGA 1700 socket ready for 12th gen Intelprocessors
  • Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: DDR4, PCIe 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support

Key Features

  • IntelLGA 1700 socket ready for 12th gen Intelprocessors
  • 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes & durable capacitors
  • Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
  • Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity

What's in the box:

  • ASUS Prime Z690-P D4 DDR4 LGA 1700 ATX Motherboard
  • 2x SATA 6Gb/s Cables
  • I/O Shield
  • 2x M.2 SSD Screw Packages
  • M.2 Rubber Package
  • User Manual
  • ASUS 3 Year Limited Warranty
