New Arrival

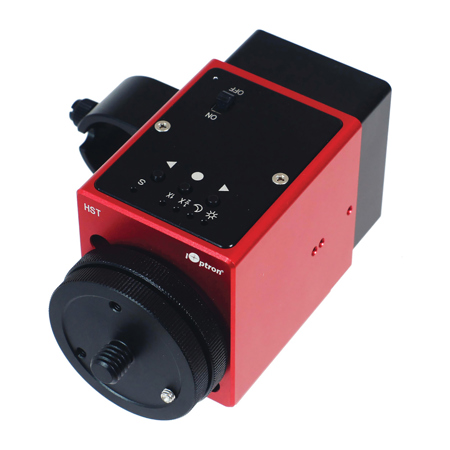

iOptron HST MiniTracker Ultra-Compact SWG Camera Tracking Device

SKU: AT3650 MFR: 3650
Earn VIP Reward Points

Key Features

  • Achieve stunning astrophotography with ultra-compact SWG tracking, perfect for capturing crisp celestial images.
  • Experience superior portability with this lightweight 1.75 lbs camera tracking device, ideal for on-the-go stargazers.
  • Benefit from a robust 8.8 lbs payload capacity, accommodating various camera setups without extra counterweights.
  • Enjoy extended observation sessions with up to 5 hours of battery life, ensuring uninterrupted night sky photography.
  • Utilize versatile tracking speeds, including solar and lunar, for diverse astronomical photography needs.
  • Quickly set up your gear using the convenient Vixen-type dovetail bar and 3/8"-16 socket for seamless integration.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

iOptron HST MiniTracker Specifications

  • Color

    Red

  • Material

    CNC All metal

  • Mount

    Ultra Compact SWG Single-axis Tracking mount

  • Gear system

    Strain wave gear (SWG)

  • Payload

    Maximum: 8.8 lbs (4kg), no CW required

  • Drive motor

    Stepper motor

  • Tracking speed

    Solar, Lunar. 1x Cel, 1/2 Cel, and N/S

  • Power requirement

    Internal battery or DC5V

  • Power

    Internal Li-Poly battery, external 5V power bank

  • Battery

    Standard 3000mAh rechargeable, optional 3XAAA battery holder

  • Duration of operation

    Up to 5 hours at 68 Degree F (20 Degree C) on Li-Poly battery

  • Power charging port

    USB Type-C 5V

  • Camera mounting block

    50mm with 3/8"-16 post

  • Body-base connection

    Vixen type dovetail bar with 3/8"-16 socket and 1/4"-20 converter

  • Polar scope

    Optional iPolar or AccuAlign Polar Scope

  • EQ Base

    Optional #3327 or #3328

  • Operation temperature

    14 Degree F to 104 Degree F (-10 Degree C to 40 Degree C)

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions

    5.24 x 3.67 x 2.81" (133 x 93.25 x 71.5mm)

  • Weight

    With battery: 1.75 lbs (790g)

About iOptron HST MiniTracker

Small enough to rest in your palm, yet can carry up to 9lbs of imaging gear. The iOptron HST MiniTracker is the ultimate portable DSLR sky tracking device.

Weighing only 1.75lbs this SWG (strain wave gear) mini imaging tool features 4 tracking rates, sidereal for stars and deep space, lunar for the moon, solar for the sun, and 1/2 rate for imaging the Milky Way with terrestrial objects in the foreground. Its DC stepper motor and SWG drive train operate silently as it precisely tracks the target subject(s). The metal CNC machined body is not only appealing to the eye, its rugged enough to take on any outdoor adventure.

The HST has a vixen style dovetail that slides into the optional AZ base or it can mount directly to a tripod by a 3/8"-16 or 1/4"-20 post. Powered by an internal rechargeable Li-Poly battery, 3 AAAs or external 5 volt power bank giving the user flexibility to choose what best fits the assignment. The side bracket for holding an optional AccuAlign polar scope or iPolar has a "peek hole" for basic alignment. The HST MiniTracker is the optimal tracking solution for the on the go imager!

iOptron HST MiniTracker Features

  • All CNC metal structure
  • Powerful stepper motor
  • Accepts cameras weighing up to 4kg (8.8 lbs) without a counterweight
  • Light weight: 1.75lbs with battery
  • Silent tracking for smooth camera motion, perfect for long-term exposures
  • 4 tracking speed (1X, 1/2X, solar and lunar)
  • 1x celestial tracking for imaging the sky and stars
  • 1/2x tracking speed for imaging both the starry night and the landscapes at the same time
  • Quick slew for camera framing adjustment
  • Operation in both northern and southern Hemisphere
  • Built-in rechargeable battery with Type-C USB port for power and charging
  • Attaches to a camera tripod with 3/8" or 1/4" threads

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve stunning astrophotography with ultra-compact SWG tracking, perfect for capturing crisp celestial images.
  • Experience superior portability with this lightweight 1.75 lbs camera tracking device, ideal for on-the-go stargazers.
  • Benefit from a robust 8.8 lbs payload capacity, accommodating various camera setups without extra counterweights.
  • Enjoy extended observation sessions with up to 5 hours of battery life, ensuring uninterrupted night sky photography.
  • Utilize versatile tracking speeds, including solar and lunar, for diverse astronomical photography needs.
  • Quickly set up your gear using the convenient Vixen-type dovetail bar and 3/8"-16 socket for seamless integration.

What's in the box:

  • iOptron HST MiniTracker Ultra-Compact SWG Camera Tracking Device
  • Type-C USB Charging Cable
  • iOptron 1 Year Limited Warranty
