iOptron Cube R80 Solar without E-Eyepiece

SKU: AT8508

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

iOptron Cube R80 Solar Specifications

Refractor Telescope

Refractor Telescope

Jump to...
  • Optical Design

    Achromatic Refractor

  • Optical Tube Materials

    Aluminum

  • Clear Aperture

    80 mm

  • Focal Length

    400mm

  • Focal Ratio

    f/5

  • Resolution Power

    1.4 arc sec

  • Limited Magnitude

    11.3

  • Highest Useful Magnification

    189

  • Focuser

    1.25" rack-and-pinion

  • Eyepiece Adapter

    1.25"

  • Eyepiece

    25mm (16X), 10mm (40X)

  • Diagonal

    45 Degree erect glass diagonal

  • Solar Filter

    High durability SolarLite white light filter

  • Solar Filter Clear Aperture

    70mm

SmartStar Cube-E Mount

Jump to...
  • Mount

    AltAzimuth Mount

  • Body Materials

    Die-cast aluminum

  • Payload

    7 lbs

  • GOTO System

    GoToNova

  • Tracking Controller

    Automatic

  • Tracking Rate

    Celestial, solar, lunar

  • Motor

    Dual-Axis DC servo motor with encoders

  • Slew Speed

    2x, 8x, 16x, 64x, 256x and MAX(4 Degree/sec)

  • Hand Controller

    GoToNova 8405

  • LCD Display

    4 line, 21 character with LED backlit

  • Processor

    32bit ARM

  • Object in Database

    14,000

  • Level Indicator

    Yes

  • Dovetail Saddle

    Integrated VIXEN saddle

  • Battery

    AA x 8 (Not Included)

  • AC/DC Adapter

    AC 100-240V input, DC12V 1.5A output

  • Power Consumption

    0.2A (Tracking), 0.6A (Slew)

  • Power Requirement

    DC 12V +/- 2V, >1.2A

  • Tripod

    1.25" Stainless Steel

  • Weight w/ Tripod

    12 lbs (5.44 kg)

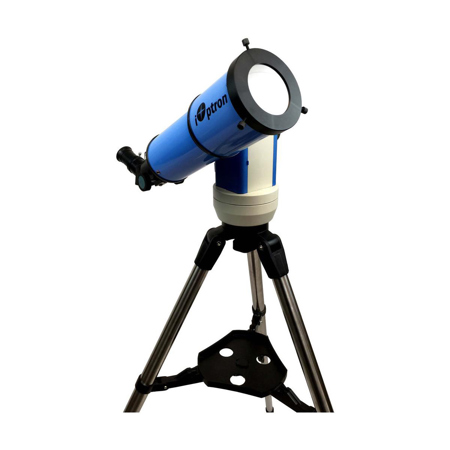

About iOptron Cube R80 Solar

The iOptron Cube R80 Solar combines The Cube computerized telescope and a white light solar filter. Now you can observe the sun and track daily Sun Spots at home or the classroom. It is ideal for travelling to see transit and solar eclipses!

The SmartStar Cube R80 Solar comes with iOptron proprietary Alt-Azimuth Mount, a.k.a. The Cube. This compact mount design is one of the most functional and flexible units on the market. Sky & Telescope Magazine named it "Hot Product 2008". Both axis motors are built into a small single unit which is universally compatible with all telescopes using a Vixen-type dovetail connection. The Go2Nova hand controller on each Cube mount is easy to use with menus for planets, stars, nebulas, and constellations. And at only 12 lbs. you can take it anywhere and get accurate tracking! It also has a large LCD screen with more lines of content compared with the competition (so you don't have to keep scrolling to read the screen).

The controller is designed so you can easily set up your telescope and select where you want to go. The revolutionary GOTONOVA computerized control system is one of the most technologically advanced automated tracking system available on the market today. There are no "dead spots" -- so you can point your telescope to anywhere above the horizon, whereas, other mounts block the telescope tube at certain points of rotation. This mount can be operated by 8 AA battery or a external AC/DC power adapter, makes it an idea travel mount.

With a durable 70mm solar filter, this system allows you to see the solar photosphere with outstanding detail. Watch sunspots change from day to day. Follow these magnetic giants as they rotate across the disk of the sun, it's truly an amazing view!

This is the ideal system to capture video or still photos of the sun spots and their movements with a electronic eyepiece (#8429, iE1300; #5250, iE5100) or your smartphone through a SmartPhone adapter (#8432).

iOptron Cube R80 Solar Features

  • 80mm f/5 multi-coated refractor telescope
  • 70mm clear aperture high durability white light solar filter
  • Computerized GOTO alt-azimuth mount - The Cube
  • 7 lbs payload for various scopes and cameras
  • Dual-axis servomotor with optical encoder for precise GOTO and tracking
  • GoToNova 8405 hand controller. Large LCD screen with backlit LED for easy to read
  • Drive motor with 5-speed control for precise slewing
  • 14,000 object database with 256 user-defined objects
  • Operate on 8 AA batteries (not included)
  • 100-240V AC power adapter included, optional 12V DC adaptor available
  • GPS upgradable with optional GPS module
  • Sturdy 1.25" stainless steel tripod

Key Features

  • 80mm f/5 multi-coated refractor telescope
  • 70mm clear aperture high durability white light solar filter
  • Computerized GOTO alt-azimuth mount - The CubeTM
  • 7 lbs payload for various scopes and cameras
  • Dual-axis servomotor with optical encoder for precise GOTO and tracking
  • GoToNova 8405 hand controller. Large LCD screen with backlit LED for easy to read

What's in the box:

  • SmartStar Cube-E Mount
  • 80mm Refractor Telescope with Solar Filter (Detachable)
  • GoToNova 8405 Hand Controller
  • Controller Cable
  • 45 Degree Erect Diagonal
  • 2 x Eyepiece (10mm and 25mm)
  • Tripod
  • 100-240V AC/DC Adapter
  • iOptron 1 Year Limited Warranty
