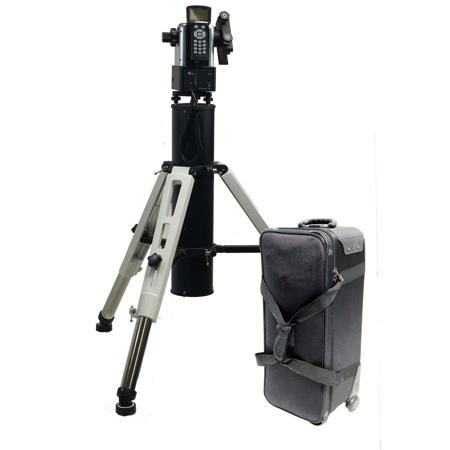

iOptron AZ Mount Pro with Tri-Pier in Rolling Case

SKU: AT8900TPRC MFR: 8900-TP-RC
Earn VIP Reward Points

Key Features

  • Enjoy stable views with this iOptron telescope mount, crafted from die-cast aluminum.
  • Achieve precise tracking with the GoToNova system; explore over 212,000 celestial objects.
  • Mount features a 6" Vixen/Losmandy dual dovetail saddle for versatile telescope compatibility.
  • Internal battery provides up to 10 hours of use; the included AC adapter makes charging easy.
  • Its portable design includes a Tri-Pier and rolling case for easy transport to dark sky sites.
  • Control via built-in WiFi using your smartphone, tablet, or computer for a modern experience.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?John C : Easy to use and very high ratingMike M : A fellow club member has one of these and I wanted one since the first time I saw him set up and use it. Finally bought one.

Reviews about this item

Review Summary

2018-08-27T11:46:48

Rated 5 out of 5

Fantastic mount! Automatically links to SkySafari on iPad!

The iOptron AZ Mount Pro arrived in excellent condition and was super easy to set up. (iOptron has all of their manuals online also, so if you need detailed help, there it is.) This mount handled my Takahashi FC100DL (a 22# optical tube package) with ease. With a built-in rechargeable battery, there was no need for cords. And, as the AZ Mount Pro generates its own wi-fi link, the mount showed up on my iPad with ease. One click later, I was connected to the mount/telescope with SkySafari which then let me jump from object to object just by touching the iPad screen. First night out: Saturn's rings, surface details on Mars, double stars, star clusters and the Moon.

SCOTT A.

iOptron AZ Pro with Tri-Pier Specifications

  • Mount

    AltAzimuth Mount

  • Body Materials

    Die-cast Aluminum

  • System

    GoToNova

  • Primary Payload

    33 lb

  • Secondary Payload

    10 lb

  • Gear

    Aluminum worm wheel/Brass worm gear

  • Motor

    128X microstep stepper motor

  • Transmission

    Sychronous belt

  • Resolution

    0.1 arc second

  • Tracking

    Automatic

  • Tracking Rate

    Celestial, solar, lunar and user defined

  • Hand controller

    Go2Nova 8407 with over 212,000 object database

  • Slew Speed

    1x, 2x, 8x,16x, 64x,1 28x, 256x, 512x and MAX(10 Degree/sec, 2400X)

  • GPS

    32-channel GPS

  • Sensors

    Position and angular detection

  • Level indicator

    Yes

  • Dovetail Saddle

    6" Losmandy/Vixen dual saddle
    Optional secondary Vixen saddle

  • Counterweight

    10 lbs (4.54 kg)

  • Battery

    Built-in rechargeable Li-ion battery (11.1V, 4.4AH)

  • Battery Running Time

    10 hour at 20 Degree C

  • Battery Charger

    100-240V AC input /12.6V DC 2000mA output (Included)

  • Wireless Control

    Yes, full control via built-in WIFI adapter

  • Firmware Upgrade

    Yes, via serial port

  • Computer Control

    Yes. PC via ASCOM and Mac/Tablet/SmartPhone via WIFI

  • Tripod/Pier

    iOptron Tri-pier

  • Mount Weight

    13 lb (including CW shaft and battery)

About iOptron AZ Pro with Tri-Pier

FEATURED REVIEWS

Fantastic mount! Automatically links to SkySafari on iPad!

By SCOTT A.

The iOptron AZ Mount Pro arrived in excellent condition and was super easy to set up. (iOptron has all of their manuals online also, so if you need detailed help, there it is.) This mount handled my Takahashi FC100DL (a 22# optical tube package) with ease. With a built-in rechargeable battery, there was no need for cords. And, as the AZ Mount Pro generates its own wi-fi link, the mount showed up on my iPad with ease. One click later, I was connected to the mount/telescope with SkySafari which...

View full Review

Introducing the AZ Mount Pro featuring "level and go" intuitive GOTO setup.

We call it "level and go", the term used to describe iOptron new AZ Mount Pro's simple set up routing. Using its built-in precision level indicator, the operator simply levels the mount and turns on the power; this capable computerized alt-azimuth telescope mount takes it from there. Utilizing the on board 32 channel GPS receiver and built-in position and angular detection sensors; the AZ mount Pro calculates its global position as well as the telescope orientation. Automatically the mount slews the instrument to an easily identifiable bright object in the night sky. The user need only confirm a bright object is in the center of the view, to activate tracking and GOTO functionality.

iOptron AZ Pro with Tri-Pier Features

  • Lightweight Altazimuth computerized GOTO mount
  • 33lb primary payload and 10lb secondary payload capacity, with a mount weighing only 13lbs
  • Whisper quiet low-power consumption stepper motors
  • Go2Nova 8407 hand controller featuring 212K+ object library with an 8 line illuminated LCD screen
  • Zero backlash driver system
  • On board rechargeable lithium ion battery for up to 10 hours of use
  • Built-in WIFI adapter for full ASCOM, iOptron CommanderTM and Sky Safari wireless control
  • Serial port for computer control and firmware upgrades
  • Retractable counter weight shaft
  • Position memorization at power interruption
  • Die-cast aluminum body
  • 3-Point easy level adjustment on tripod
  • 6 inch dual dovetail saddle (Losmandy/Vixen styles)
  • Stands a mere 10 inches tall (mount head only)
  • Built-in 32-channel GPS receiver
  • Automatic position and angular detection sensors
  • Aluminum Hard Case
  • 1x 10 lb counterweight included
  • 100 - 240V Battery Charger included
  • Tri-pier with rolling case included

Key Features

  • Enjoy stable views with this iOptron telescope mount, crafted from die-cast aluminum.
  • Achieve precise tracking with the GoToNova system; explore over 212,000 celestial objects.
  • Mount features a 6" Vixen/Losmandy dual dovetail saddle for versatile telescope compatibility.
  • Internal battery provides up to 10 hours of use; the included AC adapter makes charging easy.
  • Its portable design includes a Tri-Pier and rolling case for easy transport to dark sky sites.
  • Control via built-in WiFi using your smartphone, tablet, or computer for a modern experience.

What's in the box:

  • AZ Mount Pro with Tri-Pier
  • Hand Controller (HC) Go2Nova 8407
  • 6 " Vixen/Losmandy Dual Dovetail Saddle
  • Controller Cable
  • RS232-RJ9 Serial Cable
  • AC Adapter for Battery Charging 100-240V
  • 2 " Heavy Duty Tripod with 3 Leveling Screws
  • 10lb Counterweight
  • Aluminum Hard Case
  • iOptron 2 Year Limited Warranty for Mount & 90 Day Limited Warranty for Battery
