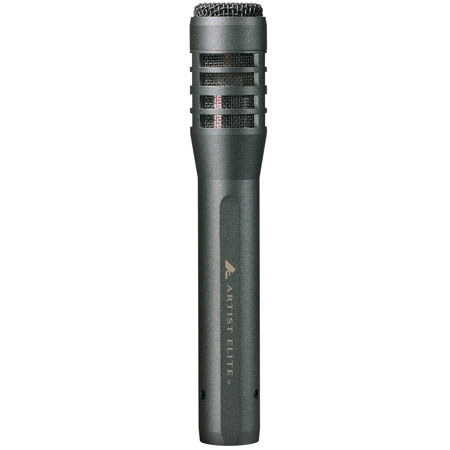

Audio-Technica AE-5100 Large-Diaphragm Cardioid Instrument Microphone
See all Audio-Technica items

Audio-Technica AE-5100 Large-Diaphragm Cardioid Instrument Microphone, 20Hz to 20kHz Frequency Response, 150 ohms Impedance

SKU: ATAE5100
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Audio-Technica AT2020USB-X Cardioid Condenser USB Microphone
$237.00
$169.00
undefined undefined: Picture 1 regular

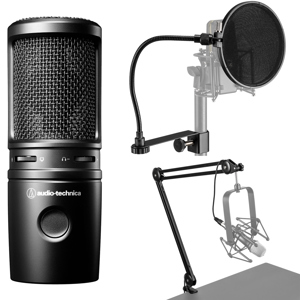

Audio-Technica AT2020USB-X Cardioid Condenser USB Mic,w/Broadcast Arm,Pop Filter
$226.90
$208.95
undefined undefined: Picture 1 regular

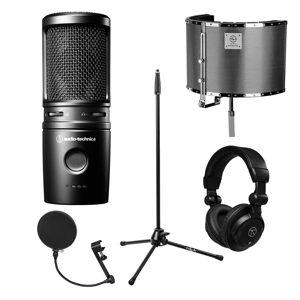

Audio-Technica AT2020USB-X Cardioid USB Mic, with Stand, Pop Filter & Headphones
$280.84
$248.95
undefined undefined: Picture 1 regular
Audio-Technica AT2020USB-XP Cardioid Condenser USB Microphone
$306.00
$219.00
undefined undefined: Picture 1 regular
Audio-Technica AE-3000 Large-Diaphragm Cardioid Instrument Microphone
$461.00
$329.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Audio-Technica AE-5100 Specifications

  • Elements

    Fixed-charge back plate, permanently polarized condenser

  • Polar Pattern

    Cardioid

  • Frequency Response

    20-20,000 Hz

  • Low Frequency Roll-Off

    80 Hz, 12 dB/octave

  • Open Circuit Sensitivity

    -36 dB (15.8 mV) re 1V at 1 Pa

  • Impedance

    150 ohms

  • Maximum Input Sound Level

    148 dB SPL, 1 kHz at 1% T.H.D.
    158 dB SPL with 10 dB pad (nominal)

  • Noise

    11 dB SPL

  • Dynamic Range (Typical)

    137 dB, 1 kHz at Max SPL

  • Signal-To-Noise Ratio

    83 dB, 1 kHz at 1 Pa

  • Phantom Power Requirements

    11-52V DC, 3.2 mA typical

  • Switches

    High-pass filter
    10 dB pad (nominal)

  • Output Connector

    Integral 3-pin XLRM-type

  • Dimensions

    5.85x1.02" / 14.85x2.59cm (Length x Diameter)

  • Weight

    5.0 oz (141.7 g)

10 Accessories for Audio-Technica AE-5100 Large-Diaphragm Cardioid Instrument Microphone, 20Hz to 20kHz Frequency Response, 150 ohms Impedance

  • All Accessories (10)
  • Cables & Adapters (10)
H&A Value Series XLR M to F Professional Microphone Cable - 6'
H&A Value Series XLR M to F Professional Microphone Cable - 6'
$6.49
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 10'
H&A Value Series XLR M to F Professional Microphone Cable - 10'
$6.94
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 15'
H&A Value Series XLR M to F Professional Microphone Cable - 15'
$8.95
H&A Value Series XLR M to F Professional Microphone Cable - 25'
H&A Value Series XLR M to F Professional Microphone Cable - 25'
$14.95
H&A Value Series XLR M to F Professional Microphone Cable - 50'
H&A Value Series XLR M to F Professional Microphone Cable - 50'
$15.95
H&A Value Series XLR M to F Professional Microphone Cable - 100'
H&A Value Series XLR M to F Professional Microphone Cable - 100'
$23.95
H&A Value Series XLR M to F Professional Microphone Cable - 1.5' RA
H&A Value Series XLR M to F Professional Microphone Cable - 1.5' RA
$6.49
H&A Value Series XLR M to F Professional Microphone Cable - 25' RA
H&A Value Series XLR M to F Professional Microphone Cable - 25' RA
$12.95
H&A Platinum Pro Quad 15' XLR M to XLR F Microphone Cable with Rean Connectors
H&A Platinum Pro Quad 15' XLR M to XLR F Microphone Cable with Rean Connectors
$24.95
H&A Platinum Pro Quad 25' XLR M to XLR F Microphone Cable with Rean Connectors
H&A Platinum Pro Quad 25' XLR M to XLR F Microphone Cable with Rean Connectors
$28.95

About Audio-Technica AE-5100

The Audio-Technica AE-5100 Large-Diaphragm Cardioid Instrument Microphone is designed for capturing instruments. The sensitivity and frequency response make it suitable for overheads, percussion and acoustic instruments such as guitar and strings. The large diaphragm element delivers natural, transparent signal reproduction and withstands high transients without distortion and noise.

The sleek low-profile design allows flexible microphone placement options. A high pass filter switch eliminates noise below 80Hz and a 10dB provides additional headroom when capturing excessively loud signal sources. The AE5100 is powered via external 11V to 52V phantom power source.

Audio-Technica AE-5100 Features

  • High SPL Response: The AE-3000 excels in reproducing signals with high SPL response. Guitar cabinets, drums and percussion are all accurately reproduced without noise and distortion
  • Cardioid Polar Pattern: The cardioid polar pattern effectively minimizes noise and ambiance at the off-axis sections of the microphone
  • High Pass Filter: A high pass filter switch eliminates low frequency noise and rumble below 80Hz
  • 10dB Pad: A 10dB pad switch increases headroom when capturing excessively loud signal sources
  • Low-Profile Design: The sleek low-profile design allows flexible microphone placement options

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High SPL Response
  • Cardioid Polar Pattern
  • High Pass Filter
  • 10dB Switch increases headroom for loud signals
  • Low-Profile Design

What's in the box:

  • Audio-Technica AE-5100 Large-Diaphragm Cardioid Instrument Microphone
  • AT8471 Isolation Clamp
  • 5/8 "-27 to 3/8 "-16 Threaded Adapter
  • AT8136 Windscreen
  • Soft Protective Pouch
  • Audio-Technica 5 Years Limited Warranty
