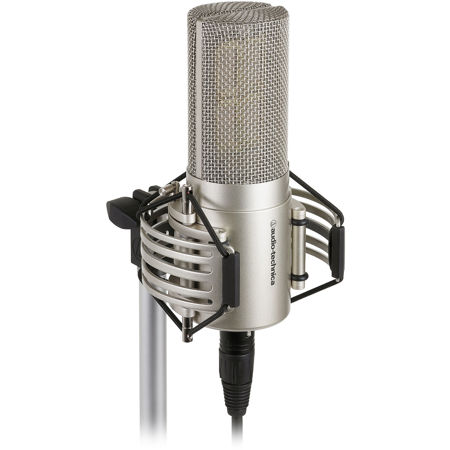

Audio-Technica AT5047 Cardioid Condenser Studio Microphone

SKU: ATAT5047 MFR: AT5047
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this condenser microphone, perfect for studio recording.
  • Experience low noise and high sensitivity with the AT5047's advanced circuitry design.
  • Achieve professional vocal recordings using this cardioid microphone's focused polar pattern.
  • Enjoy durable build quality, ensuring years of reliable use in your home or pro studio.
  • Connect easily via XLR to any professional audio interface for seamless integration.
  • Get exceptional value with this price range, balancing premium features and affordability.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-05-08T20:00:00

Rated 5 out of 5

Awesome!

Needs better dust filter

Spaz1503cm

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audio-Technica AT5047 Specifications

  • Element

    Fixed-charge back plate, permanently polarized condenser

  • Polar Pattern

    Cardioid

  • Frequency Response

    20 - 20000Hz

  • Open Circuit Sensitivity

    -29 dB (35.5mV) re 1V at 1 Pa

  • Impedance

    150Ohms

  • Maximum Input Sound Level

    148dB SPL, 1kHz at 1% THD

  • Noise

    6dB SPL

  • Dynamic Range

    142dB, 1kHz at Max SPL (typical)

  • Signal-to-noise Ratio

    88dB, 1kHz at 1 Pa

  • Phantom Power Requirements

    48V DC, 2.7 mA typical

  • Output Connector

    Integral 3-pin XLRM-type

  • Dimensions (LxDia.)

    165.3 x 57mm (6.51 x 2.24")

  • Weight

    592g (20.88 oz)

  • UPC Code

    4961310140014

16 Accessories for Audio-Technica AT5047 Cardioid Condenser Studio Microphone

  • All Accessories (16)
  • Cables & Adapters (13)
  • Studio Isolation Filters (3)

About Audio-Technica AT5047

FEATURED REVIEWS

Awesome!

By Spaz1503cm

Needs better dust filter

For professionals seeking a high-quality, durable, and reliable studio microphone, the Audio-Technica AT5047 Cardioid Condenser Studio Microphone is an exceptional choice. This versatile microphone excels in capturing both vocals and instruments, making it a valuable asset in any recording studio.

The AT5047 is renowned for its wide dynamic range, the broadest among all Audio-Technica microphones. This feature allows it to capture the full, expressive character of any sound source, regardless of volume. Its cardioid polar pattern is specifically designed to pick up sound from a specific direction while minimizing background noise, making it ideal for recording in a studio setting.

Equipped with a transformer-coupled output, the AT5047 maintains a constant load output impedance. This feature ensures a stable relationship between the microphone and a mic preamp or console input, even when recording sources at extreme sound pressure levels (SPL).

The AT5047 is part of Audio-Technica's 50 Series, a line committed to delivering pure, unaltered sound. It incorporates the four-part rectangular element originally developed for the AT5040. This unique design features four ultra-thin diaphragms that function together, providing a combined surface area twice that of a standard one-inch circular diaphragm. This innovative approach delivers the benefits of a large diaphragm, such as an extremely low noise floor, without the drawbacks typically associated with larger diaphragm sizes, such as increased weight or decreased transient response.

The AT5047 also features the AT5040's advanced internal shock mounting design, effectively decoupling the capsule from the microphone body. This design, along with the included AT8480 shock mount, minimizes handling noise and ensures superior audio quality.

Each AT5047 microphone is meticulously hand-assembled and individually inspected to ensure 100% quality control. The microphone is housed in a stylish aluminum and brass casing with a high-quality silver finish. Every component has been carefully selected for optimized performance, ensuring that the AT5047 delivers unparalleled audio quality in every recording.

Audio-Technica AT5047 Features

  • Exceptionally wide dynamic range captures the full, expressive character of instruments and voices - from the caress of drum brushes to powerful vocal performances
  • Four rectangular diaphragms (2 micron) function together to provide a combined surface area twice that of a standard one-inch circular diaphragm
  • Discrete components carefully selected and optimized for maximum performance and compatibility with standalone microphone preamps and console inputs
  • Transformer-coupled output provides smooth sonic character
  • Hand assembled and inspected for 100% quality control
  • Advanced internal shock mounting decouples the capsule from the microphone body
  • Elegant, durable housing of aluminum and brass
  • Included advanced-design custom AT8480 shock mount provides superior isolation
  • Custom hard-shell carrying case with die-cut foam compartments offers protection during storage and transport

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Capture pristine audio with this condenser microphone, perfect for studio recording.
  • Experience low noise and high sensitivity with the AT5047's advanced circuitry design.
  • Achieve professional vocal recordings using this cardioid microphone's focused polar pattern.
  • Enjoy durable build quality, ensuring years of reliable use in your home or pro studio.
  • Connect easily via XLR to any professional audio interface for seamless integration.
  • Get exceptional value with this price range, balancing premium features and affordability.

What's in the box:

  • Audio-Technica AT5047 Cardioid Condenser Studio Microphone
  • AT8480 Shockmount
  • 3/8 to 5/8 " Stand Adapter
  • Protective Carrying Case
  • Audio-Technica 5 Year Limited Warranty
