Atomos Shogun AV-19 19" 4K Ultra HD HDR Monitor-Recorder-Switcher
SKU: ATATOMSHGAV1 MFR: ATOMSHGAV1
Earn VIP Reward PointsKey Features
- 19", 4K HDR DCI-P3 7RU rack-mounted monitor
- Record in ProRes, ProRes RAW, Avid DNx to CFexpress or external USB-C storage
- Record up to four isolated camera feeds (ISOs), plus a fifth program output
- Live multi-camera monitoring
- 2x 12G-SDI + 2x 3G-SDI in, 12G-SDI out, HDMI in/out with XLR audio
- Transmit and receive NDI HX3 over Ethernet
New Item?
Free Shipping
See Options
1
Add Adorama Protect:
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
About Atomos Shogun AV-19
19-inch 4K HDR DCI-P3 7RU rackmount monitor-recorder-switcher for professional live production and broadcast. With 4 SDI inputs, ISO recording, live multi-camera switching, NDI HX3 over Ethernet, ProRes/DNx/ProRes RAW, XLR audio, and advanced monitoring tools, it delivers a complete Monitor-Record-Switch workflow for modern studio and outside broadcast environments.

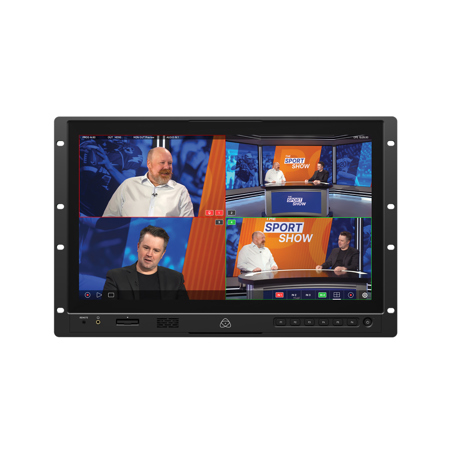

Front View
Rack mount holes
Mounting points for standard 19-inch rack installation using compatible hardware (7 RU height)
Touchscreen control
Easy to navigate and user-friendly interface
CFexpress card slot
Record 12-bit ProRes, ProRes RAW or DNx to CFexpress Type B card
19-inch, 1200 nit 4k HDR display
3840 x 2160 4K UHD 100% Rec.709, 99% DCI-P3, 99% NTSC, 87% BT.2020
Quad split or full screen
Quad-split or switch between 4 inputs
User-defined function buttons
Instant access to up to six frequently used features at the touch of a button
Rear View
Dc / Battery inputs
XLR-4 connections for DC power supply or a single V-Lock battery. Shogun AV-19 features Atomos Continuous Power technology which uses looping for uninterrupted switching between two power sources (DC and/or Battery) during use. When using a third-party power source, ensure GND (-) to Pin 1 and (+) to Pin 4.
Audio In
XLR inputs for line-level or microphone sources, with selectable 48 V phantom power for compatible microphones.
Audio Out
XLR outputs for monitoring. The audio channel routed to each output can be selected via the headphone settings in the audio menu.
HDMI In/Out
Supports recording up to 4Kp60. HDMI output provides live loop out or play-out when in playback mode up to 4Kp60 video.
Gigabit ethernet port
RJ45 connector.
Sync Connection
Input-only reference signal for locking internal timing to an external source during play back
USB-C Ports
Used to attach external USB-C media.
4K/HD-SDI Out
Output to an external monitor or other device. Provides loop-through of the incoming SDI or HDMI signal in record and standby mode, and playback when in playback mode.
4K/HD-SDI In
12G-SDI input connections, backward compatible to 6G, 3G and 1.5G signals. Supports 3G-SDI level A and B.
HD-SDI In
3G-SDI input connections. The SDI inputs support 3G in both level A and B standards.
Use Cases
On-set monitoring
Confidently manage complex productions with a large, color-accurate 4K HDR display that's ideal for directors, technical directors, and camera operators.
Technical & confidence monitoring
Bright, 19-inch 4K HDR display with comprehensive technical monitoring tools including EL Zone false color, focus peaking, waveform & more.
Live switching & routing
Live switcher capable of playing and recording up to four ISO camera feeds, for broadcasts and live events.
Atomos Shogun AV-19 Features
- 19", 4K HDR DCI-P3 7RU rack-mounted monitor
- Record in ProRes, ProRes RAW, Avid DNx to CFexpress or external USB-C storage
- Record up to four isolated camera feeds (ISOs), plus a fifth program output
- Live multi-camera monitoring
- 2x 12G-SDI + 2x 3G-SDI in, 12G-SDI out, HDMI in/out with XLR audio
- Comprehensive technical monitoring tools including EL Zone false color, focus peaking, waveform & more
- Transmit and receive NDI HX3 over Ethernet
- User-definable function buttons
- Log to LUT viewing, supporting 3D & .cube
- Backup recording for redundancy
