True diversity
60 dB nominal, 55 dB minimum
20 dBuV at 60 dB S/N ratio
XLR, balanced: +9 dBV; ½" (6.3 mm), unbalanced: +7 dBV
BNC-type, 50 ohms
Bias voltage 12V DC, 60 mA, each
12-18V DC, 500 mA
Back-Lit LCD Display & Battery / Signal Status LED
High: 30 mW; Low: 10 mW, (switchable), at 50 ohms
ATM710 Condenser Element
Cardioid
Two 1.5V AA, not included
High: 6 hours (alkaline)
Low: 8 hours (alkaline)
Power / Mute switch dual function
Back-Lit LCD Display & Battery / Signal Status LED
Band D: 655.500-680.375 MHz
25 kHz
FM
+/-35 kHz
> 110 dB (A-weighted), typical
< 1% (at 1 kHz, +/-17.5 kHz deviation)
100 m (300'), typical
-5deg. C to +45deg. C (23deg. F to 113deg. F)
70 Hz to 15 kHz (+1 dB, -3 dB)
Receiver: 8.27x1.73x6.47" / 210.0x43.94x164.33mm (WxHxD)
Transmitter: 9.45x1.97" / 240x50mm (LxDia.)
Receiver: 2.4lbs / 1.1kg
Transmitter: 9.8oz / 277.83g, without batteries
4961310108571

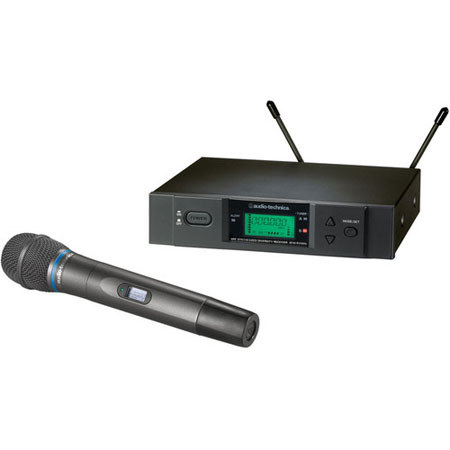

The Audio Technica 3000 Series wireless systems provide reliable, professional UHF technology for the most demanding of applications. The ATW-3171B (Band D 655.500-680.375 MHz) is a frequency agile, true-diversity handheld wireless microphone system.
The ATW-R310 receiver features frequency adjustable UHF reception, allowing access of up to 200 user selectable channels. Diversity reception allows 2 build-in, independent receivers to relay on a single frequency for the strongest possible reception. The rear panel reveals both unbalanced 1/4" Phone and balanced XLR outputs. A comprehensive back-lit LCD display reveals channel and frequency settings, signal status and transmitter battery status. The receiver also features a ground lift switch, convenient in settings where bad power feeds result in ground hum and noise on the output stage.
The ATW-T371 handheld transmitter features an ATM710 cardioid condenser element. The cardioid polar pattern effectively minimizes noise and feed-back at the off-axis sections. The condenser element increases sensitivity and provides details, accurate audio reproduction.
