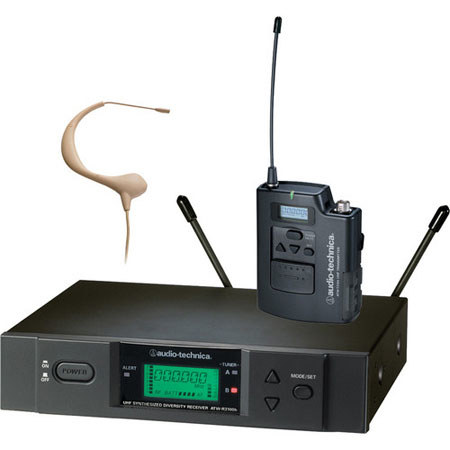

Audio-Technica ATW-3193BTH BodyPack System, Includes ATW-R310 Receiver, ATW-T310 Transmitter & BP893cW MicroEarset (Beige), Band I 482.000-507.000 MHz

SKU: ATATW3193BIT

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Audio-Technica ATW-3193BTH Specifications

  • Type of Receiver

    True diversity

  • Receiver: Image Rejection

    60 dB nominal, 55 dB minimum

  • Receiver: RF Sensitivity

    20 dBuV at 60 dB S/N ratio

  • Receiver: Maximum Output Level

    XLR, balanced: +9 dBV; ½" (6.3 mm), unbalanced: +7 dBV

  • Receiver: Antenna Input

    BNC-type, 50 ohms
    Bias voltage 12V DC, 60 mA, each

  • Receiver: Power Requirements

    12-18V DC, 500 mA

  • Receiver: Display

    Back-Lit LCD Display & Battery / Signal Status LED

  • Transmitter: RF Power Output

    High: 30 mW; Low: 10 mW, (switchable), at 50 ohms

  • Transmitter: Input Connection

    Four-pin Locking Connector
    Pin 1: GND
    Pin 2: INST INPUT
    Pin 3: MIC INPUT
    Pin 4: DC BIAS +5V

  • Type of Microphone

    BP893cW Condenser MicroEarset

  • Microphone: Polar Pattern

    Omnidirectional

  • Transmitter: Batteries

    Two 1.5V AA, not included

  • Transmitter: Battery Life

    High: 6 hours (alkaline)
    Low: 8 hours (alkaline)

  • Transmitter: Mute Switch

    Power / Mute switch dual function

  • Transmitter: Level Control

    Input Level Control: -6dB / 0dB / +6dB / +12dB

  • Transmitter: Antenna Type

    BNC Flexible UHF

  • Transmitter: Display

    Back-Lit LCD Display & Battery / Signal Status LED

  • Operating Frequency

    Band I: 482.000-507.000 MHz

  • Minimum Frequency Step

    25 kHz

  • Modulation Mode

    FM

  • Maximum Deviation

    +/-35 kHz

  • Dynamic Range

    > 110 dB (A-weighted), typical

  • Total Harmonic Distortion

    < 1% (at 1 kHz, +/-17.5 kHz deviation)

  • Operating Range

    100 m (300'), typical

  • Operating Temperature Range

    -5deg. C to +45deg. C (23deg. F to 113deg. F)

  • Frequency Response

    70 Hz to 15 kHz (+1 dB, -3 dB)

  • Dimensions (WxHxD)

    Receiver: 8.27x1.73x6.47" / 210.0x43.94x164.33mm
    Transmitter: 2.60x3.43x0.94" / 66x87x24mm

  • Weight

    Receiver: 2.4lbs / 1.1kg
    Transmitter: 2.9oz / 82.21g

  • UPC Code

    042005171934

About Audio-Technica ATW-3193BTH

The Audio Technica ATW-3193BTH Wireless UHF Bodypack System (Band I 482.000-507.000 MHz) with Headworn Microphone (Beige) is a frequency agile, true-diversity bodypack wireless microphone system.

The ATW-R310 Receiver features frequency adjustable UHF reception, allowing access of up to 200 user selectable channels. Diversity reception allows 2 built-in, independent receivers to relay on a single frequency for the strongest possible reception. The rear panel reveals both unbalanced 1/4" phone and balanced XLR outputs. A comprehensive back-lit LCD display reveals channel and frequency settings, signal status and transmitter battery status. The receiver also features a ground lift switch, convenient in settings where bad power feeds result in ground hum and noise on the output stage.

The ATW-T310 Bodypack Transmitter features Audio-Technica's unique UniPak input connector. The input conveniently accepts both line and microphone level signals (adjustable) allowing instrument signals as well as microphone signals. An assortment of compatible microphones and instrument cables are available from Audio-Technica. The lightweight transmitter operates on 2-AA Alkaline batteries for up to 6 hours (High) and 8 hours (Low).

Audio-Technica ATW-3193BTH Features

  • Antenna power available for powered antennas & other in-line RF devices
  • Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multi-channel wireless system
  • True Diversity operation reduces dropouts
  • Advanced digital Tone Lock squelch effectively blocks stray RF and communicates transmitter data for receiver display
  • Transmitters offer backlit LCD & dual-color LED
  • Locking battery compartment with secure latch and robust design
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced and unbalanced audio output jacks
  • ATW-T310b UniPak transmitter includes Super Hi-Z input that provides optimum load for guitar pickups

Key Features

  • Antenna power available for powered antennas & other in-line RF devices
  • Nine pre-coordinated frequency scan groups
  • True Diversity operation reduces dropouts
  • Advanced digital Tone Lock squelch
  • Transmitters offer backlit LCD & dual-color LED
  • Locking battery compartment with secure latch and robust design

What's in the box:

  • Audio-Technica ATW-R3100B Receiver
  • ATW-T310 Body-Pack Transmitter
  • 2x UHF Receiver Antenna
  • Rack-Mount Adapters
  • BP893cW Omnidirectional MicroEarset
  • Element Covers
  • Windscreens
  • Clothing Clip
  • Audio-Technica 2 Years Limited Warranty
