Audio-Technica ATW-901/H92-TH 9 VHF Wireless System, 169.505-171.905MHz
See all Audio-Technica items

Audio-Technica ATW-901/H92-TH 9 VHF Wireless System, Includes ATW-R900 Receiver, ATW-T901 Transmitter with PRO 92cW-TH Mic (Beige), 169.505-171.905MHz

SKU: ATATW901H92T

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Audio-Technica ATW-901/H92 Specifications

  • Frequency

    169.505-171.905 MHz

  • Type

    VHF highband

  • Modulation Mode

    FM

  • Maximum Deviation

    +/-10 kHz

  • Dynamic Range

    >/=90 dB (A-weighted), typical

  • Total Harmonic Distortion

    <1% (at 1 kHz, +/-10 kHz deviation)

  • Operating Range

    200' (60.9m) typical, Open range environment with no interfering signals

  • Operating Temperature Range

    40deg. F (4deg. C) to 110deg. F (43deg. C) Battery performance may be reduced at very low temperatures

  • Frequency Response

    80 Hz to 13 kHz

  • Receiver: Receiving System

    Non-diversity, single-channel, dual antenna system

  • Receiver: Image Rejection

    50 dB minimum

  • Receiver: RF Sensitivity

    20 dBuV at 60 dB S/N ratio (50 ohms termination)

  • Receiver: Audio Output

    Nominal Output Level
    XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
    1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)

  • Receiver: Power Supply

    100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply

  • Transmitter: RF Power Output

    10 mW

  • Transmitter: Spurious Emissions

    Following federal and national regulations

  • Transmitter: Input Connections

    Four-pin Locking Connector
    Pin 1: GND
    Pin 2: INST INPUT
    Pin 3: MIC INPUT
    Pin 4: DC BIAS +9V

  • Transmitter: Batteries

    Two 1.5V AA (not included)

  • Transmitter: Battery Life

    8 hours (alkaline) Depending on battery type and use pattern

  • Microphone: Element

    Condenser

  • Microphone: Polar Pattern

    Omni directional

  • Microphone: Frequency Response

    20 to 20,000 Hz

  • Microphone: Open Circuit Sensitivity

    -45 dB (5.6 mV) re 1 V at 1 Pa

  • Microphone: Maximum Input

    116 dB SPL, 1 kHz at 1% T.H.D.

  • Microphone: Signal to Noise Ratio

    60 dB, 1 kHz at 1 Pa

  • Microphone: Current Consumption

    0.3 mA typical at 5 V

  • Microphone: Voltage Range

    1.5 to 9 V

  • Microphone: Cable Length

    55" (139.7cm)

  • Microphone: Termination

    Locking 4-pin connector for use with A-T UniPak bodypack transmitters

  • Dimensions

    Receiver: 7.48 x 1.82 x 5.06" / 19.0 x 4.62 x 12.85cm (W x H x D)
    Transmitter: 2.76 x 4.08 x 0.98" / 7.01 x 10.36 x 2.49cm (W x H x D)
    Microphone: 0.85 x 0.36" / 2.159 x 0.91cm (L x Diam.)
    Boom: 4.33 x 0.09" / 11.0 x 0.23cm (L x Diam.)

  • Weight

    Receiver: 12oz / 340.19g
    Transmitter: 2.8oz / 79.38g (without batteries)
    Mic and Boom: 0.14oz / 3.97g
    Mic, Boom, Connector and Cable: 0.84oz / 23.81g

  • UPC Code

    042005175345

About Audio-Technica ATW-901/H92

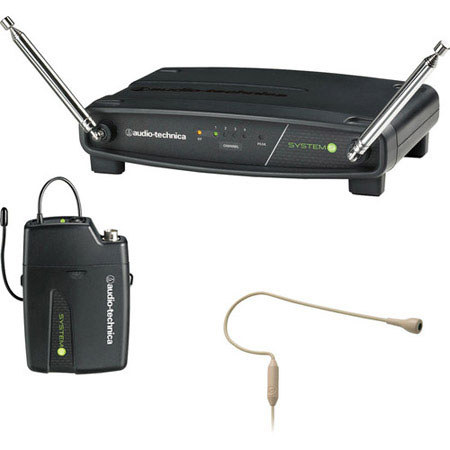

The Audio-Technica ATW-901/H92-TH System 9 VHF Wireless System with Mini Head Worn Microphone (Beige) is designed for live sound reinforcement. The system consists of a single-channel frequency-agile non-diversity receiver with grounded dipole extendable antennas, a UniPak bodypack transmitter and a Pro 92cW-TH miniature headword beige condenser microphone. The receiver can operate on 169.505, 170.245, 171.045, or 171.905 MHz channels. The unit includes indicator lights for power, AF peak and RF signals, as well as volume and squelch controls. For connections, the receiver uses both balanced XLR and unbalanced 1/4" output jacks.

The bodypack transmitter includes a series of DIP switches for trimming the instrument or microphone input level, as well as selecting from the four available radio transmission channels. The outside of the unit features a mute button, a microphone or instrument input connector, a flexible antenna and an LED indicator light for power, mute and battery status. The condenser microphone features a lightweight contoured earpiece and a flexible boom for comfortable fit and easy adjustments.

Audio-Technica ATW-901/H92 Features

  • Easy operation and clear, natural sound quality
  • 4 Selectable frequency-coordinated VHF channels
  • Balanced XLR and unbalanced 1/4-+/- output jacks enable use with a wide variety of audio gear
  • Reliable performance and durable construction
  • Advanced dipole antenna system for extended operating range

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Easy operation and clear, natural sound quality
  • 4 Selectable frequency-coordinated VHF channels
  • Balanced XLR and unbalanced 1/4 output jacks
  • Reliable performance and durable construction
  • Advanced dipole antenna system

What's in the box:

  • Audio-Technica ATW-R900 Receiver
  • ATW-T901 UniPak Transmitter
  • Mini Head Worn Microphone
  • Microphone Storage Pouch
  • Microphone Clothing Clip
  • Microphone Windscreen
  • Power Supply
  • Audio-Technica 2 Years Limited Warranty
