Atlas Sound Atmosphere AZM8 8-Zone Master Signal Audio Processor

SKU: ATAZM8 MFR: AZM8
Earn VIP Reward Points

Key Features

  • Manage audio across 8 zones with the Atlas Sound AZM8, perfect for versatile sound control.
  • Enjoy pristine audio with <0.01% THD+N, ensuring clear, high-fidelity sound in every zone.
  • Customize sound with EQ, dynamics, and delay settings for tailored audio experiences.
  • Integrate various audio sources using balanced mic/line, RCA inputs, and accessory ports.
  • Remotely control the AZM8 via Ethernet or WiFi for convenient, flexible system management.
  • Ensure seamless operation with low latency, keeping audio and video synchronized perfectly.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Atlas Sound Atmosphere AZM8 Specifications

System
  • Type

    Signal Processor

Output Power

Jump to...
  • Mic / Line Inputs

    6 (Euroblock)

  • RCA

    4 (mono-summed)

  • Line Outputs

    8 (Euroblock)

  • General Purpose Inputs

    6 (Euroblock)

  • High Priority Inputs

    1 (Euroblock)

  • General Purpose Outputs

    2 (Euroblock)

  • Accessory Ports

    4 (RJ45)

  • Network Port

    1 (RJ45)

Power Requirements

Jump to...
  • Main Requirements

    100 - 240 VAC, 50 - 60 Hz (C14 Mains Inlet Connector)

Audio Inputs

Jump to...
  • Balanced Mic / Line Inputs

    Connector Type: 3.5mm Pitch Euroblock
    Color: Green
    Sensitivity: +4dBu with Gain Set to 0dB
    Input Gain: 0 - 60dB in 6dB Steps
    Phantom Power Voltage: +48VDC 10mA
    Accepts Unbalanced Inputs: Yes
    Maximum Input Level: +20dBu (7.72 Vrms) with Gain Set to 0dB
    Input Impedance: 3.9k Ohm
    EIN: -125dBu with 150 Ohm Source Impedance and 20kHz BW
    CMRR: Typically 65dB at 1kHz
    Maximum Cable Size: 18AWG
    Minimum Cable Size: 24AWG

  • RCA

    Right Channel Color: Red
    Left Channel Color: White
    Type: Mono-summed Pairs
    Sensitivity: -10dBV
    Maximum Input: 2.4 Vrms (7.6dBV / 9.8dBu) for Both Inputs Driven and 4.78 Vrms (13.6dBV / 15.8dBu) for a Single Input

Audio Outputs

Jump to...
  • Balanced Line Outputs

    Connector Type: 3.5mm Pitch Euroblock
    Color: Orange
    Maximum Output Level: +20dBu (7.75 Vrms)
    Maximum Cable Size: 18AWG
    Minimum Cable Size: 24AWG

Audio Performance

Jump to...
  • THD+N

    <0.01% at 0dBu Input / Output with 0dB Gain at 1kHz

  • Frequency Response

    +/-0.5dB 20Hz - 20kHz

  • Dynamic Range (S/N)

    >108dB Unweighted 20Hz - 20kHz, > 110dB "A" Weighted

  • Crosstalk

    >-78dB at 1kHz

  • Latency

    Euroblock Input or RCA Input to Euroblock Output: 4.33msec
    Accessory Input A/C to Euroblock Output: 5.38msec
    Accessory Input B/D to Euroblock Output: 6.71msec

  • Maximum Hardware Gain

    60dB

Input Processing

Jump to...
  • EQ

    24dB/oct HP, PEQ, Low / High Shelf, Notch, LP / HP (BW 6, 12, 24, 48dB/oct)

  • Dynamics

    Gate, De-Esser, Compressor, Auto Gain

  • Other

    Gain, Mixer, Priority Router

Output Processing

Jump to...
  • EQ

    PEQ, Tilter Filter, Low / High Shelf, Notch, LP / HP (BW 6, 12, 24, 48dB/oct) Speaker Tuning EQ Presets

  • Dynamics

    Ambient Noise Compression, Limiter

  • Other

    Delay (100ms), Gain

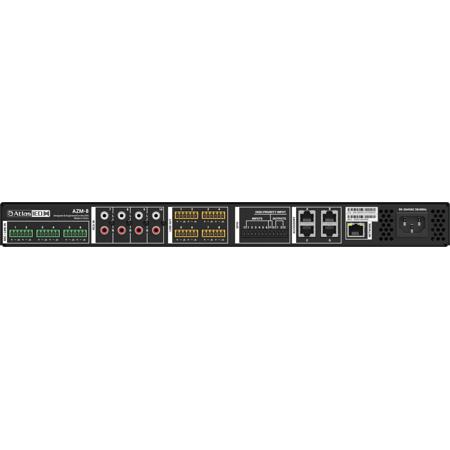

Other Connections

Jump to...
  • General Purpose Inputs

    Contact Closure: Normally Open
    Capable of Internal Pull-up to 5VDC via User Interface
    Voltage Input: 0 - 12VDC (1.3VDC Trigger Voltage)

  • High Priority Input

    Contact Closure: Normally Open
    Capable of Internal Pull-up to 5VDC via User Interface
    Voltage Input: 0 - 12VDC (1.3VDC Trigger Voltage)

  • General Purpose Outputs

    Source Current: 10mA at 2VDC
    Maximum Sink Current: 180mA
    Maximum Sink Voltage: 24VDC

  • Accessory Ports

    Maximum Accessories per Port: 8
    Maximum Accessories per AZM: 12 (10 for AZM4)
    Maximum Bus Length: 1000'
    Maximum Audio Wall Plates per Port: 1

  • Ethernet

    10/100mB

Mechanical

Jump to...
  • Airflow

    Front to Back

  • Operating Ambient Temperature Range

    32 Degree - 104 Degree F (0 Degree - 40 Degree C)

  • Cooling System

    Forced Air with Side and Back Panel Venting

Energy Consumption

Jump to...
  • Max

    256 BTU / Hr

  • No Accessories

    127 BTU / Hr

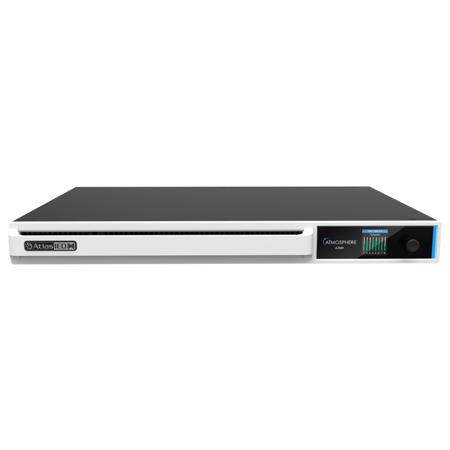

Front Panel

Jump to...
  • Screen

    128 x 128 Color TFT Normally White, 1.45"

  • Encoder

    24 Detent, Push Button

  • Light Bar

    RGB (Blue = On, Red = Live Fault)

  • Type

    802.11 b/g/n 2.4GHz

  • Free Air Range

    60'

Agency Approvals

Jump to...
  • Safety

    Conforms to: ANSI / UL 62368-1
    Certified to: CAN / CSA C22.2 #62368-1
    CE (Europe), RCM (Australia)

  • FCC / ISED

    Part 15 (Class B) (US), ICES-003 (Canada)

General

Jump to...
  • Rack Mount Requirements

    1 RU, 19"

  • Dimensions (W x H x D)

    With Rack Ears: 19 x 1.75 x 11.7" (483 x 45 x 297mm)

  • Weight

    8.330 lbs (3.78kg)

  • UPC Code

    612079700950

About Atlas Sound Atmosphere AZM8

Enhance your audio experience with the Atmosphere AZM8, a sophisticated 8-Zone Master Signal Audio Processor that serves as the core of any Atmosphere audio control system. This advanced audio processor utilizes powerful Digital Signal Processing (DSP) and innovative algorithms to deliver custom audio solutions for a wide array of spaces, from home theaters to commercial sound systems.

The AZM8 is more than just a processor; it's a comprehensive audio management tool. It boasts a built-in message player, virtual wall controllers, and an intelligent ambient noise sensor. The unique Tilter Filter, auto-gain, General Purpose Input/Output (GPIO), and scheduler features transform the AZM8 into a true audio processing powerhouse.

Compatibility is a key strength of the AZM8. It seamlessly integrates with all six Atmosphere accessories for control, remote audio input, and ambient noise sensing. The processor can support up to 16 plug-and-play accessories across its four accessory ports, each designed to function reliably up to a distance of 1000ft.

Programming the AZM8 is a breeze, thanks to its modern on-board web interface. Optimized around common use-cases, this interface is built on Progressive Web App technology, ensuring it's device agnostic and responsive. This meticulous design ensures an optimal user experience without compromising on design freedom.

The AZM8 also offers multiple connectivity options. In addition to Ethernet, it comes with built-in Wi-Fi, allowing tablets and other controlling devices to connect directly to the processor. This high-quality, state-of-the-art audio processor from the reputable brand Atlas Sound is designed to elevate your audio processing capabilities to new heights.

Atlas Sound Atmosphere AZM8 Features

  • On board WIFI to use as an access point or connect to existing Wi-Fi network
  • 4 accessory ports that support up to 8 plug and play accessories each (maximum 16 per AZM8)
  • Auto noise compensation available for all zones
  • Large library of AtlasIED speaker presets
  • Integrated message player
  • App-less virtual wall controller access via QR code

Warranty Information

This product has a limited warranty of 36 months for parts and 12 months for labor.

Key Features

  • Manage audio across 8 zones with the Atlas Sound AZM8, perfect for versatile sound control.
  • Enjoy pristine audio with <0.01% THD+N, ensuring clear, high-fidelity sound in every zone.
  • Customize sound with EQ, dynamics, and delay settings for tailored audio experiences.
  • Integrate various audio sources using balanced mic/line, RCA inputs, and accessory ports.
  • Remotely control the AZM8 via Ethernet or WiFi for convenient, flexible system management.
  • Ensure seamless operation with low latency, keeping audio and video synchronized perfectly.

What's in the box:

  • Atmosphere AZM8 8-Zone Master Signal Audio Processor
  • Power Supply
  • Rack Ears
  • Atlas Sound 3 Year Limited Warranty
