Audio-Technica BP893C Specifications

  • Transducer

    Fixed-charge back plate, permanently polarized condenser

  • Polar Pattern

    Omnidirectional

  • Frequency Response

    20Hz to 20kHz

  • Open Circuit Sensitivity

    -34 dB (19.9 mV) re 1V at 1 Pa

  • Dynamic Range (Typical)

    88dB, 1kHz at Max SPL (wired only)

  • Signal-to-Noise Ratio

    68dB, 1kHz at 1 Pa

  • Maximum Input Sound Level

    114dB SPL, 1kHz at 3% T.H.D.

  • Power Requirements

    11-52V DC, 2mA typical (wired only)

  • Current Consumption

    0.1 mA typical at 5V (wireless only)

  • Output Impedance

    245 ohms (wired only)

  • Output Connector (Power module)

    Integral 3-pin XLRM-type

  • Low Frequency Roll-Off

    80Hz, 18dB/octave (wired only)

  • Voltage Range

    2.5-11V (wireless only)

  • Cable

    55" / 1.4m (Unterminated)

  • Dimensions (LxDiameter)

    Microphone: 0.32x0.10" / 8.1x2.6mm
    Boom: 1.04x0.04" / 26.4x1.07mm
    Power Module: 3.84x0.74" / 97.6x18.9mm (wired only)

  • Weight

    Microphone, boom & earpiece: 2.0g / 0.07oz

  • UPC Code

    042005169498

About Audio-Technica BP893C

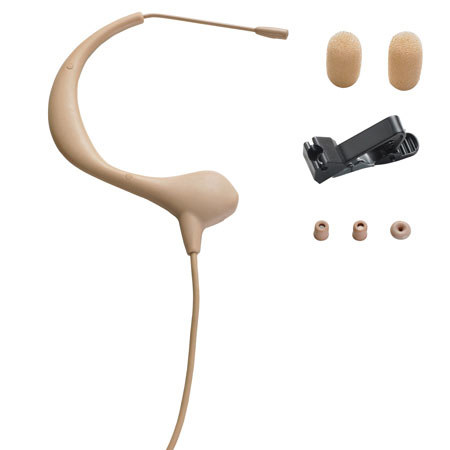

The Audio-Technica BP893C MicroEarset Omnidirectional Condenser Headworn Mic (Beige) is a small, over-the-ear boom microphone designed to provide exceptionally clear and natural vocal pickup in theatrical performances, houses of worship, broadcast studios and many other live applications. Its thin, unobtrusive design, beige color and 1" length makes it barely noticeable to an audience and weighing only .07 oz, the one wearing it will practically forget it's on.

The microphone is an omnidirectional miniature condenser, engineered for natural vocal reproduction with an extended frequency response of 20 to 20,000 Hz, similar to what you would expect from high-quality lavaliere microphones. The power module features Audio-Technica's proprietary UniSteep filter which allows you to choose from flat response or low-frequency roll-off helping to reduce or eliminate ambient noise.

This MicroEarset BP893c-TH includes a permanently attached 55" (1.4 m) miniature cable that comes unterminated for use with Audio-Technica, Sennheiser, Shure and other manufacturer's systems. It requires 11 to 52 volt phantom power for operation but is equipped with the AT8539 power module which provides this right out of the box. Also included is a cable clip to relieve strain, two windscreens, two element covers, one moisture guard, a belt clip and a protective carrying case.

Audio-Technica BP893C Features

  • Outstanding clarity and intelligibility
  • Lightweight, ergonomic design
  • Extremely unobtrusive, 1-inch flexible boom
  • Secure over-the-ear placement
  • Extended frequency response for natural vocal reproduction
  • Unterminated for applying custom connections
  • UniSteep filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality

Key Features

  • Outstanding clarity and intelligibility
  • Lightweight, ergonomic design
  • Extremely unobtrusive, 1-inch flexible boom
  • Secure over-the-ear placement
  • Unterminated for applying custom connections

What's in the box:

  • Audio-Technica BP893C MicroEarset Omnidirectional Condenser Headworn Microphone
  • AT8440 Cable Clip
  • 2 x AT8157 Windscreens
  • 2 x AT8156 Element Covers
  • Moisture Guard
  • Belt Clip
  • Carrying Case
  • Audio-Technica 2 Years Limited Warranty
