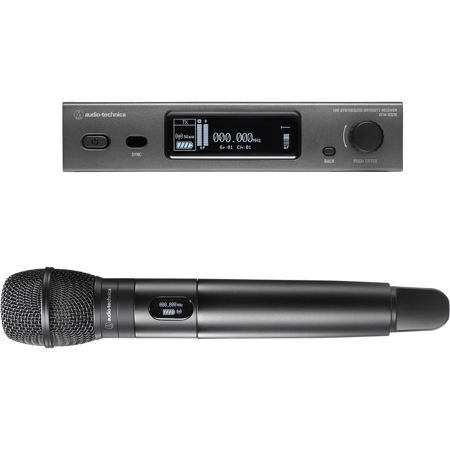

Audio-Technica 3000 Series ATW-3212/C710EE1 Fourth Generation Wireless Handheld Microphone System with ATW-C710 Capsule, Frequency Band EE1: 530.000 to 589.975MHz

ATW-R3210 3000-Series Receiver
The ATW-R3210 receiver features automatic frequency scanning that eliminates the need for searching for clear channels by automatically selecting the most appropriate frequency for the area in which the wireless is operating. 25 kHz frequency spacing enables the system to easily find an open frequency in crowded RF environments, while pre-coordinated frequency scan groups simplify selection of usable frequencies in a multichannel wireless system. Once selected, frequencies can be synced with transmitters using the system's IR sync functionality.

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in four frequency bands
• True Diversity operation reduces dropouts
• Frequency scan and IR sync functionality for ease of setup
• Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
• Receiver include OLED screens for optimal readout of key settings and alerts
• Antenna power available for powered antennas and other in-line RF devices
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks

The system's squelch setting can be configured to automatically adjust to maximize range while minimizing potential interference. Advanced digital Tone Lock squelch provides enhanced rejection of interference. In addition, the Tone Lock signal from the transmitter also conveys information on the transmitter's battery condition and mute status back to the receiver for display. The receiver's dual-mode front panel display can switch between the standard view, which provides continuous indication of RF signal strength, frequency, mute status, audio modulation level of the received signal and transmitter information and a performance view, which highlights key metering.

Settings can be easily adjusted using the control dial and BACK button located on the receiver's front panel. Settings can also be locked to prevent them from being changed. Operating on 12V DC, the receiver incorporates rear-panel connections for balanced XLR and unbalanced 1/4" outputs, along with detachable BNC 1/4" wave antennas. Switchable 12V DC antenna power is available on the BNC-type connectors for powered antenna accessories. The receiver is half-width for a standard 1U 19" rack-mount and includes rack-mount adapters.

ATW-T3202 3000-Series Handheld Transmitter
All transmitters operate using two AA batteries and feature high- and low-level RF output settings. The low-level setting extends battery life while retaining a strong RF signal link. Charging terminals on the base of each transmitter work with the optional ATW-CHG3 and ATW-CHG3N charging docks to recharge AA NiMH batteries. Each transmitter's OLED screen presents a great deal of setup and operating information, including battery indicator, mute status and operating frequency.

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in four frequency bands
• Several Audio-Technica interchangeable microphone capsules separately available
• Industry-standard thread for use with interchangeable microphone capsules
• Unique multifunction button on the body-pack transmitter can be used to switch to a backup frequency
• IR sync functionality for ease of setup
• Charging terminals on transmitters to recharge NiMH batteries

Setup functions are menu-driven via soft-touch controls, which are covered to prevent accidental activation. A dual-color status LED illuminates green when power is on and red when the transmitter is muted or battery power is low. Transmitters have a selectable high-pass filter and a gain setting that can be adjusted in 2 dB increments. As with the receiver, transmitter settings can be locked. The ATW-T3202 handheld transmitter offers extremely low handling noise.

The transmitter's industry-standard thread mount also allows it to be used with additional Audio-Technica capsules (available separately) and other compatible capsules. Its multifunction button can be programmed to perform a specific function when pressed and held: mute the audio; mute the audio even when the transmitter is locked; turn off RF transmission; or switch to a preselected backup frequency to avoid interference. (The multifunction button can also be disabled.) The transmitter housing is made of metal with an integral antenna and an OLED screen. Each handheld transmitter includes a heavy-duty Quiet-Flex stand clamp.

ATW-C710 Interchangeable Cardioid Condenser Microphone Capsule
The interchangeable cardioid condenser microphone capsule (ATM710 equivalent) for use with ATW-T5202 and ATW-T3202 handheld transmitters. Its industry-standard thread allows use with other compatible handheld transmitters.

• Industry-standard thread mount
• Excels in venues with controlled stage volume or in-ear monitoring
• Condenser design for studio-quality performance
• Customized vocal reproduction, high fidelity and extreme clarity maximizing impact and intelligibility
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
