AAdynTech Cinema Punch Specifications

  • Control

    UIM, Wired & Wireless DMX/RDM

  • Source

    LED, 5600 deg. CCT, 92+ CRI

  • Life Expectancy

    60,000 Hours

  • Cooling

    Passive/Active

  • Mounting

    Junior Pin/28mm Spigot

  • Certifications

    ETL, UL, CSA, CE and RoHS Compliant

  • Input Voltage

    100-277 VAC

  • Input Frequency

    50/60 Hz

  • Input Current

    4.87 Amp at 120V 584.4 W at full

  • Connection

    US NEMA 5-15

  • No Diffuser

    At 10': 40000 Lux; 3716 FC
    At 15': 17613 Lux; 1636 FC
    At 20': 9837 Lux; 914 FC

  • 5 deg. Diffuser

    At 10': 39200 Lux; 3642 FC
    At 15': 14310 Lux; 1330 FC
    At 20': 8240 Lux; 765 FC

  • 15 deg. Diffuser

    At 10': 25450 Lux; 2364 FC
    At 15': 11628 Lux; 1080 FC
    At 20': 6520 Lux; 606 FC

  • 30 deg. Diffuser

    At 10': 13960 Lux; 1297 FC
    At 15': 6230 Lux; 579 FC
    At 20': 3665 Lux; 340 FC

  • 55 deg. Diffuser

    At 10': 5462 Lux; 507 FC
    At 15': 2852 Lux; 264 FC
    At 20': 1570 Lux; 146 FC

  • Beam Angle

    No Diffuser: 13.3 deg.
    5 deg. Diffuser: 16.2 deg.
    15 deg. Diffuser: 18.3 deg.
    30 deg. Diffuser: 28.1 deg.
    55 deg. Diffuser: 45.3 deg.

  • Field Angle

    No Diffuser: 18.9 deg.
    5 deg. Diffuser: 26.3 deg.
    15 deg. Diffuser: 33.4 deg.
    30 deg. Diffuser: 50.1 deg.
    55 deg. Diffuser: 76.7 deg.

  • Operating Temperature

    -4 to 122 deg. F (-20 to 50 deg. C)

  • Dimensions (L x W x H)

    17 x 18.5 x 20.3" (43.18 x 46.99 x 51.56cm)

  • Weight

    48.50 lbs (22kg)

3 Accessories for AAdynTech Cinema Series 92+ CRI Punch Daylight LED Fixture with Built-In Wireless DMX and RDM Receiver, 3716 FC at 10'

  • All Accessories (3)
  • Barndoors (1)
  • Filters (2)
AAdynTech Punch Barndoor
AAdynTech Punch Barndoor
$324.00
Recommended
AAdynTech 1/4 CTO Hard Gel Filter for Punch Plus LED Fixture
AAdynTech 1/4 CTO Hard Gel Filter for Punch Plus LED Fixture
$63.00
Recommended
AAdynTech 1/4 Minus Green Hard Gel Filter for Punch Plus LED Fixture
AAdynTech 1/4 Minus Green Hard Gel Filter for Punch Plus LED Fixture
$63.00
Recommended

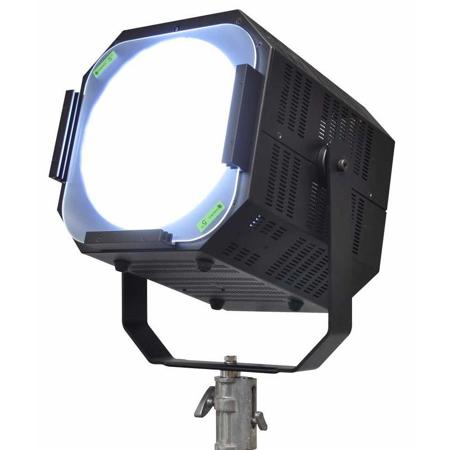

About AAdynTech Cinema Punch

The AAdynTech Cinema Series Punch Daylight offers high CRI, 92+, with an output of 3,900 f/c @ 10 feet, while consuming less than 5 amps of power. The Punch Plus is self-contained with a universal power supply and the need for heavy and expensive head cables, ballasts or spare lamps is eliminated, dramatically reducing transport weight.

Crew and talent safety is always a concern and the Punch Plus generates so little heat and can be held with bare hands and harmful UV or IR emissions are virtually eliminated. Instant 'ON' ensures no warm-up wait time on set. The Punch Plus Daylight DMX can either be wired or wireless with a built in Wireless DMX/RDM receiver. Flicker free up to 12,000 fps.

AAdynTech Cinema Punch Features

  • 3,900 f/c @ 10 feet - CRI 92+
  • Consumes 4.78 Amps @ 120 Vac
  • Universal built in power supply
  • No ballast or heavy cables
  • No UV or IR radiation
  • No multiple shadows with lenses
  • 5, 15, 30 & 55 degree lenses
  • Lightning & Strobe Effects
  • Full DMX control w/loop through
  • Brightness control; no color shift
  • Flicker free up to 12,000 fps @ full power

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 3,900 f/c @ 10 feet - CRI 92+
  • Consumes 4.78 Amps @ 120 Vac
  • Universal built in power supply
  • No ballast or heavy cables
  • No UV or IR radiation
  • No multiple shadows with lenses

What's in the box:

  • AAdynTech Cinema Series 92+ CRI Punch Daylight LED Fixture with Built-in Wireless DMX and RDM Receiver
  • 5 Degree Lens
  • 15 Degree Lens
  • 30 Degree Lens
  • 55 Degree Lens
  • AAdynTech 2 Year Limited Warranty
