ELCAN Armament Technology SpecterDR Dual Role Specifications

  • Magnification

    4x / 1x

  • Reticle

    Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder and 'area fire' circles.

  • Aiming Dot diameter

    1.5 MoA @ 4x, 6 MoA @ 1x

  • Ballistic correction

    CX5395 reticle: 100-600m for 5.56 carbine, 700-1000m for 5.56mm LMG

  • CQB offset

    <44mm @ 60m

  • Field of View

    26 deg @ 1x, 6.5 deg @ 4x
    FoV @4x: 11.4 m @ 100 m (34.2 ft @ 100 yds)
    FoV @1x: 48.8 m @ 100 m (146.3 ft @ 100 yds)

  • Illumination source

    Battery-powered LED

  • Crosshair illumination

    5 settings, AN/PVS-22 compatible

  • Red Dot illumination

    5 settings, AN/PVS-22 compatible

  • Eye Relief

    70 mm

  • Entrance pupil

    28mm

  • Exit pupil

    8mm

  • Nominal focus

    150m @ 4x, 70m @ 1x

  • Fixed focus range

    20m to infinity

  • Exterior finish

    Hard-anodized aluminum, gray/black color

  • Adjustment resolution

    0.5 minute of angle

  • Adjustment range

    120 minutes of angle

  • Base requirement

    Mil-Std-1913 'Picatinny Rail'

  • Attachment

    ARMS Levers

  • Environmental

    Waterproof: 66 ft for 2 hours
    Shockproof: 450 g's

  • Battery type

    DL 1/3N (3v Lithium)

  • Battery life

    600 hours minimum, 3000 hours average

  • Dimension (LxWxH)

    153mm nominal x 74mm nominal x 78mm nominal

  • Weight

    660g nominal

  • Special Note

    Please Note! This item has an EXPORT RESTRICTION which requires a special Export License Obtain From the U.S. Department of Commerce or the U.S. Department of State.

  • Battery Capacity

    0.66 Wh

  • UPC Code

    6665950000018

0 Accessories for ELCAN Armament Technology SpecterDR Dual Role, 1x / 4x Optical Sight with 5.56 CX5395 Ballistic Reticle with Integral A.R.M.S. Picatinny Mount

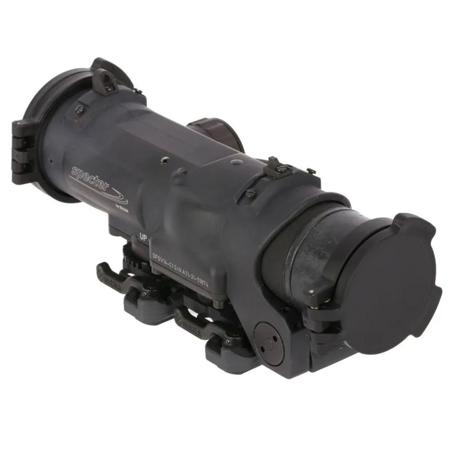

About ELCAN Armament Technology SpecterDR Dual Role

SpecterDR is a revolutionary optical design that combines the best of close and precision fire ranged combat features into a single, low profile dual-field-of-view (DFOV) sight. SpecterDR with its dual-role capability lets soldiers move safely through buildings or confined areas in red dot mode 1x and then instantly switch to 4x to accurately engage enemies at extended range without changing sights.

Situational awareness in both magnifications is improved with ultra-wide viewing angles and unmatched viewing in low light conditions. SpecterDR is half the weight and twice the capability of carrying two scopes, without compromise to mission effectiveness or reliability.

ELCAN Armament Technology SpecterDR Dual Role Features

  • Switches instantly from close combat 1x to telescopic 4x
  • Eye relief (cheekweld) and bore sighting remain constant
  • Large, low light exit pupil remains constant
  • High efficiency broadband coatings for extended low light performance
  • Integrated lever-lock mount for optimum weight reduction
  • Rugged, Reliable Performance
  • Shock Protected Precision Optics
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Key Features

  • Switches instantly from close combat 1x to telescopic 4x
  • Eye relief (cheekweld) & bore sighting remain constant
  • Large, low light exit pupil remains constant
  • High efficiency broadband coatings for extended low light performance
  • Integrated lever-lock mount for optimum weight reduction
  • Rugged, Reliable Performance
