ELCAN Armament Technology ELCAN SpecterDR Sight 1.5x/6x Optical w/7.62 Reticle
See all ELCAN Armament Technology items

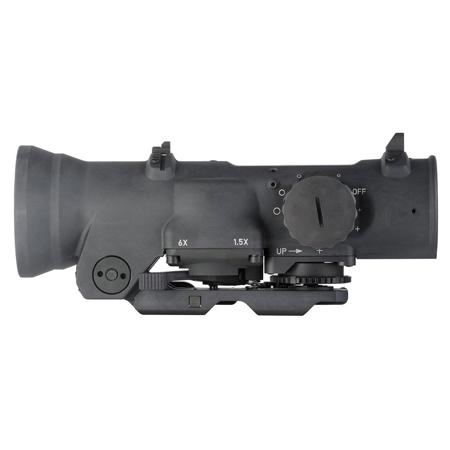

ELCAN Armament Technology SpecterDR Dual Role 1.5x / 6x Optical Sight with 7.62 Ballistic Reticle with Integral A.R.M.S. Picatinny Mount

SKU: ATDFOV156C2

This item is no longer available.

Recommended Alternatives

ELCAN Armament Technology SpecterDR 1x/4x: Picture 1 regular
ELCAN Armament Technology 1x/4x 32mm SpecterDR Tact Riflescope, Illum 5.56 Ret
$2,583.00$2,358.00
ELCAN Armament Technology SpecterDR 1x/4x: Picture 1 regular
ELCAN Armament Technology 1x/4x 32mm SpecterDR Tact Riflescope, Illum 7.62 Ret
$2,583.00$2,358.00
ELCAN Armament Technology SpecterDR 1.5x/6x: Picture 1 regular
ELCAN Armament Technology 1.5x/6x 42mm SpecterDR Tact Riflescope,Illum 5.56 Ret
$3,433.00$2,985.00
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2013-04-01T21:00:00

Rated 5 out of 5

Awesome scope, But.......

Amazing scope, But the ARM mounts are still a flaw, I mounted it on my SCAR 16 and was loose purchased the MKII Mounts before I got the scope because I have heard of issues, Glass is crystal clear, not sure how the Zero is because of the loose mounts, but the red dot is bright even on a sunny day no problem seeing and I like the Both eye open view, and the build quality I don't think it is overally heavy for what it does. My only gripe is for the money, the mounts should fit like a glove. Overall a great scope for CQB and longer distance. Adorama was a top notch seller and had the lowest price around and shipped lightning fast shipping. Would do business again in a heartbeat.

Sua S.

ELCAN Armament Technology 1.5x Rifle Scope Specifications

  • Magnification

    6x / 1.5x

  • Reticle

    Dual-thickness ballistic crosshair with user-selectable red dot and VSOR rangefinder

  • Aiming Dot Diameter

    1.5 MoA at 6x, 6 MoA at 1.5x

  • Ballistic correction

    CX5456 reticle: 100-1000m for 7.62 NATO

  • CQB offset

    <44mm at 60m

  • Field of View

    16 deg at 1.5x, 4 deg at 6x
    FoV at 6x: 7 m at 100 m (21 ft at 100 yds)
    FoV at 1.5x: 28.7 m at 100 m (86 ft at 100 yds)

  • Illumination source

    Battery-powered LED

  • Crosshair illumination

    5 settings, AN/PVS-22 night vision compatible

  • Red Dot illumination

    5 settings, AN/PVS-22 night vision compatible

  • Eye Relief

    70 mm

  • Entrance pupil

    42mm

  • Exit pupil

    7mm

  • Nominal focus

    300m at 6x, 105m at 1.5x

  • Fixed focus range

    20m to infinity

  • Exterior finish

    Hard-anodized aluminum, gray/black color

  • Adjustment resolution

    0.5 minute of angle

  • Adjustment range

    120 minutes of angle

  • Base requirement

    Mil-Std-1913 'Picatinny Rail' (Weaver compatible)

  • Attachment

    ARMS Levers

  • Environmental

    Waterproof: 66 ft for 2 hours
    Shockproof: 450 g's

  • Battery type

    DL 1/3N (3v Lithium)

  • Battery life

    600 hours minimum, 3000 hours average

  • Dimension (LxWxH)

    183mm nominal x 75mm nominal x 73mm nominal

  • Weight

    705g nominal

  • Battery Capacity

    0.66 Wh

  • UPC Code

    6665950000056

About ELCAN Armament Technology 1.5x Rifle Scope

FEATURED REVIEWS

Awesome scope, But.......

By Sua S.

Amazing scope, But the ARM mounts are still a flaw, I mounted it on my SCAR 16 and was loose purchased the MKII Mounts before I got the scope because I have heard of issues, Glass is crystal clear, not sure how the Zero is because of the loose mounts, but the red dot is bright even on a sunny day no problem seeing and I like the Both eye open view, and the build quality I don't think it is overally heavy for what it does. My only gripe is for the money, the mounts should fit like a glove. Ove...

View full Review

The Elcan SpecterDR 1.5-6x is the second evolution in the family of Dual Role Optical Sights. Based upon the battle-proven SpecterDR design, the SpecterDR 1.5-6x provides higher magnification to enable greater precision and longer engagement ranges, while at the same time providing exceptional field of view in CQB mode.

The SpecterDR 1.5-6x enjoys Elcan's famous crystal-clear optics as well as a generous eye relief, making it the ideal instrument for designated marksman rifles and other long range applications. As with all SpecterDR sights, the magnification and field of view can be changed instantly with the throw of a lever.

Depending upon the situation, the user may adjust the sight to illuminate the crosshair or just a brilliant red dot in the center. Because the reticles are etched in glass, they are plainly visible even in the case of loss of electrical power due to battery failure or EMP. The SpecterDR family offers the best single solution for Long Range and CQB engagements and is designed to withstand the rigors of modern professional use.

ELCAN Armament Technology 1.5x Rifle Scope Features

  • Switches instantly from close combat (1.5x) to telescopic (6x)
  • Eye relief (cheekweld) and bore sighting remain constant
  • Large, low light exit pupil remains constant
  • High efficiency broadband coatings for extended low light performance
  • Rugged, Reliable Performance
  • Shock Protected Precision Optics
  • Integrated back-up iron sights are bore sighted to scope
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Switches instantly from close combat (1.5x) to telescopic (6x)
  • Eye relief (cheekweld) & bore sighting remain constant
  • Large, low light exit pupil remains constant
  • High efficiency broadband coatings for extended low light performance
  • Rugged, Reliable Performance
  • Shock Protected Precision Optics
