Audio-Technica RF Venue DISTRO4 Wideband Antenna Distributor Connects RF & DC Power for Up To Four Wireless Receivers, Includes Additional Set of Cascade Ports & RF & DC Power Cables
SKU: ATDISTRO4
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Audio-Technica DISTRO4
DISTRO4 is a broadband UHF (470-952 MHz) antenna distribution amplifier that routes antenna signals from a pair of diversity antennas to several receivers in a multichannel system. Four amplified outputs compensate for signal strength lost in the splitting process. Two or more units may be cascaded together to accommodate setups with larger channel counts.
DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. For active antennas and in-line amplifiers, DISTRO4 provides an internal switch to apply 12V DC power over coaxial cable to antenna connections. It includes all RF and DC power cables needed to connect a 4-channel wireless microphone system, as well as cascade to one additional DISTRO4.
Audio-Technica DISTRO4 Features

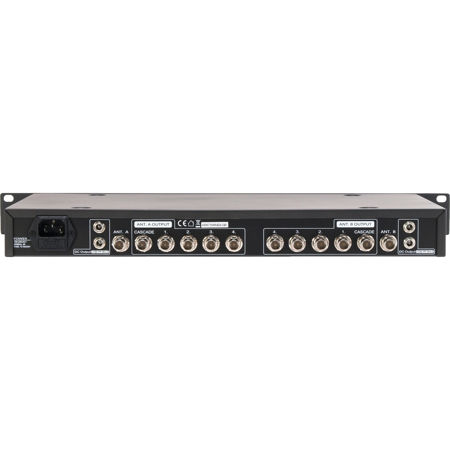

- Four amplified outputs compensate for signal strength lost in the splitting process
- Cascade output allows two or more units to be connected together to accommodate more than four receivers
- Internal switch for applying 12V DC power to antenna connections
- DC output jacks supply power to connected receivers
- Internal 2000 mA internal power supply (no wall wart)
- Includes one AC cable, four DC cables, and 10 BNC jumpers
- Full rack width (1 RU)
