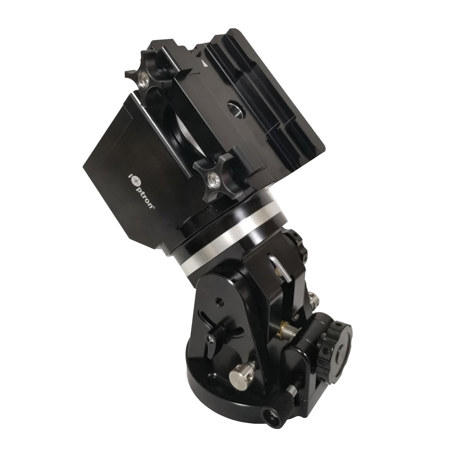

iOptron HAE43C Dual Altazimuth/Equatorial Strain Wave Gear Mount

SKU: ATHE432C MFR: HE432C
Earn VIP Reward Points

Key Features

  • Enjoy rock-solid stability with this CNC machined, all-metal iOptron telescope mount.
  • Carry up to 44 lbs (20kg) payload without counterweight using this strain wave gear mount.
  • This portable telescope mount weighs only 12.8 lbs (5.8kg), making transport a breeze.
  • Achieve precise tracking with the automatic tracking feature of this equatorial mount.
  • Easily control your telescope with the optional Go2Nova hand controller for quick setup.
  • Use the autoguide port for long-exposure astrophotography with this stable telescope mount.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$299.00

2 Year

$549.00

3 Year

$799.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

iOptron HAE43C Specifications

  • Material

    All metal, CNC machined

  • Exterior finish

    Anodized black

  • Mount

    Strain Wave Altazimuth/Equatorial Mount

  • RA gear system

    Strain Wave Gear

  • DEC gear system

    Strain Wave Gear

  • Reduction ratio

    RA 640:1, DEC 480:1

  • Payload w/o CW

    44 lbs (20kg)

  • Payload with CW

    55 lbs (25kg)

  • Period

    270 second

  • Drive motor

    Stepper motor

  • High precision encoder

    No

  • Polar Scope

    Optional iPolar electronic polar scope (external)

  • Level indicator

    Level bubble

  • Control system

    GOTONOVA/Commander

  • Handset

    Optional 8411 OLED Go2Nova

  • Tracking

    Automatic

  • Maximum slew speed

    6 Degree /sec

  • Power consumption

    0.7A (Tracking), 1.2A (GOTO)

  • Power

    DC12V-5A (5.5/2.5mm DC plug)

  • AC adapter

    100V - 240V (included, indoor use only)

  • Power off brake

    Electronic friction brake

  • Communication port

    USB-C

  • Autoguide port

    Yes (ST-4 compatible)

  • Firmware upgrade

    Yes

  • Dovetail saddle

    Vixen & Losmandy

  • Tripod

    Optional

  • Counterweight Shaft

    SS Diameter 20x200mm, 3/8"-16 thread (Optional)

  • Counterweight

    10 lbs (4.5kg) (Optional)

  • Operation temperature

    -4 Degree F - 104 Degree F (-20 Degree C - 40 Degree C)
    Hand Controller: 14 Degree F - 104 Degree F (-10 Degree C - 40 Degree C)

  • Weight

    12.8 lbs (5.8kg) with dovetail saddle

About iOptron HAE43C

You are about to experience a revolutionary advancement in astronomy with the iOptron HAE43C Dual Altazimuth/Equatorial Strain Wave Gear Mount. As the latest addition to iOptron's esteemed strain wave gear mount family, the HAE43C is designed to redefine your stargazing adventures. This lightweight and compact mount head weighs less than 13 lbs yet boasts an impressive payload capacity of 44 lbs, eliminating the need for cumbersome counterweights or shafts.

Crafted with precision, the HAE43C utilizes cutting-edge strain wave gear technology for both Right Ascension (RA) and Declination (DEC) movements, ensuring exceptional weight-to-payload efficiency. Its sleek black anodized, all-metal CNC machined body not only enhances its aesthetic appeal but also provides a robust and durable platform that promises years of high-level performance.

One of the standout features of the HAE43C is its electronic friction brake, which ensures safe operation by halting movement during any planned or unplanned power interruptions. This model also boasts an internal main board, eliminating the need for a separate handset. You can effortlessly control the HAE43C mount via a computer using the USB-C port located on the mount base. It supports ASCOM/Commander for Windows PCs and third-party INDI drivers for Mac OS software, offering versatile connectivity options. Additionally, for those who prefer traditional control, the optional 8411 handset provides full GoTo functionality.

The iOptron HAE43C is more than just a mount; it's a gateway to an unparalleled astronomical experience, combining innovative technology with user-friendly operation to meet the demands of both amateur and professional astronomers.

iOptron HAE43C Features

  • Advanced strain wave gear system technology
  • Payload capacity of 44 lbs (20kg) with the mount weight of 12.8 lbs (5.8kg, include dovetail saddle)
  • CNC machined
  • Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
  • 270 second gear period
  • Programable PEC
  • Optional 8411 OLED Go2Nova handset with -212,000 object database
  • Optional iPolar electronic polar scope for easy and accurate polar alignment
  • Dual saddle (Vixen and Losmandy-D styles)
  • Built in zero position search and locator
  • Integrated ST-4 autoguiding port
  • USB port for firmware upgrade and computer control
  • Aluminum carrying case

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Enjoy rock-solid stability with this CNC machined, all-metal iOptron telescope mount.
  • Carry up to 44 lbs (20kg) payload without counterweight using this strain wave gear mount.
  • This portable telescope mount weighs only 12.8 lbs (5.8kg), making transport a breeze.
  • Achieve precise tracking with the automatic tracking feature of this equatorial mount.
  • Easily control your telescope with the optional Go2Nova hand controller for quick setup.
  • Use the autoguide port for long-exposure astrophotography with this stable telescope mount.

What's in the box:

  • iOptron HAE43C Dual Altazimuth/Equatorial Strain Wave Gear Mount
  • AC Adapter
  • Carrying Case
  • (Tripod Not Included)
  • iOptron 2 Year Limited Warranty
