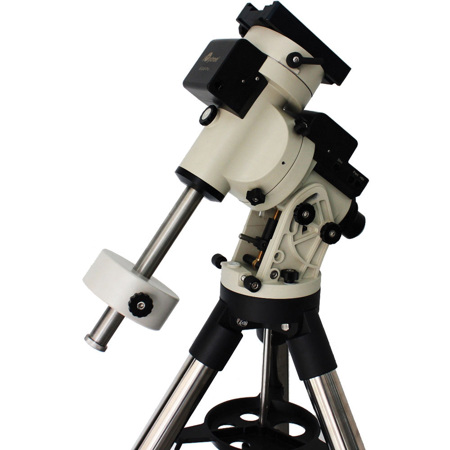

iOptron iEQ45 Pro GoTo Equatorial Mount with Tripod
See all iOptron items

iOptron iEQ45 Pro GoTo Equatorial Mount with Tripod, 45lbs Capacity, Built-In 32-Channel GPS Unit

SKU: ATI8000E
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2016-04-10T08:43:33

Rated 5 out of 5

I have had this mount for about three months now and really enjoy using it

I have had this mount for about three months now and really enjoy using it. Intuitive software, builtin GPS, sturdy, 2" stainless tripod make for a very good medium capacity eq mount. The weight to capacity ratio is excellent making this a lightweight system for mobile use. If one needs attention from Ioptron staff (have not for mount issues, just general inquiry) the service is great, quick, thoughtful response, even weekends.

RANDALL P.

iOptron iEQ45 Pro Specifications

  • Mount type

    EQ

  • Maximum payload (EQ)

    45lbs / 20.41kg

  • Latitude adjustment range

    5-70 deg.

  • Azimuth adjustment range

    +/-6 deg.

  • RA Worm period

    337 S

  • Right Ascension worm wheel

    256 teeth, M=0.5, aluminum

  • Declination worm wheel

    228 teeth, M=0.5, aluminum

  • RA and DEC worm

    Dia. 17mm / 0.67"
    brass

  • RA bearing

    Dia. 80mm / 3.15"

  • DEC bearing

    Dia. 68mm / 2.68"

  • Right Ascension axis shaft

    Dia. 50mm / 1.97"
    Steel

  • Declination axis shaft

    Dia. 40mm / 1.57"
    Steel

  • Gear meshing

    Zero backlash

  • CW shaft

    Stainless Steel
    Dia. 28mm / 1.10"

  • CW

    2x 5kg / 11.02lbs

  • Mount base diameter

    Dia. 150mm / 5.91"

  • Dovetail saddle

    6" Dual Vixen/Losmandy

  • Level indicator

    Precision bubble

  • Polar Scope

    AccuAlign G2 polar scope, dark field illumination

  • Tripod

    Stainless Steel Tripod: 2" / 5.08cm

  • Drive motor

    1.8 deg. stepper motor, 128 microsteps

  • Resolution

    0.09 arcsec

  • Transmission

    Synchronous belt

  • Motor control

    Open loop

  • PEC

    Permanent PEC

  • Hand controller

    Go2Nova 8407+, 359, 000 objects database, star recognition

  • HC display

    8 line, 21 character LCD, heated

  • Slew speed

    9 speeds, 5.83 deg. /sec max (1400X)

  • Tracking rate

    Sidereal/Solar/Lunar/King/User

  • Meridian treatment

    Stop (0-15 deg. pass) and auto flip

  • GPS

    Build-in 32 Channel GPS

  • Communication port

    RS232

  • Guiding port

    ST-4

  • Power interruption recover

    Yes

  • Power requirement

    DC 12V (11-15V) 2A

  • Power consumption

    0.45A(Tracking)
    0.75A(GOTO)

  • Computer control

    Yes (ASCOM)

  • Operation temperature

    -20 to 45 deg. C / -4 to 113 deg. F

  • Weight

    Mount (Exclude CW): 25lbs / 11.34kg

About iOptron iEQ45 Pro

FEATURED REVIEWS

I have had this mount for about three months now and really enjoy using it

By RANDALL P.

I have had this mount for about three months now and really enjoy using it. Intuitive software, builtin GPS, sturdy, 2" stainless tripod make for a very good medium capacity eq mount. The weight to capacity ratio is excellent making this a lightweight system for mobile use. If one needs attention from Ioptron staff (have not for mount issues, just general inquiry) the service is great, quick, thoughtful response, even weekends.

The iOptron iEQ45 Pro GoTo Equatorial Mount with Tripod is the next generation premium astro-imaging mount. Its features include Stepper motor (instead of servo), Higher gear ratio and a number of visual changes (ex. plugs moved to sides, motor covers are singular piece and more). It offers the next generation GoTo technology not to mention built-in 32-bit GPS. With a payload of 45 lbs. balanced - it comes standard with a calibrated dark field illumination polar scope and a sturdy 2" stainless steel tripod. It also fits both Vixen and Losmandy-type mounting plates. Its lighter weight (only 25lbs) makes it much easier to carry.

iOptron iEQ45 Pro Features

  • Specialized astrophotography mount ideal for entry-level and intermediate astrophotographers
  • RS232 port for mount firmware upgrade and ASCOM control
  • Portable, compact and sturdy German equatorial mount with the highest Payload/Mount ratio (1.7) in the category
  • ST-4 autoguiding port capable of reverse guiding with auto-protection
  • Permanent periodic error correction (PEC)
  • Ultra-accurate tracking with temperature compensated crystal oscillator (TCXO)
  • Gap-free structure for both R.A. and declination worms
  • Built-in 32-channel GPS
  • Hand controller with Advanced GOTONOVA GoTo Technology and heating mechanism
  • Spring loaded dual size dovetail saddle for both Vixen and Losmandy-type mounting plates
  • Die cast metal tripod spreader with accessory tray
  • AccuAligning polar scope with dark-field illumination and Quick Polar Alignment procedure, allowing for fast and accurate polar alignment

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Specialized astrophotography mount ideal for entry-level & intermediate astrophotographers
  • RS232 port for mount firmware upgrade & ASCOM control
  • Portable, compact & sturdy German equatorial mount
  • ST-4 autoguiding port capable of reverse guiding
  • Permanent periodic error correction (PEC)
  • Ultra-accurate tracking

What's in the box:

  • iOptron iEQ45 Pro GoTo Equatorial Mount with Tripod
  • Go2Nova 8407+ Hand Controller
  • Losmandy/Vixen Dual Saddle
  • LED with cable for Polar Scope
  • 2x Controller Cables
  • RS232 to RJ9 Cable
  • 12V Car Re-Charger with 25' Cable
  • AC Adapter (1.25A)
  • 2x 11lbs Counterweight
  • Counterweight Shaft
  • iOptron 2 Year Limited Warranty
