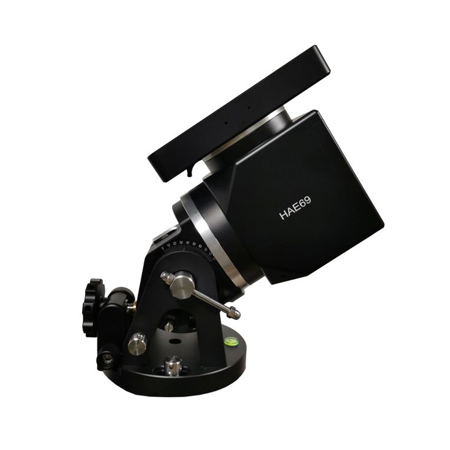

iOptron HAE69 Dual Altazimuth/Equatorial Strain Wave Gear Mount

SKU: ATIHE692 MFR: HE692
Earn VIP Reward Points

Key Features

  • Enjoy rock-solid stability with this iOptron mount, perfect for serious astronomy sessions.
  • Experience smooth, accurate tracking with the strain wave gear system; capture stunning images.
  • Carry up to 69 lbs (31kg) of equipment without counterweight, thanks to robust payload capacity.
  • Achieve precise alignment quickly using the optional iPolar electronic polar scope feature.
  • Easily control your telescope via Go2Nova hand controller with 212,000+ celestial objects.
  • Benefit from vibration dampening and all-metal CNC machined build for clear observations.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$389.00

2 Year

$699.00

3 Year

$1,099.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

iOptron HAE69 Specifications

  • Exterior finish

    Anodized black

  • Structure Material

    All metal, CNC machined

  • Mount

    Strain Wave Altazimuth/Equatorial Mount

  • RA gear system

    Strain Wave Gear

  • DEC gear system

    Strain Wave Gear

  • Reduction ratio

    RA 800:1, DEC 800:1

  • Payload w/o CW

    69 lbs (31kg)

  • Payload/Mount weight

    3.6

  • Payload with CW

    79 lbs (36kg)

  • Period

    270 second

  • PE (by encoder)

    < +/- 15 arcsec

  • Azimuth adjustment range

    0 Degree - 90 Degree

  • Latitude adjustment range

    +/- 8 Degree

  • Drive motor

    Stepper motor

  • Polar Scope

    iPolar electronic polar scope (Optional)

  • Level indicator

    Level bubble

  • Control system

    GOTONOVA/Commander

  • Hand Controller

    Go2Nova 8409 with -212,000 objects database

  • Tracking

    Automatic

  • Maximum slew speed

    4.5 Degree /sec

  • Power consumption

    0.6A(Tracking), 1.6A(GOTO)

  • Power

    DC12V-5A (5.5/2.5mm DC plug)

  • AC adapter

    100V - 240V (included, indoor use only)

  • Cable management

    Ready for DIY

  • Power off brake

    Electronic friction brake

  • Power-down memory

    Yes

  • Wi-Fi

    Built-in

  • Communication port

    Yes (Wi-Fi and USB, via HC)

  • Autoguide port

    Yes (ST-4 compatible)

  • Firmware upgrade

    Yes

  • Dovetail saddle

    Vixen/Losmandy dual saddle

  • Mounting base diameter

    152mm

  • Tripod

    Optional

  • Counterweight Shaft

    SS Dia. 20 x 200mm, 3/8"-16 thread (Optional)

  • Counterweight

    10 lbs (4.5kg)(Optional)

  • Operation temperature

    -4 Degree F - 104 Degree F (-20 Degree C - 40 Degree C)
    Hand Controller: 14 Degree F - 104 Degree F (-10 Degree C - 40 Degree C)

  • Weight

    19 lbs (8.6kg) with dovetail saddle

About iOptron HAE69

When precision meets innovation in the realm of astronomy, the iOptron HAE69 Dual Altazimuth/Equatorial Strain Wave Gear Mount emerges as a stellar example of advanced engineering for celestial enthusiasts. This robust and high-quality mount is a testament to iOptron's legacy of excellence in creating precision mounts for the astronomical community.

Crafted with a durable black anodized, all-metal CNC machined body, the HAE69 is not only visually striking but also provides a sturdy and reliable platform for your astronomical observations and imaging. Its compact and lightweight design, with a mount head of just 19 lbs, belies its impressive payload capacity of 69 lbs, eliminating the need for a cumbersome counterweight or shaft and ensuring a streamlined setup for users.

The HAE69 boasts state-of-the-art strain wave gear technology in both Right Ascension (RA) and Declination (DEC) movements, offering unparalleled weight-to-payload efficiency and smooth, precise tracking of celestial objects. This advanced technology ensures that your astronomical experience is both seamless and rewarding, whether you're an amateur astronomer or an astrophotographer.

Unique features such as an electronic friction brake and power-down memory set the HAE69 apart from its competitors. These features allow the mount to safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss, ensuring that there's no need to realign and start from scratch.

Control of the HAE69 is versatile and user-friendly, accommodating a range of devices and software. Whether you're using a Windows PC with ASCOM/Commander, a MacOS with third-party INDI drivers, a smartphone or tablet via iOptron Commander Lite or an app like SkySafari, or even a Raspberry Pi device via INDI driver, this mount is designed to integrate seamlessly with your preferred setup.

In summary, the iOptron HAE69 Dual Altazimuth/Equatorial Strain Wave Gear Mount is a perfect blend of durability, advanced technology, and user convenience, making it a superior choice for those seeking a high-quality mount for exploring the wonders of the night sky.

iOptron HAE69 Features

  • Advanced strain wave gear system technology
  • Payload capacity of 31kg (69 lbs) with the mount weight of 8.6kg (19 lbs, include dovetail saddle)
  • PE< +/- 15 arcsec
  • CNC machined
  • Unique friction brake to safely stop movement during a planned or unplanned power interruption
  • 270 second gear period
  • Go2Nova hand controller with 212,000 Approx. object database
  • Optional iPolar electronic polar scope for easy and accurate polar alignment
  • Cable pass-through ready for customer cable management
  • Dual saddle (Vixen and Losmandy-D styles)
  • Built in zero position search and locator
  • Power down position and location memory
  • Integrated ST-4 autoguiding port
  • Built-in Wi-Fi (via hand controller)
  • USB port for firmware upgrade and computer control
  • Aluminum carrying case

Key Features

  • Enjoy rock-solid stability with this iOptron mount, perfect for serious astronomy sessions.
  • Experience smooth, accurate tracking with the strain wave gear system; capture stunning images.
  • Carry up to 69 lbs (31kg) of equipment without counterweight, thanks to robust payload capacity.
  • Achieve precise alignment quickly using the optional iPolar electronic polar scope feature.
  • Easily control your telescope via Go2Nova hand controller with 212,000+ celestial objects.
  • Benefit from vibration dampening and all-metal CNC machined build for clear observations.

What's in the box:

  • iOptron HAE69 Dual Altazimuth/Equatorial Strain Wave Gear Mount
  • Go2Nova Hand Controller
  • Dovetail Saddle
  • AC Adapter
  • Carrying Case
  • iOptron 2 Year Limited Warranty
