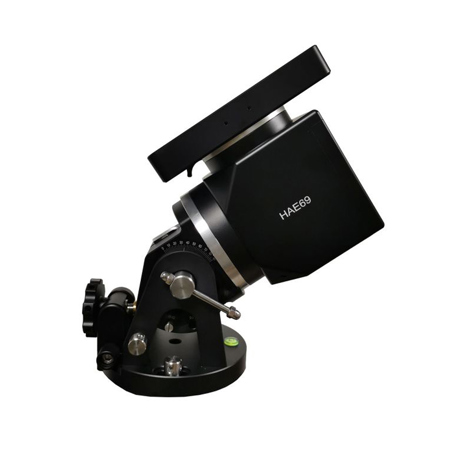

iOptron HAE69 Dual Altazimuth/Equatorial Strain Wave Gear Mount with iPolar Scope

SKU: ATIHE692A MFR: HE692A
Earn VIP Reward Points

Key Features

  • Experience rock-solid stability with this iOptron telescope mount, perfect for serious astronomy.
  • Enjoy effortless navigation with the Go2Nova hand controller, accessing a database of 212,000+ objects.
  • Achieve precise polar alignment using the integrated iPolar electronic polar scope for sharp images.
  • This portable telescope mount boasts a 69 lbs payload capacity without needing a counterweight.
  • Easily adjust your setup with the dual altazimuth/equatorial functionality for versatile viewing.
  • Built-in Wi-Fi and USB ports allow seamless communication and firmware upgrades for your telescope.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$409.00

2 Year

$699.00

3 Year

$1,099.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

iOptron HAE69 Specifications

  • Exterior finish

    Anodized black

  • Structure Material

    All metal, CNC machined

  • Mount

    Strain Wave Altazimuth/Equatorial Mount

  • RA gear system

    Strain Wave Gear

  • DEC gear system

    Strain Wave Gear

  • Reduction ratio

    RA 800:1, DEC 800:1

  • Payload w/o CW

    69 lbs (31kg)

  • Payload/Mount weight

    3.6

  • Payload with CW

    79 lbs (36kg)

  • Period

    270 second

  • PE (by encoder)

    < +/- 15 arcsec

  • Azimuth adjustment range

    0 Degree - 90 Degree

  • Latitude adjustment range

    +/- 8 Degree

  • Drive motor

    Stepper motor

  • Polar Scope

    iPolar electronic polar scope (external)

  • Level indicator

    Level bubble

  • Control system

    GOTONOVA/Commander

  • Hand Controller

    Go2Nova 8409 with -212,000 objects database

  • Tracking

    Automatic

  • Maximum slew speed

    4.5 Degree /sec

  • Power consumption

    0.6A(Tracking), 1.6A(GOTO)

  • Power

    DC12V-5A (5.5/2.5mm DC plug)

  • AC adapter

    100V - 240V (included, indoor use only)

  • Cable management

    Ready for DIY

  • Power off brake

    Electronic friction brake

  • Power-down memory

    Yes

  • Wi-Fi

    Built-in

  • Communication port

    Yes (Wi-Fi and USB, via HC)

  • Autoguide port

    Yes (ST-4 compatible)

  • Firmware upgrade

    Yes

  • Dovetail saddle

    Vixen/Losmandy dual saddle

  • Mounting base diameter

    152mm

  • Tripod

    Optional

  • Counterweight Shaft

    SS Dia. 20 x 200mm, 3/8"-16 thread (Optional)

  • Counterweight

    10 lbs (4.5kg)(Optional)

  • Operation temperature

    -4 Degree F - 104 Degree F (-20 Degree C - 40 Degree C)
    Hand Controller: 14 Degree F - 104 Degree F (-10 Degree C - 40 Degree C)

  • Weight

    19 lbs (8.6kg) with dovetail saddle

About iOptron HAE69

Introducing the new iOptron strain wave gear (SWG) mount family members - HAE69 AZ/EQ dual SWG mount! These light weight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 19 lbs with a payload capability 69 lbs, without needing a cumbersome counterweight or shaft. Applying iOptron's multi-decade experience creating precision mounts, the HAE69 makes this vision possible.

Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE69s deliver unparalleled weight to payload efficiency. Its black anodized, all metal CNC machined body not only is appealing to the eye but also is a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power-down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

An HAE69 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

iOptron HAE69 Features

  • Advanced strain wave gear system technology
  • Payload capacity of 31kg (69 lbs) with the mount weight of 8.6kg (19 lbs, include dovetail saddle)
  • PE< +/- 15 arcsec
  • CNC machined
  • Unique friction brake to safely stop movement during a planned or unplanned power interruption
  • 270 second gear period
  • Go2Nova hand controller with 212,000 Approx. object database
  • iPolar electronic polar scope for easy and accurate polar alignment
  • Cable pass-through ready for customer cable management
  • Dual saddle (Vixen and Losmandy-D styles)
  • Built in zero position search and locator
  • Power down position and location memory
  • Integrated ST-4 autoguiding port
  • Built-in Wi-Fi (via hand controller)
  • USB port for firmware upgrade and computer control
  • Aluminum carrying case

Key Features

  • Experience rock-solid stability with this iOptron telescope mount, perfect for serious astronomy.
  • Enjoy effortless navigation with the Go2Nova hand controller, accessing a database of 212,000+ objects.
  • Achieve precise polar alignment using the integrated iPolar electronic polar scope for sharp images.
  • This portable telescope mount boasts a 69 lbs payload capacity without needing a counterweight.
  • Easily adjust your setup with the dual altazimuth/equatorial functionality for versatile viewing.
  • Built-in Wi-Fi and USB ports allow seamless communication and firmware upgrades for your telescope.

What's in the box:

  • iOptron HAE69 Dual Altazimuth/Equatorial Strain Wave Gear Mount
  • Go2Nova Hand Controller
  • iPolar Electronic Polar Scope
  • Dovetail Saddle
  • AC Adapter
  • Carrying Case
  • iOptron 2 Year Limited Warranty
