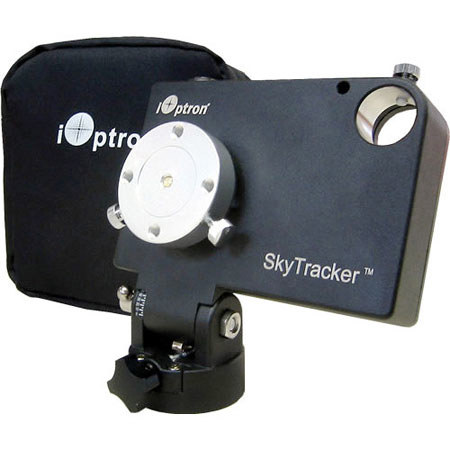

iOptron SkyTracker Camera Mount, 6.6 lbs Load Capacity

iOptron SkyTracker Camera Mount, 6.6 lbs Load Capacity

SKU: ATIOSTCMBK
(5)

This item is no longer available.

Overview
Compare
Accessories
Learn
Specs
Protection

Reviews about this item

Review Summary

2014-06-17T21:00:00

Rated 4 out of 5

great device for widefield Astrophotos

I bought the Ioptron star tracker from Adorama. It was packed perfect & no part was missing.I mounted it on a regular tripod on my balcony & started to photograph the poluted sky from my balcony that does't show polaris. I admit that I do have some experience from the past finding north & so I started the experiment. At the begining I had some stars trails but slowly slowly I found the right position to the north & thats what I got with my Canon 200 mm lens.

Yossi H.

2013-09-23T21:00:00

Rated 2 out of 5

Needs That Special Something.... I just received my package and what a downer!

Needs That Special Something.... I just received my package and what a downer! I have to admit I was a little taken back that there was no polar scope included. When I did a search in Google this product came up in the search. I clicked it opened this link : http://www.adorama.com/ATIOSTCMBK.html and I purchased the product. I was not aware until just this moment that I was not getting everything I needed. I just went back online and must say I'm surprised this option is available. Even now when I look at the accessories there is no mention that the Polar Scope if not included. Please add this to make others aware. I'll be in contact tomorrow to find out what we can do to rectify this situation

STEPHEN H.

iOptron SkyTracker Camera Mount, 6.6 lbs Load Capacity Specifications

  • Mount Type

    Ultra Compact EQ

  • Payload Capacity (MAX)

    3 kg (6.6 lbs)

  • Wheel

    80mm, 156 teeth Aluminum Alloy

  • Worm gear

    11 mm, brass

  • Bearing

    4 pieces

  • Drive

    DC servo motor

  • Tracking

    R.A. auto

  • Tracking Speed

    Cel, 1/2Cel, N/S

  • Latitude Adjust Range

    0 - 70 degree

  • Polar Sight Hole

    -8.5 deg FOV

  • Polar Scope

    Optional (6 degree FOV with dark field illuminated)

  • Power Consumption

    DC 4.8 - 6V, 0.06A at Max. load

  • Power Requirement

    4 AA batteries (not included)
    External: DC 9 - 12V (optional)

  • Duration of operation

    24 hours at 20C

  • Operating temperature

    -10-40C

  • Base Connect

    3/8"

  • Dimensions

    153x104x58 mm / 6.02x4.09x2.28"

  • Weight

    1.1 kg / 2.42 lbs with out battery

Related Articles & Videos

1 Accessories for iOptron SkyTracker Camera Mount, 6.6 lbs Load Capacity

  • All Accessories (1)
  • Batteries & Power Supply (1)
iOptron 12V Car Recharger with Cigarette Type Power Lead
iOptron 12V Car Recharger with Cigarette Type Power Lead
$20.00
Recommended

About iOptron SkyTracker Camera Mount, 6.6 lbs Load Capacity

The iOptron SkyTracker Camera Mount (6.6 lbs Load Capacity) is a motorized astrophotography tool used to capture crisp long-exposure photographs of the night sky. The built-in compass and polar sighting hole, or the optional AccuAligning polar scope, will help an operator align the camera mount parallel to the Earth's axis. Correct alignment with Earth's axis of rotation is essential for capturing sharp, trail-free images of celestial bodies.

For quicker and easier alignment, the operator can use iOptron's Polar Scope iPhone/iPad app to pinpoint their polar reference star (Polaris north of the equator, Sigma Octantis south of the equator). After aligning the camera mount with correct azimuth and latitude positions, the SkyTracker is ready to follow the same path of stars. Within minutes, the observer will be ready to capture astrophotographs of deep sky objects.

iOptron SkyTracker Camera Mount, 6.6 lbs Load Capacity Features

  • Attaches to any standard camera tripod
  • Accepts cameras weighing up to 6.6 lbs (3 kg)
  • Auto-tracking for smooth camera motion perfect for long-term exposures
  • Cast aluminum body with plastic spray finish
  • Built in compass and geared latitude adjustment for easy polar alignment
  • Up to 24 hours of operation on 4AA batteries
  • Optional AccuAligning dark-field illuminated polar scope available separately

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • iOptron SkyTracker Camera Mount
  • Padded Carrying Case
  • iOptron 1 Year Limited Warranty
