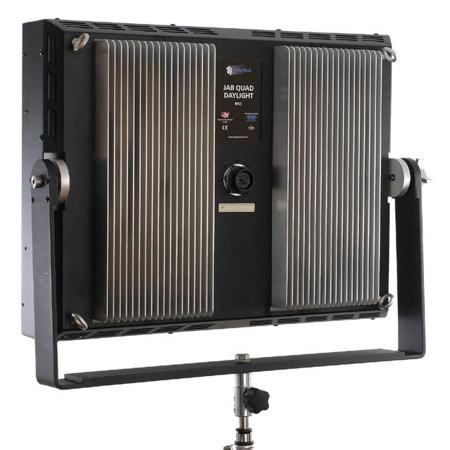

AAdynTech Quad Series JAB Quad Daylight LED Light Fixture, 5600k with 500 FC at 10'

SKU: ATJABQDAY MFR: JAB-Q-DAY
Earn VIP Reward Points

Key Features

  • Achieve stunning clarity with this 5600K Daylight LED light, perfect for on-location shoots.
  • Enjoy superior color accuracy (CRI 92+) from this LED panel, ensuring true-to-life results.
  • This durable IP65 rated LED lighting is weather-resistant, ideal for outdoor photography.
  • The AAdynTech LED light fixture offers brightness control, tailoring light to your scene.
  • This power-efficient LED panel provides even light, reducing shadows in photos & videos.
  • Set up easily with the included yoke & pin; this LED light panel is ready for any studio.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AAdynTech JAB Quad Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Fixture Type

    Light Panel

  • Photometrics

    Photometrics:
    No Diffuser:
    At 10': 5,381 Lux; 500 FC
    At 15': 2,518 Lux; 234 FC
    At 20': 1,657 Lux; 154 FC

    30 Degree Diffuser:
    At 10': 5,037 Lux; 468 FC
    At 15': 2,335 Lux; 217 FC
    At 20': 1,367 Lux; 127 FC

    55 Degree Diffuser:
    At 10': 4,197 Lux; 390 FC
    At 15': 1,937 Lux; 180 FC
    At 20': 1,140 Lux; 106 FC

    80 Degree Diffuser:
    At 10': 3,831 Lux; 356 FC
    At 15': 1,776 Lux; 165 FC
    At 20': 1,076 Lux; 100 FC

  • Color Accuracy Standard

    CRI 92+

  • Color Temperature

    Daylight

  • Cooling System

    Passive

  • Water Resistance/IP Rating

    IP65

Battery

Jump to...
  • Battery Connection

    No Connection Included

  • Power Source

    AC

  • AC Input Power

    100-277 VAC, 50/60 Hz

Mounting

Jump to...
  • Fixture Mount

    Yoke with Junior Pin

Physical Details

Jump to...
  • Panel Size

    13" x 21"

  • Dimensions

    Fixture: 24.3 x 5.94 x 18.68" (61 x 15 x 47cm)
    Control Box: 15.39 x 7.42 x 12.4" (39 x 18.84 x 31.49cm)

  • Weight

    Fixture: 55 lbs (24.95kg)
    Control Box: 25 lbs (11.33kg)

About AAdynTech JAB Quad

AAdynTech's JAB Quad is the most powerful LED soft light in it's class, consuming only 1,300 watts of power and outputting an amazing 120,000 lumens. The fixture, control box and connecting cable are rated IP65; weatherproof under any condition.

With a CRI of over 92, the JAB Quad creates a beautiful, even field of light in Daylight, Tungsten, or a Variable version that adjusts anywhere from 2900 Kelvin to 5700 Kelvin. Additionally, it has the capability of adding green or magenta to match any other white light fixture.

There are various ways to control the Quad; AAdynTech's User Interface Module, Wired DMX or Wireless DMX, making it very flexible for any kind of production.

Like all AAdynTech products, the Quad is designed and manufactured in the United States by Sturdy Corporation, guaranteeing quality and dependable service.

High Speed Test
  • Outputs an amazing 120,000 lumens
  • Minus/Plus Green/Red Correction
  • 92+ CRI across entire brightness range
  • Rated IP65
  • 500 foot candle output @ 10'
  • Color Range 5600k
  • Auto range voltage-100/277, VAC-50/60Hz
  • Low Power Consumption, Less than 15a @ 120Vac
  • Flicker-free up to 12,000 fps
  • Compatibble with existing User Interface Modules (UIM)
  • Wireless or wired DMX with RDM
  • Daisy chain DMX
  • Certified ETL, CSA, CE and RoHS compliant
  • Operating temperature -20 Degree C to +50 Degree C
  • Dimmable with no color shift
  • No harmful UV or IR radiation

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Achieve stunning clarity with this 5600K Daylight LED light, perfect for on-location shoots.
  • Enjoy superior color accuracy (CRI 92+) from this LED panel, ensuring true-to-life results.
  • This durable IP65 rated LED lighting is weather-resistant, ideal for outdoor photography.
  • The AAdynTech LED light fixture offers brightness control, tailoring light to your scene.
  • This power-efficient LED panel provides even light, reducing shadows in photos & videos.
  • Set up easily with the included yoke & pin; this LED light panel is ready for any studio.

What's in the box:

  • AAdynTech JAB Quad Daylight LED Light Fixture
  • Medium Diffusion Lens
  • IP65 Control Box
  • IP65 20' Control Cable
  • Power Cable
  • User Interface Controller
  • City Theatrical Wireless Receiver Chip and Antenna
  • Yoke
  • Pin
  • AAdynTech 2 Year Limited Warranty
