Audio-Technica AT-LPA2 Fully Manual Belt-Drive Turntable

SKU: ATLPA2 MFR: AT-LPA2
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with the Audio-Technica belt-drive turntable.
  • Enjoy precise audio fidelity with the included MC stereo cartridge (AT-OC9XEN).
  • Achieve optimal playback with adjustable anti-skate and tonearm height features.
  • The static balanced straight carbon tonearm ensures accurate vinyl tracking.
  • Customize your setup with adjustable headshell overhang for perfect alignment.
  • Listen to your favorite records at 33-1/3 or 45 RPM on the acrylic platter.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Audio-Technica AT-LPA2 Specifications

Turntable

Turntable

Jump to...
  • Motor

    DC servo

  • Driving method

    Belt drive

  • Speeds

    33-1/3 PRM or 45 PRM

  • Turntable platter

    0.78" (20mm) thick, acrylic platter

  • Wow and flutter

    <0.12% WRM (33 RPM)

  • Signal-to-noise ratio

    > 60 dB

Tonearm

Jump to...
  • Type

    Static balanced straight carbon tonearm

  • Effective length

    8.80" (223.6mm)

  • Overhang

    0.73" (18.6mm)

  • Maximum tracking error angle

    Less than 2.0 Degree

  • Stylus pressure adjustment range

    0 to 0.10 oz (0 to 3.0g)

  • Applicable cartridge weight range

    Excluding headshell:
    When counterweight (light) is used: 0.21 to 0.32 oz (6.1 to 9.2g)
    When counterweight (heavy) is used: 0.32 to 0.49 oz (9.2 to 13.9g)

  • Tonearm height adjustment range

    -1.5 to +7mm (with included cartridge)

  • Anti-skate mechanism

    Thread-suspended type

  • Anti-skate adjustment range

    Equivalent to 0.04 to 0.10 oz (1.3 to 3.0g) stylus pressure

Cartridge and headshell

Jump to...
  • Cartridge type

    MC

  • Recommended load resistance

    >= 100 ohms (when head amplifier connected)

  • Frequency response

    20 to 30,000 Hz

  • Output voltage

    0.35 mV (1 kHz, 5 cm/sec.)

  • Stylus

    0.3 x 0.7 mil elliptical nude stylus

  • Cantilever

    Aluminum pipe

  • Tracking force range

    0.06 to 0.07 oz (1.8 to 2.2g)
    standard: 0.07 oz (2.0g)

  • Headshell overhang adjustment range

    -2.5 to +2.5mm (when using AT-OC9XEN)

  • Weight

    Cartridge: Approx. 0.27 oz (7.6g)

    Headshell:
    Approx. 0.39 oz (11.0g) (including lead wires)
    Approx. 0.36 oz (10.2g) (excluding lead wires)

General

Jump to...
  • Power supply

    100 to 240 V, 50/60 Hz

  • Power consumption

    6W

  • Dimensions (W x D x H)

    Turntable body: 17 x 13 x 5.3" (420 x 340 x 135mm)
    Control unit: 5.2 x 9 x 2" (133 x 228 x 50mm)

  • Weight

    Turntable body: Approx. 19 lbs (8.4kg)
    Control unit: Approx. 2.4 lbs (1.1kg)

About Audio-Technica AT-LPA2

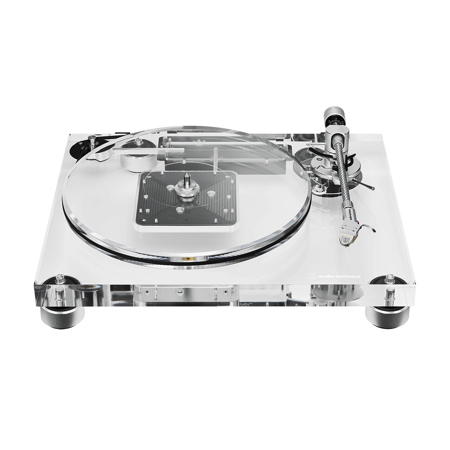

The AT-LPA2 fully manual belt-drive turntable is a masterpiece of modern engineering, featuring a high-density, transparent acrylic chassis and platter to provide exceptional stability and vibration damping for pure, uncolored sound. Not only is the acrylic stunning, it is also an ideal material for turntable construction: with a resonant frequency similar to that of vinyl records, the acrylic reduces reverberations that might otherwise affect sound clarity. Plus, the mass of the acrylic platter allows it to spin at a consistent speed.

To further reduce unwanted noise, we-ve moved the controls and power supply into a separate unit - a feature typically found only on more expensive turntables - thereby isolating the turntable-s sensitive audio components from electrical interference associated with powering and operating the turntable-s motor. An optical sensor, positioned under the spindle, monitors platter rotation to maintain an accurate speed of 33-1/3 or 45 RPM.

The AT-LPA2 comes with an AT-OC9XEN moving coil cartridge, which features a nude elliptical stylus (0.3 x 0.7 mil) and high-purity PCOCC coils, enabling it to capture every nuance of your records with stunning clarity. The lower mass of the moving coil structure (compared to moving magnet cartridges) allows the stylus to react more quickly to changes in the record groove, resulting in more detailed audio reproduction.

The cartridge comes mounted to an exclusive machined-aluminum headshell that attaches to the straight, carbon-fiber tonearm we engineered specifically for this turntable. The lightweight, anti-resonant tonearm tracks smoothly and precisely, utilizing a highly accurate, finely adjustable string-type anti-skate mechanism to counteract any inward pull and maintain proper channel balance. In addition, the tonearm includes two counterweight options (110 g and 130 g) to allow you to use a wide variety of other cartridges, should you so choose.

With its clean, modern look, advanced components, and precision engineering, the AT-LPA2 is your entry into the world of pure analog audio.

Audio-Technica AT-LPA2 Features

  • Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
  • Phono-level output provides pure, direct transmission of the cartridge's signal
  • AT-OC9XEN MC cartridge with 0.3 x 0.7 mil elliptical nude stylus provides detailed sound reproduction with excellent channel separation and low distortion
  • Exclusive machined aluminum headshell
  • 30mm-thick transparent chassis is made from low-resonance, high-density clear acrylic
  • 20mm-thick, high-density transparent acrylic platter is calibrated to spin at a consistent speed
  • Separate control unit / power supply isolates the turntable from unwanted electrical noise
  • Optical sensor, positioned under the spindle, monitors platter rotation to maintain accurate speed
  • Newly designed, carbon-fiber tonearm is precision-engineered for superior tracking and stability
  • Highly accurate and finely adjustable weighted anti-skate mechanism (string-type)
  • Includes both a 110g and 130g counterweight to accommodate most cartridge configurations
  • Exclusively designed heavy-duty, height-adjustable feet isolate the turntable from vibration

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior sound quality with the Audio-Technica belt-drive turntable.
  • Enjoy precise audio fidelity with the included MC stereo cartridge (AT-OC9XEN).
  • Achieve optimal playback with adjustable anti-skate and tonearm height features.
  • The static balanced straight carbon tonearm ensures accurate vinyl tracking.
  • Customize your setup with adjustable headshell overhang for perfect alignment.
  • Listen to your favorite records at 33-1/3 or 45 RPM on the acrylic platter.

What's in the box:

  • Turntable Body
  • Dust Cover
  • Control Unit
  • Platter
  • Drive Belt
  • Dust Cover Hinges
  • Headshell with MC Stereo Cartridge (AT-OC9XEN)
  • 45 RPM Adapter
  • Counterweight (Light)
  • Counterweight (Heavy)
  • Hexagonal Wrench
  • Weight for Anti-Skate
  • Auxiliary Weight for Anti-Skate
  • Gloves
  • 5.9' Power Cable
  • 3.3' Control Cable
  • 3.6' RCA Audio Cable
  • 3.6' Earth Cable
  • Audio-Technica 1 Year Limited Warranty
