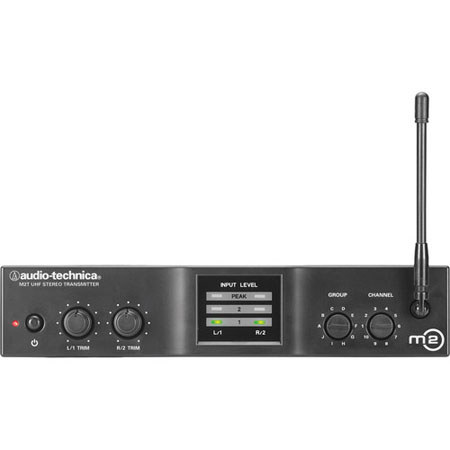

Audio-Technica M2TL Stereo Transmitter, Band L: 575.000 - 608.000 MHz

SKU: ATM2TL

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Audio-Technica M2TL Specifications

  • Operating Frequencies

    Band L: 575.000 to 608.000 MHz, 100 frequencies

  • Transmitter: RF Power Output

    10 mW/50 mW (switchable), 50 ohms
    Limited to 10 mW within 863 MHz to 865 MHz

  • Transmitter: Spurious Emissions

    Following federal and national regulations

  • Transmitter: Input Connections

    XLRF-type/6.3 mm stereo (1/4") combination connector
    Pin 1 and Sleeve: Ground
    Pin 2 and Tip: Hot
    Pin 3 and Ring: Cold

  • Transmitter: Maximum Input Level

    XLRF-type/6.3 mm stereo, (1/4") balanced: +26 dBu
    6.3 mm (1/4") mono, unbalanced: +26 dBu

  • Transmitter: Loop Output Connector

    XLRM-type connector
    Pin 1: Ground
    Pin 2: Hot
    Pin 3: Cold

  • Transmitter: Power Requirements

    12-18V DC, 600 mA

  • Transmitter: Antenna

    Attached whip

  • Dimensions (WxDxH)

    Transmitter: 210.0x132.0x44.0mm / 8.26x5.19x1.73"

  • Weight

    Transmitter: 870g / 30.68oz (without accessories)

About Audio-Technica M2TL

The Audio-Technica M2TL Stereo Transmitter provides a choice of 100 selectable frequencies and is equipped with two XLR 1/4" combo input connectors into which users can connect line-level inputs. While up to 10 complete M2 systems may be used on stage simultaneously, any number of M2R stereo receivers may be used on the same frequency with a single M2T stereo transmitter. This rugged system is built to stand up to the inevitable bumps of life on the road, delivering clear, natural sound for touring and installed-sound uses.

Audio-Technica M2TL Features

  • High-fidelity sound with clean, articulate mix allows you to hear yourself better at lower volume
  • 100 selectable UHF channels
  • Up to 10 simultaneous systems per frequency band
  • 3.5 mm line-in jack connects to ambient microphone, click track & more
  • LED indicators provide easy-to-read level monitoring
  • XLR loop output (true pass-through) connects signal to mixing console, additional IEM system or recording device with no signal degradation
  • Adjustable squelch eliminates annoying static
  • Pilot tone protects against RF interference when the transmitter is turned off
  • Limiter (defeatable) helps protect your hearing from sudden peaks
  • Portable system is quick to load and set up
  • Reduces on-stage audio clutter for better overall mix & less feedback
  • Audio-Technica earphones with proprietary dynamic drivers offer full frequency response and outstanding isolation
  • Personal fit with 3 sizes of rubber eartips plus ear-conforming foam tips
  • Auxiliary input offers connection point for ambient microphone, click track, or other mic- or line-level input

Key Features

  • 104 Selectable UHF channels
  • Up to 10 simultaneous systems per frequency band
  • Adjustable squelch eliminates annoying static
  • Portable system is quick to load and set up
