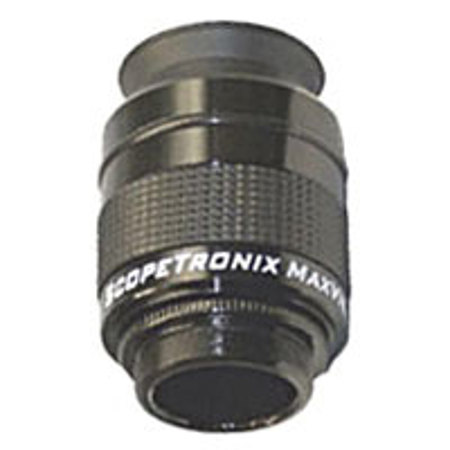

Scopetronix MaxView Digital Camera Eyepieces for Nikon Field Scopes

The MaxView-NF is a special variant of the award winning MaxView 40 product. It has a different focal point and a Nikon Fieldscope threaded mount to work specifically with the Fieldscope spotting scopes. The MaxView-NF is a wide field eyepiece that uses a special cell and long eye relief to reduce vignetting to a minimum, its built in "T" thread allows it to be adapted to dozens of digital cameras. The MaxView is not a zoom eyepiece, instead it is designed to get the most from the zoom on your camera. This gives much better results than trying to shoot through a zoom eyepiece and gives you a much larger zoom range. The MaxView-NF is "T" threaded on top so you will need the appropriate Attachment Kit to mount it to your camera. MaxView-NF can also be used as a low power wide field eyepiece providing a field of view a full 50% wider than the 20-60 zoom at wide angle! A removable flip down rubber eyeguard, and a storage bottle are included.

Note: The MaxView eyepieces are designed to reach "afocal" focus. This is the focal point when the camera has a lens attached as when used with most consumer digital cameras. For use with an SLR type camera (without lens) you will also need the SLR adapter

Specifications: Focal Length = 40mm,
AFOV = 44 Degrees,
Maximum Effective Eye Relief = 29mm (effective eye relief takes into account how deeply recessed the lens is mounted in the housing),
Minimum Effective Eye Relief = Fully Adjustable,
Barrel Size = 1.25",
Thread Size = 42mm (Standard "T" thread),
Coatings = Fully Multicoated (each air to glass surface has multiple anti-reflection coatings),
Optical Design = 2 element/2 group
