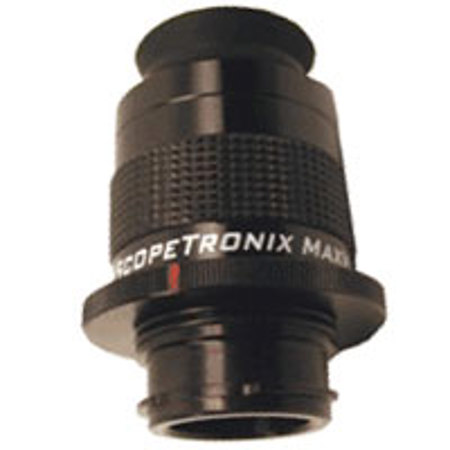

Scopetronix MaxView Digital Camera Eyepieces for Zeiss Spotting Scopes

The MaxView-Z is a special variant of our award winning MaxView 40 product. It has a different focal point and an O-Ring sealed Zeiss twist lock bayonet mount to work specifically with the Zeiss scopes. The MaxView-Z is a wide field eyepiece that uses a special cell and long eye relief to reduce vignetting to a minimum. The MaxViews are not zoom eyepieces, instead they are designed to get the most from the zoom on your camera. This gives much better results than trying to shoot through a zoom eyepiece and gives you a much larger zoom range. The MaxView-Z is "T" threaded on top so you will need the appropriate Attachment Kit to mount it to your camera. Can also be used as a low power wide field eyepiece (with adjustable eye relief), flip down rubber eyeguard and a storage bottle are included.

Note: The MaxView eyepieces are designed to reach "afocal" focus. This is the focal point when the camera has a lens attached as when used with most consumer digital cameras. For use with an SLR type camera (without lens) you will also need the SLR Extension listed below.

Specifications: Focal Length = 40mm, AFOV = 44 Degrees, Maximum Effective Eye Relief = 29mm (effective eye relief takes into account how deeply recessed the lens is mounted in the housing), Minimum Effective Eye Relief = Fully Adjustable, Barrel Size = 1.25", Thread Size = 42mm (Standard "T" thread), Coatings = Fully Multicoated (each air to glass surface has multiple anti-reflection coatings), Optical Design = 2 element/2 group
