Atomos Ninja V Specifications

Display

Display

Jump to...
  • Panel Type

    IPS-Type LCD

  • Display Size

    5.0" (12.7cm)

  • Resolution

    1920 x 1080

  • Aspect Ratio

    '16:9

  • Touchscreen

    Yes

  • Maximum Brightness

    1000 cd/sq. m

  • Bit Depth / Color Support

    8-Bit+FRC (1.07 Billion Colors)

  • HDR Compatibility

    HDR10, Hybrid Log Gamma

  • Pixels Per Inch (ppi)

    423 ppi

  • Color Gamut

    100% Rec. 709

  • Real-Time LUT Monitoring

    SDR

  • Image Controls

    Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra

Inputs / Outputs

Jump to...
  • Video I/O

    1x HDMI 2.0 Input
    1x HDMI 2.0 Output

  • Embedded Audio

    HDMI: 2-Channel
    HDMI: 8-Channel

  • Audio I/O

    1x 1/8" (3.5mm) Mic/Line Input
    1x 1/8" (3.5mm) Headphone Output

  • Built-In Speaker

    None

  • Power I/O

    1x D-Tap Input

  • Other I/O

    1x 2.5 mm (LANC)

  • Media/Memory Card Slot

    Single Slot: SSDmini/SSD with Master Caddy II/III

  • Wi-Fi

    None

  • Bluetooth

    Yes

  • App Compatible

    Yes: iOS Only
    App Name: AtomRemote
    Functionality: Adjust Settings, Remote Control

Format Support

Jump to...
  • Video Format

    HDMI (8/10-Bit 4:2:2)
    DCI 4K: 60/50/30/25/24
    UHD 4K: 60/50/30/25/24
    1080p: 120/60/50/30/25/24
    1080i: 60/50
    720p: 60/50

  • Gamma Curve

    Rec709

  • Video Signal Conversion

    HDMI to SDI
    DCI 4K: 60/50/30/25/24
    UHD 4K: 60/50/30/25/24
    1080p: 120/100/60/50/30/25/24
    1080i: 60/50
    720p: 60/50

Recording

Jump to...
  • Pulldown Conversion

    2:2, 3:2

  • Camera Trigger

    HDMI

  • Pre-Roll Record

    4K: 2 Seconds
    Full HD: 8 Seconds

  • Encoding Formats

    Up to 4097 x 2160
    ProRes 422, HQ, LT, Raw, Raw HQ 8/10-Bit
    DNxHR HQ, HQX, LB, SQ 8/10-Bit

  • Maximum Audio Tracks

    12

  • Metadata Tagging

    10

  • DC Input Power

    5.8 to 7.2 VDC

  • Built-In Battery

    None

  • Battery Type

    1x L-Series

  • Power Consumption

    10 W (Typical)
    22 W (Maximum)

Mounting

Jump to...
  • Mounting

    2x 3/8"-16 Female

Environmental

Jump to...
  • Operating Temperature

    104 Degree F (40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

General

Jump to...
  • Material of Construction

    Aluminum, Polycarbonate

  • Dimensions

    5.9 x 3.6 x 1.2" (151 x 91.5 x 31.5mm)

  • Weight

    12.7 oz (360g)

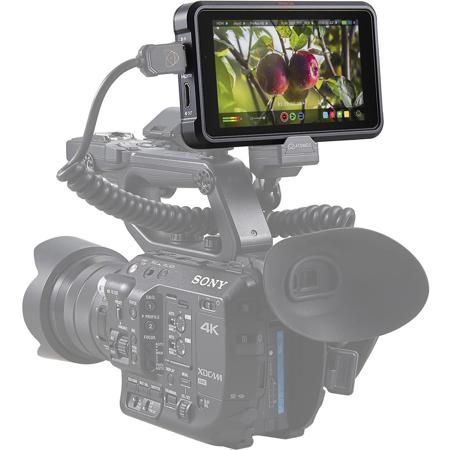

About Atomos Ninja V

A stealthy, 5", 4Kp60 10bit HDR daylight viewable 1000nit portable monitor/recorder. Perfect for Mirrorless, DSLRs and Gaming.

Record like a Ninja!
Record up to 4Kp60 10-bit HDR video direct from your camera's sensor, over HDMI 2.0. Store edit-ready ProRes or DNxHR on affordable SSD drives and bypass your cameras internal compression and record time limits. A tiny 1TB AtomX SSDmini will give you 2.5 hrs of 4K recording.

The SSD... made Mini!
The new AtomX SSDmini is a little over 1/4 inch tall and 3" long. It is also 20% shorter than traditional SSDs, yet keeps the standard SATA III connector. It is backward compatible with previous Atomos drives by adding a clever extension handle. These tiny, slimline SSDs are a true innovation and our close drive partners Angelbird, G-technology and Sony are all making custom versions for your Ninja!

Small Monitor made perfect
The stunningly bright 5.2" 10-bit HDR monitor has an astounding 1,000 nits of output. It's a sleek 1" (2.5cm) aluminum body, is crafted for maximum durability, weighs in at just 11oz and attaches to any camera rig easily.

HDR/SDR perfection every time
The Ninja screen displays a stunning 10+ stops of dynamic range in realtime from Log/ PQ/HLG signals. Clearly see your images in daylight on the near edge-to-edge anti-reflection screen. The display can be calibrated for perfect color accuracy every time, with playout to HDR or SDR TV sets.

Record HDR Games
4kp60 or HDp240 Game Recording just became fun and simple from any HDMI gaming unit. Place the Ninja V in-between your unit and the TV and record for hours to off-the-shelf SSD drives. Auto HDR flags mean perfect TV set up every time! Show off your skills or check your game development on the most stunning video recorder ever built!

AtomOS Tools and Pocket Size Playback
AtomOS gives simple tools for accurate set up and one-touch operation, ensuring a great recording every time. Of course, a recording isn't 100% complete until checked; AtomOS gives speedy playback, slow motion and frame-by-frame analysis for instant review.

Ultimate Pro-Video & Broadcast Monitor
Any production large or small needs high quality viewing. Even if you aren't recording, the Ninja V is the best monitor available today. Audio can be input directly from the camera digitally via HDMI or fed in analogue via a stereo 3.5mm line/mic socket - especially useful for cameras that do not have a mic input.

Edit, finish & upload on Mac & PC
The recorded Ninja files are available immediately on your Mac or PC for editing. Tag while recording on the fly for direct-to-edit look-up with up to six streams, edited directly from the SSD in Final Cut Pro X, Adobe Premiere or Avid Media Composer. Video and gaming workflows are supported for the fastest path to your audience.

Endless Open Expansion
Enhance the Ninja V through the in-built modular expansion slot. Bi-directional high speed video, audio and power are available. Expansion modules will dock onto the battery slot of the unit and offer advanced features.

Atomos Ninja V Features

  • 1920 x 1080p touchscreen display
  • 10-Bit exterior viewable monitor
  • 4K HDMI 2.0 input/output
  • Supports ProRes RAW with select cameras
  • 1000 cd/sq. m brightness
  • AtomHDR mode with 10-stop dynamic range
  • 10-bit 4:2:2 ProRes & DNxHR encoding
  • Records to 2.5" mini or standard SSDs
  • Supports multiple log formats
  • Single Sony L-Series battery slot

Key Features

  • 1920 x 1080p touchscreen display
  • 10-Bit exterior viewable monitor
  • 4K HDMI 2.0 input/output
  • Supports ProRes RAW with select cameras
  • 1000 cd/sq. m brightness
  • AtomHDR mode with 10-stop dynamic range

What's in the box:

  • Atomos Ninja V 5" Full HD Touchscreen Recording Monitor
  • Power Supply
  • Master Caddy II
  • Atomos 1 Year Limited Warranty
