Review Summary
Turntables with MM (moving magnet) and MC (moving coil) cartridges
MM type: 47 kiloohms
MC type: 120 ohms
MM type: 4.5 mV
MC type: 0.28 mV
MM type: 250 mV
MC type: 250 mV
MM type: 35 dB
MC type: 59 dB
MM type: 100 dB
MC type: 74 dB
(20 to 20,000 Hz) MM type: +/-0.5 dB
(20 to 20,000 Hz) MC type: +/-0.5 dB
DC 15 V, 1.2 A
2.5 W
1.85 x 7.78 x 4.94" (47 x 197.5 x 125.5) (Excluding protrusions)
31.4 oz (890g)
4961310154097

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

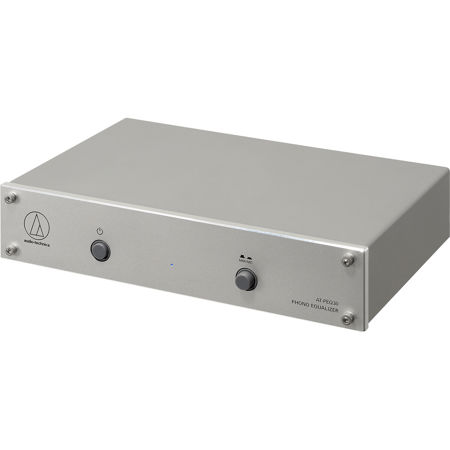

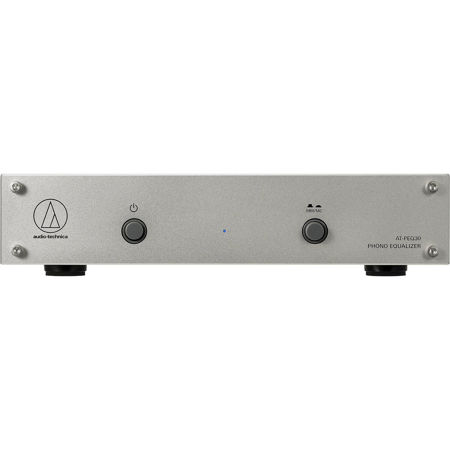

The AT-PEQ30 phono equalizer is designed specifically to add a phono stage to a turntable setup or to upgrade a turntable's built-in phono preamplifier.
It is compatible with turntables with MM (moving magnet) and MC (moving coil) cartridges. The AT-PEQ30 benefits from Audio-Technica's years of analog audio expertise and uses the finest quality parts in a layout that is optimized for low noise and minimum distortion.
Designed for use with: Universal
