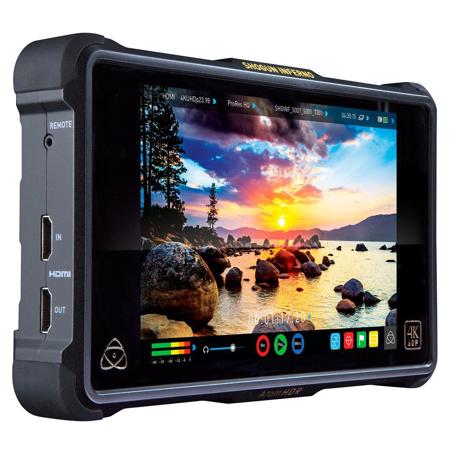

Atomos Shogun Inferno Monitor Recorder, 1920x1200

SKU: ATSHGINFERB

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Q&A

Questions & Answers

Dicky H : What is the total item included in the box? Any accessories?ANDREW R : The listing showing the box contents can be found on the right side of the product page: What's in the box: Atomos Shogun Inferno Unit Custom Yellow HPRC Case Control Cable XLR Breakout Cable 2x NP-F750 5200mAh Battery Fast Battery Charger SATA 3/2 to USB 3/2 HDD/SSD Docking Station DC to D-Tap Coiled Cable 5x Master Caddy II 2x 12V-3A AC Adapter (Fast Charger & DC Power) HDR Sunhood Atomos 1 Year Warranty (3 Year with Product Registration)
Shopper : Why Did You Choose This?COLBY N : Need it for upcoming shoot

Reviews about this item

Review Summary

2020-06-26T09:03:21

Rated 1 out of 5

Bad Internal Card

As of now I am giving this item a one. Mainly because I've had it for 6 months but only used for roughly 1 hr total. Unfortunately two days ago during pre-test for a video shoot the unit crashed. Crash occurred during an attempt to capture ProRes RAW. When switched back to ProRes HQ the unit just went black. Attempted a reset but nothing. The light is red but all that get is the fan kicking on every 5 seconds. Like it's trying to boot but can't. Support believes it's an internal card issue. So I'm sending it in and will up the rating if all goes well. For now, jut very disappoint I couldn't use during an actual project.

JASON P.

2020-01-13T15:05:31

Rated 5 out of 5

Highly Recommend

Excellent product. Huge bang for your buck.

Antonio A.

2020-01-13T14:46:40

Rated 5 out of 5

Highly Recommend

Fantastic ext monitor and recorder. I can use it outdoors during the middle of the afternoon without the hood on and see details perfectly.

Antonio A.

2019-06-26T17:46:28

Rated 4 out of 5

Still learning, but so far, we're pleased.

The Inferno does so much that it's really difficult to learn on-the-job. Unfortunately, we needed it for the job we bought it for. It still didn't disappoint. We ordered and paid for overnight delivery (thank you Adorama). We researched the night before and we were able to at least functionally do the shoot with a happy client, which was awesome. However, the Inferno can do SO much more. We're learning between shoots and so far happy with the results. We have a Sony FS700 so we need this for 4K. The options to enhance our footage is certainly a big plus. I don't think anyone would be disappointed.

Elizabeth S.

2019-06-26T08:51:38

Rated 5 out of 5

good so far

This is my 2nd Atomos unit I've owned. I needed to buy it after a client started asking for 4k raw and there's very few options to get this out of my Canon c300 mark II so I went with the Inferno. Prores raw is really an outstanding option. It's not RED, but it's far better than standard prores. I've been using a 7" SmallHD monitor on my camera for some time and this unit is noticeably bigger but not enormous in comparison. I've only shot a few tests with it and not used it on a job yet. But I've used the previous Shogun on an extended shoot and I know what to expect battery wise and otherwise, so I'm prepared. You should certainly expect to have a bunch of batteries with you.

GUS C.

2019-06-16T21:30:03

Rated 5 out of 5

Great Product

Its an awesome combo!

COTRINO U.

2019-06-03T10:04:36

Rated 5 out of 5

I was at first unsure of spending yhid much until it as replaced my focus monitor while doubling as recorder.

Brighter than I ever imagined and so much more versatile and field work friendly.

EDWIN F.

2019-05-15T13:16:31

Rated 5 out of 5

Looks Beautiful

Just got it, haven't used it in the field yet so I'll come back. But it is an amazing piece of equipment. Exceed what I expected honestly. It has some weight to it, so get items that will support hold a nicely weighted monitor.

James J.

2019-04-30T19:47:21

Rated 5 out of 5

strong

GOOD FLEXCIBILITY OF RANGE XLR AUDIO , THOUGH SHINING GLASS .. WHO PUTS SHINING GLASS THESE DAYS ON MONITER TWO BATTERY. WITH POWER SUPPLY WORLD WIDE. DESIGHN IS EVERY THING

GURINDERJIT T.

2019-03-19T03:54:45

Rated 5 out of 5

Starting off with a BANG

This is an amazing piece of equipment...I am a beginner and have a huge learning curve to get through, this is easy to use and has what appears to be an infinite amount of options available. I upgraded the memory card to 1 tara byte, Now, I can run the camera for what seems like forever, without worrying about changing memory cards etc...

Joseph T.

2019-02-17T10:28:03

Rated 5 out of 5

Beautiful monitor/recorder!

This is my favorite monitor, hands down. Works great with my FS5 mk ii, and has been used several times as an SDI recorded. Get a screen protector & cage and you’ll be set for years.

JOSHUA C.

2019-01-11T09:47:45

Rated 2 out of 5

Power Issue on 3rd day of use.

I was out on a shoot with clients, and the DC power input failed on the second day. Luckily I had fully charged batteries. I put the batteries in, and it worked. So the issue is the power input (power board) inside the monitor. This monitor is only a month old. Atomos was really helpful I have yet to call Adorama to see if they would like to solve this issue.

ALLEN C.

2018-11-29T07:53:08

Rated 5 out of 5

Everything I expected and more!

This is the perfect add-on with my FS5! I am now able to excess 10 bit raw, or even 12 bit if I wanted too. Having a lot of fun and would recommend to any professional film maker.

Emory R.

2018-10-13T04:50:16

Rated 4 out of 5

All but one

This is my second Shogun. I love Atomos and the fact they give me a higher bit rate recording and a larger monitor to view. The new dual battery slot is huge plus with this power eater. The ONLY thing I don't like is how much heavier and bulkier it is than the first one. I really don't see why it has 4 SDI inputs. If having only two would keep the weight/bulkiness down I would have loved that.

freddie s.

2018-09-20T08:33:31

Rated 5 out of 5

Will recommend

It took me awhile to figure out how to get back to camera image from the playback. Hitting REC in 'VCR' mode is very counterintuitive for ME. I was able to set up the Shogun with a Tricaster Mini, a JVC GY HM200 .Using a Decimator I was able to connect a SONY NEX FS100u and a GH4. Will recommend

MONIQUE V.

2018-09-10T02:30:37

Rated 4 out of 5

Great Kit Value

We purchased this kit for Post-Production work. Great recorder/monitor with lots of capabilities. Would have been nice to have a SSD drive included in the kit, even if the price has to go up.

RODNEY R.

2018-08-16T16:26:31

Rated 5 out of 5

Excellent Value

This has been a great purchase for me as an owner of a Sony FS700. It has extended the life of that camera and made it easier to use. The image quality of the Inferno is great and the brightness can't be beat. The package comes with all you'll need, except drives of course, including a great case.

Ron M.

2018-08-12T14:41:35

Rated 4 out of 5

Great monitor overall.

Really like this monitor a lot. Color LUTS, focus assist, waveform, HDMI and bnc plus 4K recording. Use it as the uncompressed recording from my Sony A7iii. Tends to eat batteries, but you are getting a lot of monitoring options.

FRANCIS V.

2018-07-06T09:07:30

Rated 5 out of 5

Must Have

The Shogun Inferno is an incredible addition to my kit. The larger screen, exposure tools, and recording capabilities have vastly improved my shooting. I've been using with a Sony FS5, Sony A7SII and Sony A6300. It's helped negate the recording limit of the A7SII and A6300 and helped circumvent purchasing tons of SD Cards. Recording directly to an SSD that can be plugged into my computer for immediate editing has also cut down on rendering time. Absolutely recommended.

ROGER I.

2018-06-05T11:37:33

Rated 5 out of 5

A must have for video production.

Doesn't matter what camera you have, or what your scope of work is, this piece of year is a must have. Great monitor and great recorder. Enables you to do some serious stuff!

Ramon Z.

2018-05-31T08:37:35

Rated 4 out of 5

Batteries are good. Matte box is useless.

I love the shogun inferno, but the accessory kit is a lot more crap than I needed. I just wanted batteries and a fast charger and a mount for the camera. But it doesn’t have the mount. Nor does it have an Sdi or hdmi cable. It does, however, have this bulky janky matte box that is impractal and hard to use in almost every situation

DANIEL C.

2018-05-25T19:59:13

Rated 5 out of 5

Excellent monitor and kit

The recorder itself is exceptional and worth the additional functionality it provides like LUT support, anamorphic de-squeezing, etc on cameras that don't have these features. The kit is worth it as well, with a couple batteries, sun hood, cables, etc. Would recommend. Bought a separate screen protector as well to keep it shiny.

Christopher W.

2018-05-21T11:24:20

Rated 5 out of 5

great for recording to get the pores raw going!

great for recording to get the pores raw going! Adorama had a great price with fast shipping and everything works great. Thanks Adorama

BART H.

2018-04-26T13:01:51

Rated 5 out of 5

A great upgrade.

I’m using the Inferno to record ProRes RAW from my FS7. I have the original Shogun as well, and this is a fantastic upgrade! The actual panel is bright and the colors are spectacular. But the additional features, and refinements are especially nice having owned the original. Particularly the dual battery, and the way the Inferno holds the SSD so securely. It also does things which my original Shogun won’t, not the least of which is the ProRes RAW. This is a great upgrade!!!

BRIAN D.

2018-04-23T19:01:02

Rated 5 out of 5

The BEST Piece Of Camera Equipment

I've been drooling over this thing for months and finally pulled the trigger. Needless to say, I am STOKED! Pros: - Hard case and inserts hold everything I need - Very user friendly and easy to use for a Hobbyist - Stores 8 LUTS for previewing (super helpful when it comes to post. - Multiple brands of SSD's that work with the recorder - ProRes RAW supported product Cons: - Plastic seems low quality - Battery power is sub par (use NP-F970's if you want them to last) - Sun hood is a pain to install & take down

Corey N.

2018-04-22T13:23:50

Rated 5 out of 5

A Must Have

Exactly as described. Incredibly bright even outdoors. Paired with our Sony FS700 it allows us to shoot 4K and continuous slow motion. Would recommend

Dan L.

2018-04-16T02:51:14

Rated 5 out of 5

Affordable and Worth It

We were looking for a larger monitor to supplement our Panasonic EVA1, and we were leaning toward Small HD. However, for the price, we ended up getting a beautiful monitor that significantly increased the performance of our camera. There are a lot of hidden costs but to just get started with a clear and useful monitor, this was perfect!

BRENDAN W.

2018-03-27T11:29:58

Rated 5 out of 5

Game changer

I have owned the original Shogun since it came out. I have been using is on my FS5 and upgraded to the RAW option about a year ago. Didn't realize how much I was missing out on until I purchased the inferno.

chris w.

2018-03-20T09:08:27

Rated 4 out of 5

Great recorder & value

The atomos shogun presents a great recorder at a compelling price (with not having to purchase features separately via software unlocks like its more expensive competitor). If you camera has an internal recording limit, using this will allow you to bypass such limits. The quality from the recorder is superior to internally recorded footage on many cameras - particularly if the camera can output RAW. Recording RAW to ProRes produces files with a lot of latitude but still easy to work with. Cinema DNG is more tedious to work with (still sequences). The recorder is fragile though and not at all weather-sealed. One of mine broke from a camera guy dropping it from 4 feet up. It is fairly bulky as well, which can be cumbersome when using it with dSLR/mirrorless still cameras. I wish they would come out with a smaller screen version (with a display the size of a large smart phone) for smaller cameras.

Christopher G.

2018-01-31T18:18:50

Rated 5 out of 5

Love it

Beautiful piece of tech and great accessory kit.

Matt R.

Atomos SHOGUN INFERNO Specifications

Touchscreen

Touchscreen

Jump to...
  • Size

    7.1"

  • Resolution

    1920 x 1200

  • PPI

    325

  • Aspect ratio

    16:9 native

  • Color Gamut

    REC709 HDTV

  • Look up table (LUT) support

    3D LUT (.cube format)

  • Anamorphic de-squeeze

    2x, 1.5x, 1.33x, Panasonic 8:3

  • Technology

    SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

  • AtomHDR

    Yes

  • Supported Log formats

    Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm

  • Supported Gamuts

    Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema / BT2020 / DCI P3 / DCI P3+, Panasonic V Gamut, Arri Alexa Wide Gamut

  • Bit depth

    10-bit (8+2 FRC)

  • Brightness

    1500nit (+/- 10% at center)

  • HDR input (PQ/HLG)

    Yes / Yes

  • HDR output (PQ/HLG)

    Yes / Yes

Video Input/Loop Out

Jump to...
  • HDMI

    1 x HDMI (2.0)

  • SDI

    Quad link 4 x 3G SDI or up to 12G single link SDI

  • Signal

    Uncompressed true 10-bit or 8-bit 422 (camera dependent)

Video Output (Play Out)

Jump to...
  • HDMI

    1 x HDMI (2.0)

  • SDI

    1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G

  • Signal

    Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

Supported Loop Out Formats

Jump to...
  • HDMI to HDMI

    720p 50/60, 1080i 50/60
    1080p 24/25/30/50/60/100/120/200/240
    2160p 24/25/30/50/60

  • SDI to SDI

    720p 50/60, 1080i 50/60
    1080pSF 24/25/30
    1080p 24/25/30/50/60/100/120/200/240
    2160p 24/25/30/50/60

Video Signal Conversion

Jump to...
  • HDMI to SDI

    720p 50/60, 1080i 50/60
    1080p 24/25/30/50/60/100/120/200/240
    2160p 24/25/30/50/60

  • SDI to HDMI

    720p 50/60, 1080i 50/60
    1080p 24/25/30/50/60/100/120/200/240
    2160p 24/25/30/50/60

Supported Codecs & FPS (Record/Playback)

Jump to...
  • Raw to CDNG (Record only)

    Codecs
    Cinema DNG for supported cameras (Sony FS5/FS7/ FS700, Canon C300MKII, C500, Panasonic VariCam RAW)

    Frame rates
    4K DCI / 4K UHD; 24/25/30p
    2K / 1080p; 24/SF24/25/SF25/30/SF30/50/60/100/120p

  • Raw to ProRes / DNxHR

    Codecs
    Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB

    Frame rates
    4K DCI/4K UHD; 24/25/30/50/60p
    2K/1080p; 24/SF24/25/SF25/30/SF30/50/60/100/120/200/240p

  • Video to ProRes / DNxHR

    Codecs
    Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB

    Frame rates
    4K DCI / 4K UHD; 24/25/30/50/60p
    2K / 1080p; 24/SF24/25/SF25/30/SF30/50/60/100/120/200/240p
    1080i; 50/60i
    720p; 50/60p

Supported Codecs & FPS

Jump to...
  • Panasonic EVA1 5.7k Raw Camera

    - Frame rates supported: 23.98/24/25/29.97/30
    - Recording is supported for ProRes RAW only

  • Panasonic EVA1 5.7k Raw Playback

    - When playing a movie recorded with AtomHDR monitoring enabled all HDR settings will be automatically restored to match the settings when recording was started
    - Select the "Auto HDR" button to enable this feature.

Onboard Processing

Jump to...
  • Pulldown removal

    24/25/30pSF > 24/25/30p (2:2 pulldown)
    60i > 24p (3:2 pulldown)

  • 4K UHD downscale for HD monitoring

    Yes - Loop-out and playback (Not available in RAW)

Audio In/Out (48kHz PCM Audio)

Jump to...
  • HDMI

    2 or 8ch 24-bit, camera dependent

  • SDI

    12ch 48kHz 24-bit

  • Audio

    2ch balanced XLR analog in/out
    Dynamic range >90dB
    Max signal level +24dBu
    Max analog gain +52dB
    48V Phantom Power for Mic

Remote Start/Stop

Jump to...
  • HDMI

    Auto HDMI Trigger
    Supported Protocols - Canon, Sony, Atomos Open Standard

  • SDI

    SDI trigger camera selectable

  • Other

    LANC control - Slave

Playback

Jump to...
  • Playlist / Genlock / LTC

    Yes / Yes / Yes

  • CDNG (Recorded content)

    No support

  • ProRes (Recorded content)

    All recorded files can playback. Playback in slow motion >= 100fps

  • DNxHR / DNxHD (recorded content)

    All recorded files can playback. Playback in slow motion >= 100fps

Recording

Jump to...
  • Pre-roll record

    Yes (HD 8s, 4K 2s)

  • Custom timelapse

    Yes

  • Meta data tagging

    Yes (10 tags available)

  • Supported media

    2.5" SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives

  • Master caddy dock

    2.5" SATA to USB 2.0/3.0

  • Supported applications

    Supported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+ EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015

  • XML support

    FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools

  • Operating power

    10 - 33W

  • Compatible batteries

    NP-F series and supporting accessories

  • Input voltage (battery)

    6.2V to 16.8V

  • Battery time (based on 2 x 7.4V)

    5200mAh - up to 1.5hrs (monitor & record 4K 30p)
    7800mAh - up to 2.2hrs (monitor & record 4K 30p)

  • DC In

    1 x DC in (6.2 - 16.8V)

  • Continuous power

    Primary-secondary battery system
    Change batteries without losing power
    Loop batteries continuously

General

Jump to...
  • Construction

    High quality lightweight ABS Polycarbonate for durability & portability
    Built-in armor protection

  • Dimensions (WxHxD)

    8.4 x 5 x 1.8" (21.34 x 12.70 x 4.57cm)

  • Weight

    Without batteries & media: 25.0 oz (708.74g)
    With stand: 40.7 oz (1153.82g)

  • UPC Code

    814164020718

About Atomos SHOGUN INFERNO

PRO REVIEW by Prince McClinton, Content Creator and Entrepreneur

"The HDR display on this monitor is perfect for getting precise focus even in mid-day. It allows us to preserve the full quality of the visuals, so that we can focus on the actual shoot and rest easy that we're capturing professional grade video. "

Video from camera

Record ProRes RAW

Unlock the true potential of your RAW cinema camera with the Shogun Inferno. Preserve your sensor’s pristine pixels in ProRes RAW at up to 5.7kp30, 4kp120 DCI/UHD and 2kp240 DCI/HD.

Record ProRes RAW
quad

The 7” 1920x1200 1500nit high bright HDR display allows you to see your images with unparalleled accuracy. Nail focus and exposure, even outside in daylight. The AtomHDR panel shows 10+ stops of HDR resolved in real time from RAW/Log/PQ/HLG sources.

Nail focus and exposure
balanced XLR

Portable Playback Deck

The ultimate battery-powered playback deck, review and playout footage anywhere - scrub through, jog frame-by-frame and even watch back in slow motion. Metadata tag footage as you go to mark favorites, rejects and more. Bring your footage into your timeline and immediately filter your tags.

Portable Playback Deck
learn more
How To Capture ProResRAW

How To Capture ProResRAW

How To Edit ProResRAW

How To Edit ProResRAW

What's in the box:

  • Atomos Shogun Inferno
  • XLR Breakout Cable
  • Master Caddy II
  • 2x AC Power Adapter
  • Atomos 4 Year Warranty (1 Year + 3 Year with Registration)
