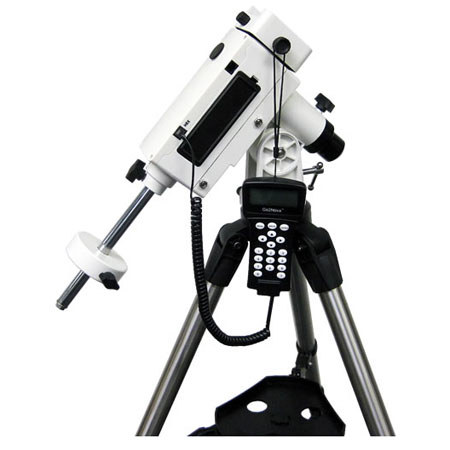

iOptron SmartEQ Pro Portable German Equatorial GOTO Mount
See all iOptron items

iOptron SmartEQ Pro Portable German Equatorial GOTO Mount

SKU: ATSMARTEQP

This item is no longer available.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

GLENN F : Is this the SmartEQ Pro (discontinued) or the SmartEQ Pro+ (~July 2017 release)?ANDREW R : The MFR# corresponds to the SmartEQ Pro+
Shopper : do you know if smarteq pro can be used with 10" Meade LX50. (I do not know exactly its weight: probably betwee 3 and 5 kg)? thank youDANA T : The stated capacity is 12 lbs, I tried loading an 8 lb Orion 127mm Mak and it was shaky beyond use. I use this mount with an SLR and a camera lens, that's about what it's good for. A 10" scope is far beyond it's capacity.JOSEPH R : The limit is about 5kg so it should be fine.IAN F : Sorry I have no experience of that Meade telescope Suggest you ask I Optron They are quite helpful
Shopper : Do your think the iOptron SmartEQ Pro EQ mount can be used with a 6" Ritchey-Chrétien that weights 12.9 lbs ??DANA T : Probably not. I've tried it with my Orion 127 Mak and the 'clutches' slip. The RA and Dec 'clutches' are just small screws that jam into the side of a pipe - nothing rocket science or bulletproof. Also the tripod rigidity is not up to that task. The settle time after a bump (or touching to focus) is about 4-5 seconds.JAMES R : I doubt it. I got it for use with a DSLR so I can't be sure, but I don't think the build quality is good enough to go almost 2 lbs over its rated max. And if you're doing astrophotography forget about it.

Reviews about this item

Review Summary

2017-11-07T12:59:24

Rated 1 out of 5

Poor Directions / No Video / Doesnt work / Loud

This is my first EQ Mount and I got it for my camera. Unfortunately, I cant get it work, and have searched in vain online for video, but cant find anything to address the problems I am having with it. And customer service at Adoroma wont do anything at all to help me, they just told me I need to contact IOptron and if they cant herlp me to return it before the deadline to get my money back. Thats all they said and were willing to do to help me! After getting mine, I have come across many people online that have encountered issues with this mount also, having to send it to IOptron more than once to get it updated, repaired, replaced, etc. Had I known about these issues, I wouldnt have purchased it. It is also very loud when moving, which I wasnt expecting. Super disappointing, was very excited to get it and use it and havent been able to get the scope to work, to get it aligned, or track properly. You get minimal directions with it, have to go online to get the manual, but even downloading the manual, it is not easy to follow because their arent enough photos illustrating what they are talking about! They assume you know how to polar align as an example, which is very frustrating. Their are no photos of how to do that using the scope (my scope wont work even work though.)

Caroline H.

iOptron SmartEQ Pro Portable German Equatorial GOTO Mount Specifications

  • Mount

    German Equatorial Mount

  • Payload

    11 lbs (5kg), exclude counterweight

  • Latitude adjustment range

    0deg. to 65deg.

  • Azimuth adjustment range

    +/- 10deg.

  • Right Ascension worm wheel

    60mm, 120 teeth

  • Declination worm wheel

    60mm, 120 teeth

  • Right Ascension axis shaft

    25mm steel

  • Declination axis shaft

    25mm steel

  • Right Ascension bearing

    42mm

  • Declination bearing

    42mm

  • Motor drive

    DC servo with optical encoder

  • Resolution

    0.5 arc seconds

  • Hand Controller

    Go2Nova 8408 with 50,000 objects database

  • Tracking

    Automatic

  • Speed

    1x,2x,8x,16x,64x,128x,256x,512x,MAX(-4deg./sec)

  • Counterweight shaft

    16mm

  • Counterweight

    2 lbs (0.9kg)

  • Dovetail

    VIXEN

  • Tripod

    1.25" Stainless Steel (5.7lbs or 2.6kg)

  • Polar Scope

    AccuAligning bright field illuminated Standard for SmartEQ Pro, Optional for SmartEQ

  • Power consumption

    0.1A(Tracking), 0.3A(GOTO)

  • Power requirement

    DEC 9 - 12V, 1 amp

  • Battery

    8AA (not included)

  • Serial port

    Yes (on hand controller)

  • Autoguide port

    ST-4 compatible (SmartEQ Pro only)

  • Firmware upgrade

    Yes

  • PC computer control

    Yes (ASCOM)

  • Mount Weight

    6.2 lbs (2.8kg)

  • UPC Code

    6943831500964

2 Accessories for iOptron SmartEQ Pro Portable German Equatorial GOTO Mount

  • All Accessories (2)
  • Cables & Adapters (1)
  • Batteries & Power Supply (1)
iOptron Controller Cable-Connect Gotonova to Mount
iOptron Controller Cable-Connect Gotonova to Mount
$24.00
Recommended
iOptron 12V Car Recharger with Cigarette Type Power Lead
iOptron 12V Car Recharger with Cigarette Type Power Lead
$20.00
Recommended

About iOptron SmartEQ Pro Portable German Equatorial GOTO Mount

The iOptron SmartEQ Pro Portable German Equatorial GOTO Mount is a fully computerized mount with a database of 59,000 objects. It offers the next generation GOTO technology from iOptron. The Go2Nova Hand Controller is intuitive with a large LCD screen, with which you can easily set up your telescope and select where you want to navigate. The SmartEQ Pro is universally compatible with any tubes using a Vixen-style dovetail connection, making it useful for beginners as well as hobbyists with multiple tubes.

iOptron SmartEQ Pro Portable German Equatorial GOTO Mount Features

  • Specialized Grab N' Go mount ideal for visual observer and wide field astro-photographer
  • Portable, compact and sturdy German equatorial mount that is easy to travel with
  • Payload: 11 lbs (5 kg) (excluding counterweight)
  • Mount weight: 6.2 lbs (2.8 kg)
  • Dual-axis servomotor with optical encoder
  • Drive motor with 9-speed setting for precise tracking
  • Resolution: 0.5 arc second
  • Go2Nova 8408 controller with Advanced GOTONOVA GoTo Technology
  • Over 50,,000 celestial objects for easy surfing
  • Low power consumption (8 AA batteries for 16 hours consecutive tracking)
  • Retractable counterweight shaft
  • Vixen-type dovetail saddle
  • Standard 1.25" heavy-duty stainless steel tripod
  • Serial port for firmware upgrade and computer controller
  • Metal wheels and worm shafts
  • ST-4 guiding port
  • AccuAligning bright field polar scope

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Dual-axis servomotor with optical encoder
  • Go2Nova 8408 controller
  • Over 50,,000 celestial objects for easy surfing
  • Low power consumption (8 AA batteries for 16 hours consecutive tracking)
  • Retractable counterweight shaft
  • Vixen-type dovetail saddle

What's in the box:

  • iOptron SmartEQ Telescope Mount
  • Go2Nova Hand Controller
  • 1.25" Stainless Steel Tripod with Accessory Tray
  • 2lbs (0.9 kg) Counterweight
  • Hand Controller Cable
  • Installed Polar Scope for SmartEQ Pro Mount
  • Quick Start Guide
  • iOptron 1 Year Limited Warranty
