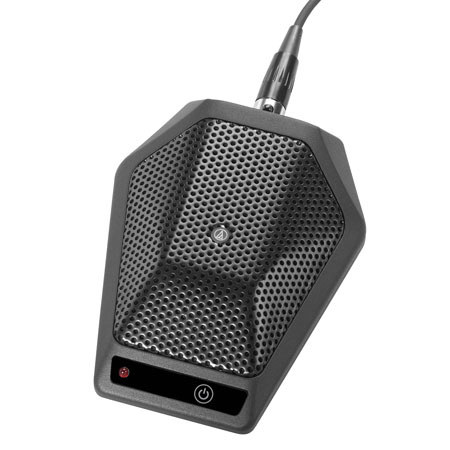

Audio-Technica U891Rx Cardioid Condenser Boundary Microphone with Switch, Black
See all Audio-Technica items

Audio-Technica U891Rx Cardioid Condenser Boundary Microphone with Switch, 30-20000Hz Frequency Response, Black

SKU: ATU891RX

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Audio-Technica U891Rx Specifications

  • Element

    Fixed-charge back plate, permanently polarized condenser

  • Polar Pattern

    Half-cardioid (cardioid in hemisphere above mounting surface)

  • Frequency Response

    30-20000 Hz

  • Low Frequency Roll-Off

    80 Hz, 18 dB/octave

  • Open Circuit Sensitivity

    -34 dB (19.9 mV) re 1V at 1 Pa

  • Impedance

    200 ohms

  • Maximum Input Sound Level

    130 dB SPL, 1 kHz at 1% T.H.D

  • Dynamic Range (Typical)

    104 dB, 1 kHz at Max SPL

  • Signal-To-Noise Ratio

    68 dB, 1 kHz at 1 Pa

  • Phantom Power Requirements

    11-52V DC, 4 mA typical

  • Switches

    Activation: on/off; Switch function: press on/off, momentary on, momentary off; Flat, roll-off

  • Output Connector

    TB3M-type

  • Cable

    7.6 m (25.0') long, 3.2 mm (0.13") diameter, 2-conductor, shielded cable with TA3F-type and XLRM-type connectors

  • Dimensions

    108x84x23mm / 4.25x3.30x0.90"

  • Weight

    264 g (9.31oz )

  • UPC Code

    042005165865

About Audio-Technica U891Rx

The Audio-Technica U891RX Cardioid Condenser Boundary Microphone (Black) is designed to deliver easy, flexible control in conference and boardroom installations, the versatile U891RX cardioid condenser boundary microphone features an activation switch that can be set to three modes press-on/press-off, press to talk and press to mute.

The phantom-powered microphone is equipped with a unique PivotPoint rotating output connector and an LED status indicator. UniGuard innovations offer unsurpassed immunity from radio frequency interference; interchangeable elements are available in cardioid, hypercardioid and omnidirectional polar patterns; an 80 Hz low-cut UniSteep filter reduces pickup of low-frequency ambient noise. The microphone's heavy die-cast case and silicon foam bottom pads minimize coupling of surface vibration to the microphone. The unit's self-contained electronics eliminate the need for an external power module.

Audio-Technica U891Rx Features

  • Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
  • An activation switch can be set to any of three operating modes: "touch-on/ touch-off," "touch-to-talk" and "touch-to-mute"
  • PivotPoint rotating output connector allows cable to exit from either the rear or the bottom of the microphone
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Small-diameter UniPoint capsule near boundary eliminates phase distortion and delivers clear, high-output performance
  • Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance finish for minimum visibility
  • Improved switch design

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Designed for surface-mount applications
  • Set activation switch to any 3 operating modes
  • Delay and reverb can be used simultaneously in any combination
  • Amp and cabinet simulation
  • Modulation effects
  • Compressor

What's in the box:

  • Audio-Technica U891Rx Cardioid Condenser Boundary Microphone
  • Soft Protective Pouch
  • Audio-Technica 2 Years Limited Warranty
