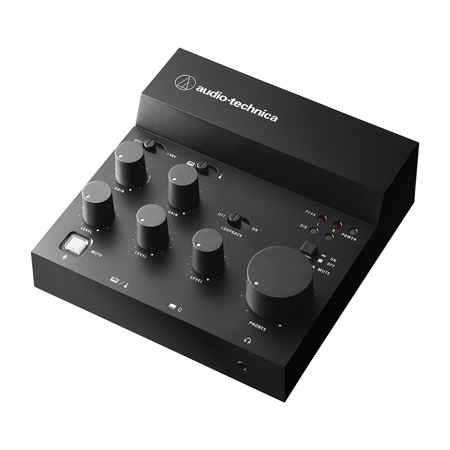

Audio-Technica AT-UMX3 Live Streaming USB Audio Mixer Black

SKU: ATUMX3 MFR: AT-UMX3
$159.00
Earn VIP Reward Points

Key Features

  • Achieve pro sound with this Audio-Technica USB mixer's EQ control for pristine audio.
  • Low noise ensures clean recordings; perfect for streaming, podcasting, or music production.
  • Compact size makes this recording mixer ideal for home studios or on-the-go recording setups.
  • Phantom power supports condenser mics, enhancing vocal and instrument recordings effortlessly.
  • USB interface offers seamless connectivity for live streaming and digital audio workstations.
  • Versatile input channels support guitars, keyboards, and mics for all your recording needs.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$27.99

3 Year

$41.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Audio-Technica AT-UMX3 Specifications

  • Input Terminals

    MIC: XLR/TRS combo jack
    Line (Guitar): 1/4" (6.3mm) standard jack (Hi-Z)
    Line (Keyboard): 1/4" (6.3mm) standard jack, L/MONO and R
    Sub Stereo Input

  • Output Terminals

    Headphone Out: 1/8" (3.5mm) Stereo Mini Jack
    USB Stereo Output

  • USB

    USB 2.0, High Speed

  • Sampling Frequency

    Max. 192 kHz

  • Bit Rate

    16 bit / 24 bit

  • Phantom Power

    +48 V

  • Power Supply

    USB-C bus power: 5 V, 500 mA
    USB-C (power supply only): 5 V, 500 mA

  • Power Consumption

    Max. 2.5 W

  • Frequency Response

    USB input monitor output: +/-1.5 dB (20 Hz to 20 kHz) (with loopback ON, max. USB input level, and medium monitoring volume (at 1 kHz))

  • Supported OS

    Windows: Windows 10, Windows 11
    macOS: macOS Catalina, macOS Big Sur, macOS Monterey, macOS Ventura
    iOS: 16.4.1
    iPad OS: 16.4.1
    Android OS: 10, 11, 12, 13

  • Dimensions (L x W x H)

    5 x 5.2 x 1.7" (127 x 131 x 44mm)

  • Weight

    12 oz (334g)

  • UPC Code

    4961310161361

About Audio-Technica AT-UMX3

How can you elevate your live streaming or podcasting experience The AT-UMX3 Live Streaming USB Audio Mixer, designed as a personal audio mixer, is the ideal tool for streamers and podcasters seeking a straightforward, reliable solution that consistently delivers professional-grade, high-quality results. This user-friendly, plug-and-play mixer enables you to connect your preferred microphone and musical instruments, offering a loopback function for seamless addition of in-game or PC audio directly to your live stream mix.

The compact design and intuitive layout of the AT-UMX3 ensure that comprehensive mix and monitoring controls are always within your reach. The mixer's loopback function allows for effortless live-stream mixing of your in-game or Windows PC/MAC audio. Its USB connectivity offers plug-and-play convenience, enabling direct connection to your Windows PC, Mac, smartphone, or tablet without the need for additional software.

The AT-UMX3 is equipped with a Neutrik XLR/6.3mm combo microphone jack (with 48V phantom power), a switchable Hi-Z (guitar/bass) or stereo input (ex. keyboard), allowing you to connect your favorite instruments and microphones, each with separate mix controls.

The AT-UMX3's controls include a phantom power switch, input peak indicator lamp, gain control knob, level control knob, and a microphone mute button for the microphone. For line/instrument, it has a line input selector switch, gain control knob, and level control knob. The PC loopback features a loopback switch and level control knob. Monitoring controls include a power indicator lamp, output peak indicator lamp, signal indicator lamp, monitor mute, headphone volume knob, and headphone output jack.

The AT-UMX3 is engineered for optimal compatibility with Audio-Technica microphones, featuring a specially designed microphone pre-amp optimized for the Audio-Technica 20 series, ensuring top-notch results every time you go live.

The AT-UMX3 provides maximum control while occupying minimal desk space. Conveniently mute your mic with a single button press, adjust gain, levels, and customize your monitor mix with this compact, ruggedly designed audio mixer. Please note that when used with smartphones or tablets, power must be supplied from an external power supply such as an AC adapter.

Audio-Technica AT-UMX3 Features

  • Compact, feature-rich live streaming USB audio mixer provides high-quality sound for desktop audio production
  • Plug-and-play connectivity to computer or mobile device (no special drivers required)
  • High-performance A/D converter with resolution up to 24-bit/192 kHz provides crystal-clear output for voice and instruments
  • Loopback function makes it easy to mix mic and instrument inputs with background music, game sounds, or other audio input from a computer - and send the stereo mix back to the computer for streaming
  • Equipped with a single mic input (XLR or 1/4"), two LINE inputs for guitar and keyboard, and USB-C input for connecting to a computer
  • The XLR input provides power for condenser microphones, such as the legendary AT2020, and is compatible with all dynamic microphones, such as the AT2040
  • Simple, intuitive controls for independent, real-time volume adjustment of each input
  • Mute button enables quick muting of microphone without disrupting other audio inputs
  • Headphone jack with volume control lets you monitor the mix
  • Microphone monitor mute button allows mic audio to be muted only in the mix sent to connected headphones
  • Advanced noise-resistant design helps deliver clean streaming audio
  • Equipped with output peak, SIG, and power indicator lights

Key Features

  • Achieve pro sound with this Audio-Technica USB mixer's EQ control for pristine audio.
  • Low noise ensures clean recordings; perfect for streaming, podcasting, or music production.
  • Compact size makes this recording mixer ideal for home studios or on-the-go recording setups.
  • Phantom power supports condenser mics, enhancing vocal and instrument recordings effortlessly.
  • USB interface offers seamless connectivity for live streaming and digital audio workstations.
  • Versatile input channels support guitars, keyboards, and mics for all your recording needs.

What's in the box:

  • Audio-Technica AT-UMX3 Live Streaming USB Audio Mixer
  • 4.9' USB Type-C to USB Type-A Cable
  • USB Type-A to USB Type-C Conversion Adapter
  • Audio-Technica 2 Year Limited Warranty
