What makes the VM540ML/H Headshell/Cartridge Combo Kit stand out from other cartridge kits?

The VM540ML/H Headshell/Cartridge Combo Kit features a MicroLine stylus and dual moving magnet cartridge, offering superior sound reproduction, channel separation, and frequency response. It's also premounted on a universal 1/2'-mount headshell for easy installation.

Why does the VM540ML/H Headshell/Cartridge Combo Kit use a MicroLine stylus?

The MicroLine stylus is designed to trace the intricate contours of your vinyl records with unparalleled precision, resulting in a refined and detailed audio experience that surpasses the capabilities of elliptical and conical styli.

Is the VM540ML/H Headshell/Cartridge Combo Kit easy to install?

Yes, the VM540ML/H Headshell/Cartridge Combo Kit comes premounted on a universal 1/2'-mount headshell for easy installation. It arrives fully assembled and pre-aligned, ready to enhance your audio setup right out of the box.

Can the VM540ML/H Headshell/Cartridge Combo Kit be used with different turntable cartridges?

Yes, the VM540ML/H Headshell/Cartridge Combo Kit is compatible with a broad array of 4-pin turntable cartridges, thanks to its 1/2' mount design.

How does the VM540ML/H Headshell/Cartridge Combo Kit impact the longevity of my vinyl records?

The advanced MicroLine stylus design not only enhances playback quality but also promotes longevity by minimizing vinyl wear. This means your records can maintain their quality for longer.

Shopper : Why Did You Choose This?HOWARD B : recommendation

Reviews about this item

Review Summary

2023-04-01T20:00:00

Rated 5 out of 5

Absolutely Incredible!

Used this to upgrade my AT-120X-BT stock cartridge and head shell. The sound quality was noticeable right out of the box, even before being fully broke in. It came already aligned and ready to be used, which made installation a breeze. If your LPs are not clean, this cartridge is so sensitive that it will let you know (be sure to keep them clean!). The bottom line is that this cartridge and head shell are a highly recommended upgrade that makes your turn table sound awesome!

NtDaFkJDT

2021-11-09T13:01:34

Rated 5 out of 5

audio-technical VM540ML/H with headshell

Excellent cartridge! The duel moving magnet stereo cartridge is the way to go. Superior sound! The up grade was definitely worth the money. It came fully assembled and easy to install.

MARK A.

Audio-Technica VM540ML/H Specifications

  • Frequency Response

    20-27,000 Hz

  • Channel Separation

    28 dB (1 kHz)

  • Vertical Tracking Force

    1.8-2.2 g (2.0 g standard)

  • Stylus Construction

    Nude square shank

  • Recommended Load Impedance

    47,000 ohms

  • Output

    4.0 mV (at 1 kHz, 5 cm/sec)

  • Channel Balance

    1.0 dB (1 kHz)

  • Stylus Shape

    2.2 x 0.12 mil MicroLine

  • Cantilever

    Aluminum tapered pipe

  • Mount

    Half-inch

  • Coil Impedance

    2,700 ohms (1 kHz)

  • DC Resistance

    800 ohms

  • Load Capacitance

    100-200 pF

  • Coil Inductance

    460 mH (1 kHz)

  • Static Compliance

    40 x 10-6 cm/dyne

  • Dynamic Compliance

    10 x 10-6 cm/dyne (100 Hz)

  • Vertical Tracking Angle

    23 deg.

  • Dimensions (HxWxD)

    17.3 x 17.0 x 28.2mm (0.68 x 0.67 x 1.11")
    Cartridge & Headshell: 21.3 x 21.0 x 60.4mm (0.84 x 0.83 x 2.38")

  • Weight

    6.4g (0.23 oz)
    Cartridge & Headshell: 16.8g (0.59 oz)

  • UPC Code

    4961310137649

1 Accessories for Audio-Technica VM540ML/H Headshell/Cartridge Combo Kit

  • All Accessories (1)
  • Laptop Stand (1)

About Audio-Technica VM540ML/H

FEATURED REVIEWS

Absolutely Incredible!

By NtDaFkJDT

Used this to upgrade my AT-120X-BT stock cartridge and head shell. The sound quality was noticeable right out of the box, even before being fully broke in. It came already aligned and ready to be used, which made installation a breeze. If your LPs are not clean, this cartridge is so sensitive that it will let you know (be sure to keep them clean!). The bottom line is that this cartridge and head shell are a highly recommended upgrade that makes your turn table sound awesome!

audio-technical VM540ML/H with headshell

By MARK A.

Excellent cartridge! The duel moving magnet stereo cartridge is the way to go. Superior sound! The up grade was definitely worth the money. It came fully assembled and easy to install.

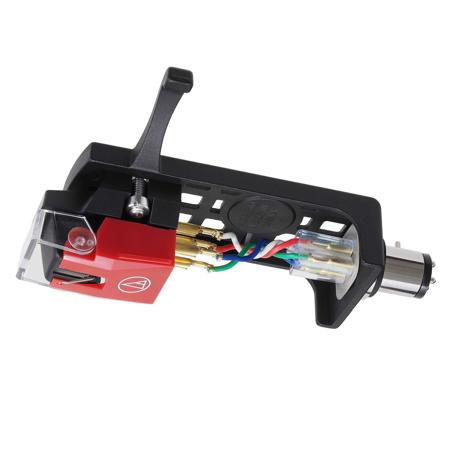

You can elevate your turntable's audio performance with the VM540ML/H Headshell/Cartridge Combo Kit, a top-tier offering from Audio-Technica's esteemed 500 Series. This kit features the VM540ML MicroLine dual moving magnet cartridge, expertly premounted on the AT-HS10BK universal 1/2"-mount headshell for seamless integration with your turntable system.

Drawing inspiration from Audio-Technica's legacy as a pioneer in high-end phono cartridge design, the VM540ML/H combo kit marries the brand's rich heritage with cutting-edge technology. The dual magnets within the VM540ML cartridge are meticulously aligned to mirror the left and right channels in a stereo record's groove, ensuring exceptional channel separation and an expansive frequency response that audiophiles will appreciate.

The cartridge's MicroLine stylus is engineered to trace the intricate contours of your vinyl records with unparalleled precision. This results in a refined and detailed audio experience that surpasses the capabilities of elliptical and conical styli. Moreover, the advanced stylus design not only enhances playback quality but also promotes longevity, both for the stylus itself and your cherished record collection, by minimizing vinyl wear.

Professional, durable, and reliable, the VM540ML/H is a stylish addition to any turntable setup, offering high-quality sound reproduction that brings your vinyl to life. Whether you're a seasoned audiophile or a vinyl enthusiast seeking to upgrade your listening experience, this combo kit stands out as a superior choice. It is compatible with a broad array of 4-pin turntable cartridges, thanks to its 1/2" mount design, and comes from Audio-Technica - a brand synonymous with excellence in the audio industry.

Installation is straightforward, as echoed by user reviews, with the kit arriving fully assembled and pre-aligned, ready to enhance your audio setup right out of the box. Embrace the professional-grade sound and reliable performance of the VM540ML/H Headshell/Cartridge Combo Kit, and discover the full potential of your vinyl collection.

Audio-Technica VM540ML/H Features

  • VM dual magnet cartridge with MicroLine stylus
  • Aluminum cantilever
  • Paratoroidal coils improve generating efficiency
  • Center shield plate between the left and right channels reduces crosstalk
  • Durable low-resonance polymer cartridge housing
  • Universal 1/2"-mount headshell for 4-pin turntable cartridges

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience exceptional sound quality with this Audio-Technica cartridge and headshell combo.
  • Enjoy a simple setup with the universal headshell, compatible with most DJ turntables.
  • Achieve precise tracking with the MicroLine stylus, minimizing record wear and distortion.
  • This durable cartridge delivers a balanced frequency response for accurate audio reproduction.
  • Optimize your turntable's performance with adjustable tracking force for superior playback.
  • Get great value with this complete kit, including all mounting hardware and accessories.

What's in the box:

  • Audio-Technica VM540ML MicroLine Dual Moving Magnet Cartridge
  • AT-HS10BK Universal 1/2 "-Mount Headshell
  • 4x Cartridge Installation Screws (2x 5mm and 2x 10mm)
  • 2x Washers
  • 2x Hexagon Nuts
  • Non-Magnetic Screwdriver
  • Brush
  • Lead Wire Set
  • Audio-Technica 1 Year Limited Warranty
